REAR BRAKE

ZX750P3 NINJA ZX7R 1998 USA CALIFORNIA CANADA

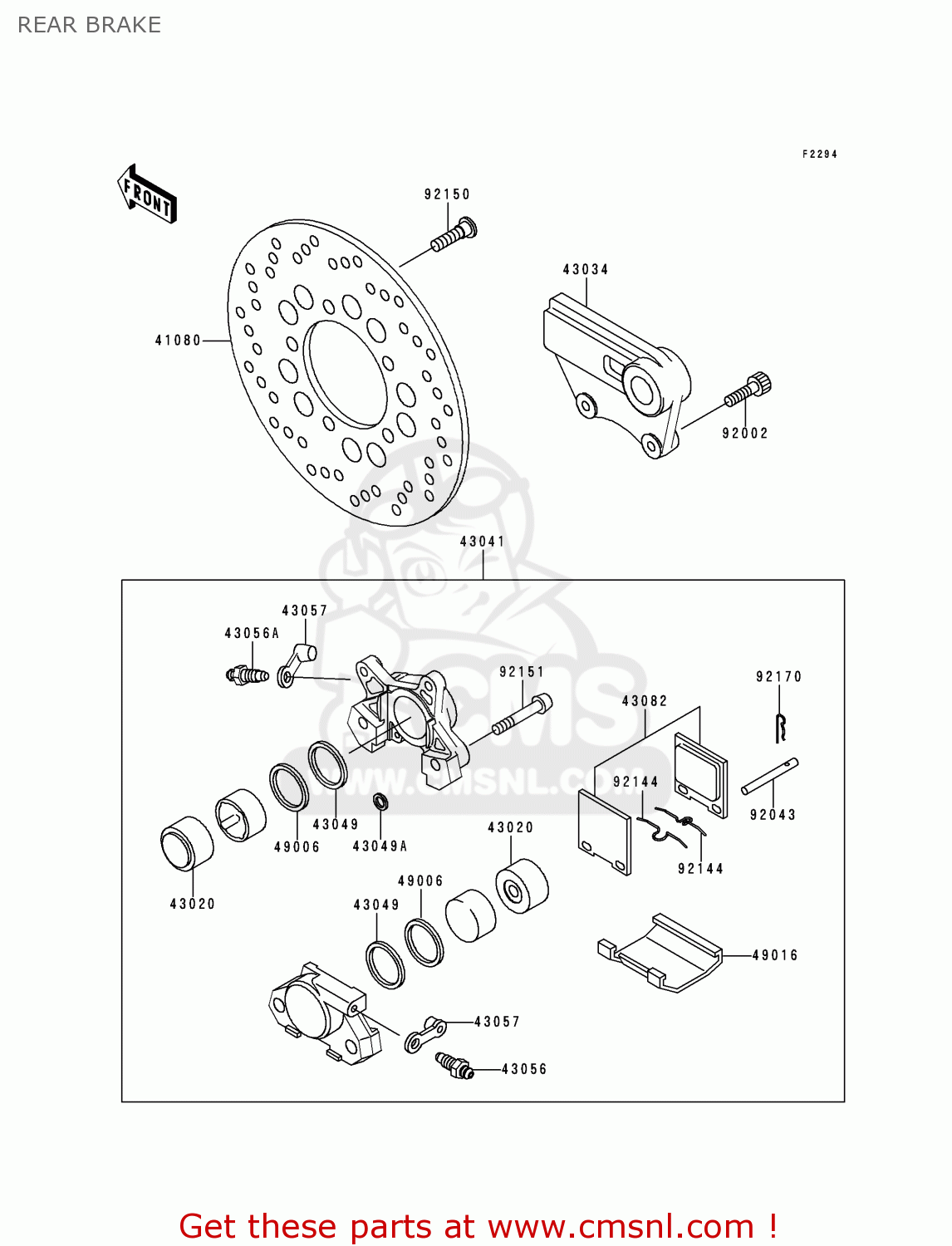

Rear brake diagram ZX750P3 NINJA ZX7R 1998 USA CALIFORNIA CANADA

REAR BRAKE ZX750P3 NINJA ZX7R 1998 USA CALIFORNIA CANADA

REAR BRAKE ZX750P3 NINJA ZX7R 1998 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

41080

410801242FB
ref: 41080

DISC,RR,C.GRAY

€ 179.50

43020

430201111
ref: 43020

PISTON-COMP-BRAKE

€ 53.00

43034

430341137
ref: 43034

HOLDER-BRAKE,REAR CAL

€ 95.50

43041

430411591
ref: 43041

CALIPER-ASSY,RR

€ 393.00

43049

43049001
ref: 43049

RING-PISTON SEAL

€ 7.50

43049A

430491004
ref: 43049A

RING SEAL6.5X11.5X2.2

€ 4.00

43056

43056003
ref: 43056

BREATHER-BRAKE

€ 16.50

43056A

430561054
ref: 43056A

BREATHER-BRAKE

€ 16.50

43057

43057003
ref: 43057

CAP-BREATHER

€ 3.00

43082

430821180
ref: 43082

PAD-ASSY-BRAKE (NAS)

€ 42.50

49006

490061212
ref: 49006

BOOT,PISTON SEAL

€ 15.50

49016

490161145
ref: 49016

COVER-SEAL

€ 11.50

92002

920021442
ref: 92002

BOLT,SOCKET,8X25

€ 3.00

92043

920431522
ref: 92043

PIN

€ 2.50

92144

921441401
ref: 92144

SPRING,PAD

€ 3.50

92150

921501771
ref: 92150

BOLT

€ 3.00

92151

921511106
ref: 92151

BOLT

€ 7.00

92170

921701635
ref: 92170

CLAMP

€ 2.50
