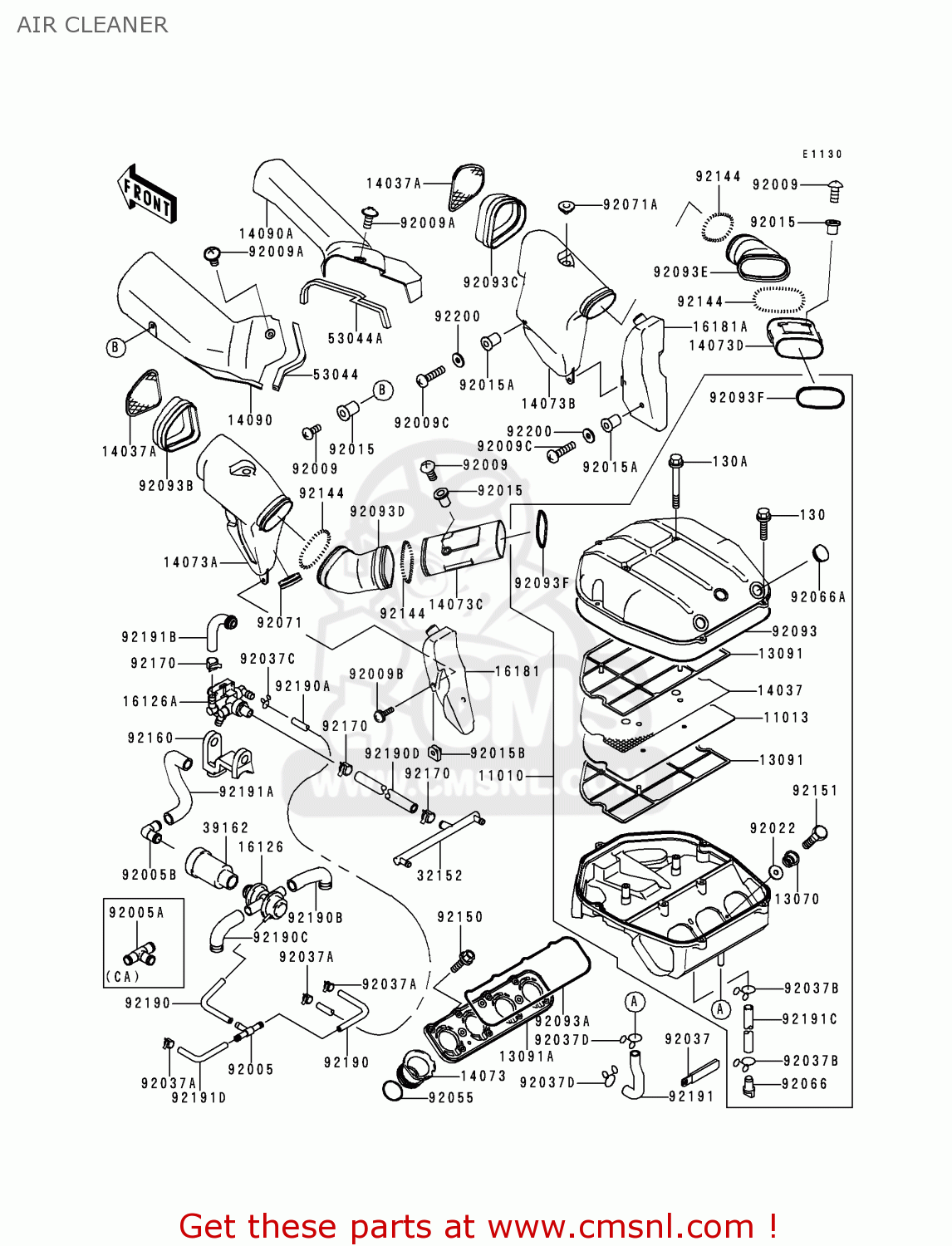

AIR CLEANER

ref

part #

description

quantity

11010

110101563
ref: 11010

FILTER-ASSY-AIR

€ 252.00

11013

110131244
ref: 11013

ELEMENT-AIR FILTER

€ 16.50

13070

130701300
ref: 13070

GUIDE

€ 5.50

13091

130911933
ref: 13091

HOLDER,ELEMENT

€ 17.50

13091A

130911934
ref: 13091A

HOLDER

€ 54.50

14037

140371212
ref: 14037

SCREEN,AIR FILTER

€ 13.00

14037A

140371213
ref: 14037A

SCREEN,FILTER

€ 28.50

14073

140731640
ref: 14073

DUCT

€ 18.50

14073A

140731643
ref: 14073A

DUCT,LH,#1

€ 79.50

14073B

140731644
ref: 14073B

DUCT,RH,#1

€ 76.00

14073C

140731645
ref: 14073C

DUCT,LH,#2

€ 29.00

14073D

140731646
ref: 14073D

DUCT,RH,#2

€ 31.50

14090

140901644
ref: 14090

COVER,LH

€ 24.50

14090A

140901645
ref: 14090A

COVER,RH

€ 24.50

16126

161261104
ref: 16126

VALVE,AIR SWITCH

€ 176.00

16126A

161261305
ref: 16126A

VALVE

€ 117.00

16181

161811085
ref: 16181

TANK-RESONATOR,LH

€ 36.50

16181A

161811086
ref: 16181A

TANK-RESONATOR,RH

€ 34.50

32152

321521042
ref: 32152

PIPE

€ 20.50

39162

391621084
ref: 39162

SILENCER-INTAKE

€ 44.50

53044

530441265
ref: 53044

TRIM,AIR DUCT COVER

€ 8.00

53044A

530441296
ref: 53044A

TRIM

€ 8.00

92005

920051017
ref: 92005

FITTING,TUBE

€ 6.50

92005A

920051252
ref: 92005A
CA

FITTING,T-TYPE

€ 5.50

92005B

920051309
ref: 92005B
CNUS

FITTING

€ 8.00

92009

920091181
ref: 92009

SCREW,6X18

€ 2.00

92009A

920091402
ref: 92009A

SCREW,6X10

€ 1.50

92009B

920091621
ref: 92009B

SCREW

€ 1.50

92009C

920091656
ref: 92009C

SCREW

€ 2.50

92015

920151700A
ref: 92015

NUT

€ 5.50

92015A

920151757A
ref: 92015A

NUT,5MM

€ 5.00

92015B

920151904
ref: 92015B

NUT,CLIP,6MM

€ 4.50

92022

920221557
ref: 92022

WASHER,6.5X20X1.6

€ 1.00

92037

920371069
ref: 92037

CLAMP,L=60

€ 1.50

92037A

920371461
ref: 92037A

CLAMP,TUBE

€ 1.00

92037B

92037147
ref: 92037B

CLAMP,CHAIN OILER

€ 4.50

92037C

920371712
ref: 92037C

CLAMP

€ 3.00

92037D

92037213
ref: 92037D

CLAMP, BREATHER TUBE

€ 2.50

130

130H0625
ref: 130

BOLT-FLANGED,6X25

€ 0.50

130A

130H0670
ref: 130A

BOLT-FLANGED

€ 2.00

92055

920551434
ref: 92055

RING-O,67.7X3.1

€ 6.50

92066

920661211
ref: 92066

PLUG

€ 5.50

92066A

920661389
ref: 92066A

PLUG

€ 2.50

92071

920711013
ref: 92071

GROMMET,AIR CLEANER

€ 4.00

92071A

920711222
ref: 92071A

GROMMET

€ 4.00

92093

920931396
ref: 92093

SEAL,AIR FILTER CASE

€ 9.50

92093A

920931397
ref: 92093A

SEAL

€ 4.50

92093B

920931398
ref: 92093B

SEAL,DUCT,LH

€ 16.50

92093C

920931399
ref: 92093C

SEAL,DUCT,RH

€ 14.00

92093D

920931400
ref: 92093D

SEAL,LH

€ 30.50

92093E

920931401
ref: 92093E

SEAL,RH

€ 27.50

92093F

920931402
ref: 92093F

SEAL,AIR FILTER

€ 11.50

92144

921441563
ref: 92144

SPRING,DUCT

€ 6.50

92150

921501661
ref: 92150

BOLT,5X12

€ 2.50

92151

921511094
ref: 92151

BOLT

€ 2.50

92160

921601666
ref: 92160

DAMPER

€ 10.50

92170

921701118
ref: 92170

CLAMP

€ 5.00

92190

921901091
ref: 92190

TUBE,4X9X220

€ 12.50

92190A

921901405
ref: 92190A

TUBE,L=550

€ 10.50

92190B

921901543
ref: 92190B

TUBE,HEAD COVER-VALVE

€ 7.00

92190C

921901544
ref: 92190C

TUBE

€ 7.00

92190D

921901545
ref: 92190D

TUBE,CARBURETOR-PUMP

€ 3.50

92191

921911024
ref: 92191

TUBE,BREATHER

€ 7.50

92191A

921911025
ref: 92191A

TUBE

€ 10.00

92191B

921911026
ref: 92191B

TUBE,AIR FILTER-VALVE

€ 7.50

92191C

921911028
ref: 92191C

TUBE,7X10X500

€ 7.00

92191D

921911060
ref: 92191D

TUBE

€ 2.00

92200

922001281
ref: 92200

WASHER,5.3X15X1.5

€ 2.00
