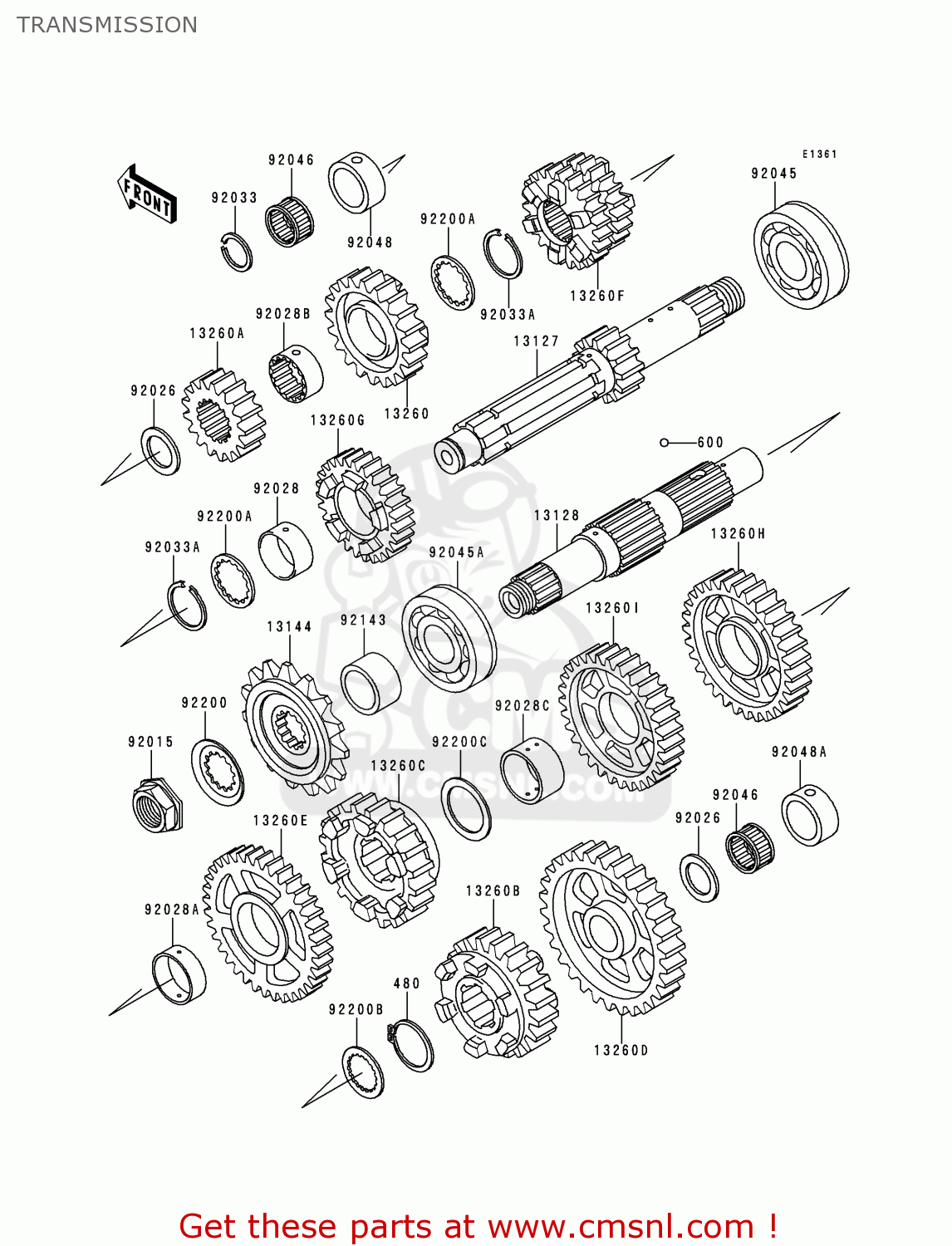

TRANSMISSION

ref

part #

description

quantity

480

480J2900
ref: 480

CIRCLIP

€ 3.50

600

600A0500
ref: 600

BALL-STEEL,5/32

€ 0.50

13127

131271244
ref: 13127

SHAFT-TRANSMISSION IN

€ 253.50

13128

131281208
ref: 13128

SHAFT-TRANSMISSION OU

€ 209.50

13144

131441256
ref: 13144

SPROCKET-OUTPUT,16T

€ 35.50

13260

132601401
ref: 13260

GEAR,INPUT TOP,29T

€ 129.00

13260A

132601526
ref: 13260A

GEAR,INPUT 2ND,18T

€ 149.00

13260B

132601528
ref: 13260B

GEAR,OUTPUT 5TH,33T

€ 129.50

13260C

132601529
ref: 13260C

GEAR,OUTPUT TOP,32T

€ 129.50

13260D

132601538
ref: 13260D

GEAR,OUTPUT LOW,40T

€ 92.50

13260E

132601539
ref: 13260E

GEAR,OUTPUT 2ND,36T

€ 92.50

13260F

132601608
ref: 13260F

GEAR,INPUT 3RD&4TH,21

€ 149.50

13260G

132601609
ref: 13260G

GEAR,INPUT 5TH,27T

€ 149.00

13260H

132601612
ref: 13260H

GEAR,OUTPUT 3RD,34T

€ 114.00

13260I

132601613
ref: 13260I

GEAR,OUTPUT 4TH,32T

€ 142.00

92015

920151963
ref: 92015

NUT,20MM

€ 10.50

92026

920261224
ref: 92026

SPACER,22X35.5X2.1

€ 6.00

92028

920281449
ref: 92028

BUSHING,INPUT 5TH GEA

€ 17.50

92028A

920281707
ref: 92028A

BUSHING

€ 21.50

92028B

920281752
ref: 92028B

BUSHING,INPUT TOP GEA

€ 26.00

92028C

920281753
ref: 92028C

BUSHING,OUTPUT,3RD&4T

€ 28.50

92033

92033025
ref: 92033

CIRCLIP,25MM

€ 3.00

92033A

920331037
ref: 92033A

SNAP RING,25.9X1.2T

€ 3.00

92045

920451224
ref: 92045

BEARING-BALL,6305N2SH

€ 40.00

92045A

920451323
ref: 92045A

BEARING-BALL,5305X

€ 119.50

92046

92046031
ref: 92046

BEARING-NEEDLE,FWF-22

€ 19.50

92048

920481066
ref: 92048

RACE,NEEDLE BEARING

€ 25.50

92048A

920481067
ref: 92048A

RACE,0RZ30X38X17PX1

€ 39.00

92143

921431788
ref: 92143

COLLAR,ENGINE SPROCKE

€ 12.50

92200

922001065
ref: 92200

WASHER

€ 4.50

92200A

922001240
ref: 92200A

WASHER,2ND,3RD,4TH

€ 7.00

92200B

922001277
ref: 92200B

WASHER,TOOTHED,28X30X

€ 8.00

92200C

922001278
ref: 92200C

WASHER,29.9X40X1.5

€ 8.00
