RADIATOR

ZX750P2 NINJA ZX7R 1997 EUROPE UK FR NL AR FG GR IT NR SD SP ST

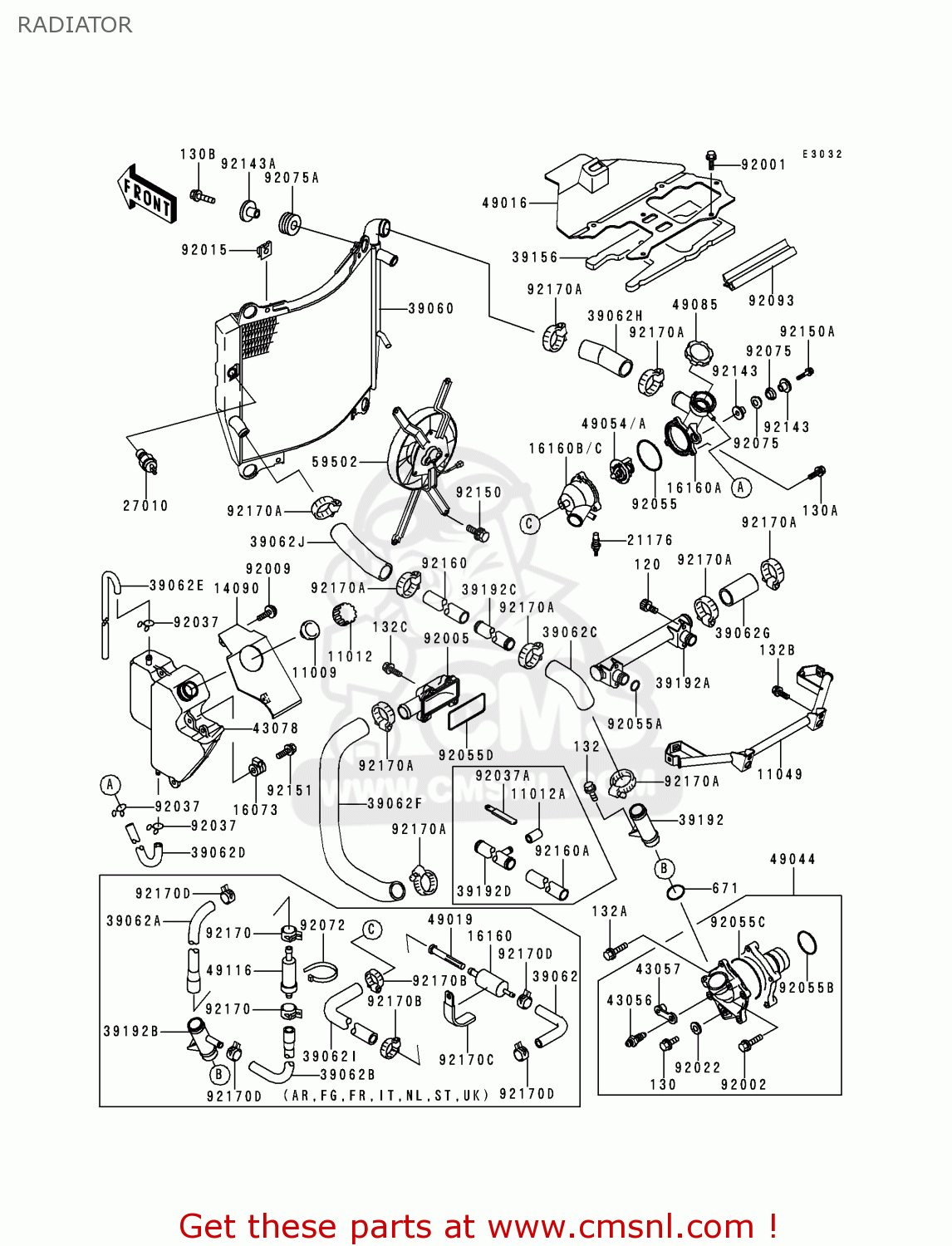

Radiator diagram ZX750P2 NINJA ZX7R 1997 EUROPE UK FR NL AR FG GR IT NR SD SP ST

RADIATOR ZX750P2 NINJA ZX7R 1997 EUROPE UK FR NL AR FG GR IT NR SD SP ST
RADIATOR ZX750P2 NINJA ZX7R 1997 EUROPE UK FR NL AR FG GR IT NR SD SP ST
RADIATOR ZX750P2 NINJA ZX7R 1997 EUROPE UK FR NL AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
11009
110091145
ref: 11009
GASKET,RESERVOIR TANK (NAS)
110091145
€ 1.00
11012
110121084
ref: 11012
CAP
110121084
€ 1.50
11012A
110121985
ref: 11012A
ARFGFRITNLSTUK
CAP
110121985
€ 3.00
11049
110491349
ref: 11049
BRACKET,RADIATOR
110491349
€ 59.00
14090
140901634
ref: 14090
COVER,RESERVOIR
140901634
€ 28.50
16073
160731107
ref: 16073
INSULATOR
160731107
€ 3.00
16160
161601151
ref: 16160
ARFGFRITNLSTUK
BODY,FILTER
161601151
€ 6.50
16160A
161601252
ref: 16160A
BODY,THERMOSTAT CAP
161601252
€ 137.50
16160B
161601253
ref: 16160B
EUGRNRSDSP
BODY,THERMOSTAT CASE
161601253
€ 54.00
16160C
161601254
ref: 16160C
ARFGFRITNLSTUK
BODY,THEROSTAT CASE
161601254
€ 54.00
21176
211761054
ref: 21176
SENSOR,WATER
211761054
€ 49.50
27010
270101202
ref: 27010
SWITCH,FAN
270101202
€ 74.00
39060
390601133
ref: 39060
RADIATOR
€ 653.50
39062
390621308
ref: 39062
ARFGFRITNLSTUK
HOSE-COOLING,CARB-CHE
€ 5.50
39062A
390621383
ref: 39062A
ARFGFRITNLSTUK
HOSE-COOLING,CARBURET
390621383
€ 3.50
39062B
390621386
ref: 39062B
ARFGFRITNLSTUK
HOSE-COOLING
390621386
€ 6.00
39062C
390621472
ref: 39062C
HOSE-COOLING,WATER PU
390621472
€ 17.00
39062D
390621570
ref: 39062D
HOSE-COOLING,OVERFLOW
390621570
€ 7.50
39062E
390621610
ref: 39062E
HOSE-COOLING,DRAIN
390621610
€ 7.50
39062F
390621660
ref: 39062F
HOSE-COOLING,PUMP-CYL
390621660
€ 35.00
39062G
390621663
ref: 39062G
HOSE-COOLING,HEAD-THE
€ 12.00
39062H
390621664
ref: 39062H
HOSE-COOLING,CAP-RADI
390621664
€ 11.50
39062I
390621665
ref: 39062I
ARFGFRITNLSTUK
HOSE-COOLING
390621665
€ 9.50
39062J
390621666
ref: 39062J
HOSE-COOLING,RADIATOR
390621666
€ 13.00
39156
391561516
ref: 39156
PAD,HEAD COVER
€ 12.50
39192
391921041
ref: 39192
EUGRNRSDSP
PIPE-WATER
391921041
€ 23.50
39192A
391921042
ref: 39192A
PIPE-WATER
391921042
€ 80.00
39192B
391921046
ref: 39192B
ARFGFRITNLSTUK
PIPE-WATER
391921046
€ 30.50
39192C
391921047
ref: 39192C
EUGRNRSDSP
PIPE-WATER
391921047
€ 21.50
39192D
391921105
ref: 39192D
ARFGFRITNLSTUK
PIPE-WATER
391921105
€ 18.00
43056
430561051
ref: 43056
BREATHER-BRAKE
430561051
€ 10.00
43057
430571001
ref: 43057
CAP-BREATHER
430571001
€ 3.00
43078
430781150
ref: 43078
RESERVOIR
€ 48.50
49016
490161185
ref: 49016
COVER-SEAL
490161185
€ 30.00
49019
490191068
ref: 49019
ARFGFRITNLSTUK
FILTER-FUEL
490191068
€ 4.00
49044
490441069
ref: 49044
PUMP-WATER
€ 261.50
49054
490541051
ref: 49054
ARFGFRITNLSTUK
THERMOSTAT
490541051
€ 44.50
49054A
490541067
ref: 49054A
EUGRNRSDSP
THERMOSTAT
490541067
€ 46.00
49085
490851067
ref: 49085
CAP-ASSY-PRESSURE
490851067
€ 39.50
49116
491161167
ref: 49116
ARFGFRITNLSTUK
VALVE-ASSY
491161167
€ 88.00
59502
595021114
ref: 59502
FAN-ASSY,RADIATOR
€ 655.00
92001
920011863
ref: 92001
BOLT,6X16
920011863
€ 2.00
92002
920021392
ref: 92002
BOLT,6X22
920021392
€ 3.00
92005
920051316
ref: 92005
FITTING
920051316
€ 20.50
92009
920091436
ref: 92009
SCREW
920091436
€ 2.00
92015
920151487
ref: 92015
NUT
920151487
€ 3.00
92022
920221976
ref: 92022
WASHER,6.2X6.2X1.0
920221976
€ 4.00
92037
92037147
ref: 92037
CLAMP,CHAIN OILER
92037147
€ 4.50
92037A
920371539
ref: 92037A
ARFGFRITNLSTUK
CLAMP,L=45
920371539
€ 3.00
92055
92055112
ref: 92055
O RING, 53.5 M/M
92055112
€ 4.00
92055A
920551282
ref: 92055A
RING-O
920551282
€ 3.00
92055B
920551424
ref: 92055B
RING-O,33.2X2.4
920551424
€ 4.00
92055C
920551495
ref: 92055C
RING-O,WATER PUMP
920551495
€ 8.00
92055D
920551545
ref: 92055D
RING-O
920551545
€ 9.00
92072
920721250
ref: 92072
ARFGFRITNLSTUK
BAND
€ 3.50
92075
920751138
ref: 92075
DAMPER,PILOT LAMP
920751138
€ 2.50
92075A
920751665
ref: 92075A
DAMPER
920751665
€ 5.00
92093
920931276
ref: 92093
SEAL
920931276
€ 8.00
92143
921431057
ref: 92143
COLLAR
921431057
€ 3.00
120
120P0612
ref: 120
BOLT,SOCKET,6X12
120P0612
€ 1.00
130
130C0610
ref: 130
BOLT-FLANGED,6X10,BLA
130C0610
€ 1.50
130A
130J0520
ref: 130A
BOLT-FLANGED
130J0520
€ 2.00
130B
130J0625
ref: 130B
BOLT-FLANGED,6X25
130J0625
€ 2.00
132
132J0612
ref: 132
BOLT-FLANGED-SMALL
132J0612
€ 2.50
132A
132J0645
ref: 132A
BOLT-FLANGED-SMALL
€ 3.00
132B
132J0812
ref: 132B
BOLT-FLANGED-SMALL,8X
132J0812
€ 1.50
132C
132Y0625
ref: 132C
BOLT-FLANGED-SMALL
€ 3.50
671
671B2525
ref: 671
O RING,25MM
671B2525
€ 3.00
92143A
921431063
ref: 92143A
COLLAR
921431063
€ 6.00
92150
921501186
ref: 92150
BOLT
921501186
€ 3.00
92150A
921501829
ref: 92150A
BOLT,6X25
921501829
€ 2.50
92151
921511086
ref: 92151
BOLT,6X30
921511086
€ 2.50
92160
921601297
ref: 92160
EUGRNRSDSP
DAMPER,WATER PIPE
921601297
€ 7.00
92160A
921601796
ref: 92160A
ARFGFRITNLSTUK
DAMPER,WATER PIPE
€ 6.50
92170
921701201
ref: 92170
ARFGFRITNLSTUK
CLAMP
921701201
€ 3.50
92170A
921701284
ref: 92170A
CLAMP,CABLE
921701284
€ 7.50
92170B
921701287
ref: 92170B
ARFGFRITNLSTUK
CLAMP,COOLING HOSE
921701287
€ 5.50
92170C
921701514
ref: 92170C
ARFGFRITNLSTUK
CLAMP
921701514
€ 2.50
92170D
921702042
ref: 92170D
ARFGFRITNLSTUK
CLAMP
921702042
€ 1.00
