Genuine ZX Kawasaki Parts delivered quickly!


ELECTRO BRACKET

ZX750P2 NINJA ZX7R 1997 EUROPE UK FR NL AR FG GR IT NR SD SP ST

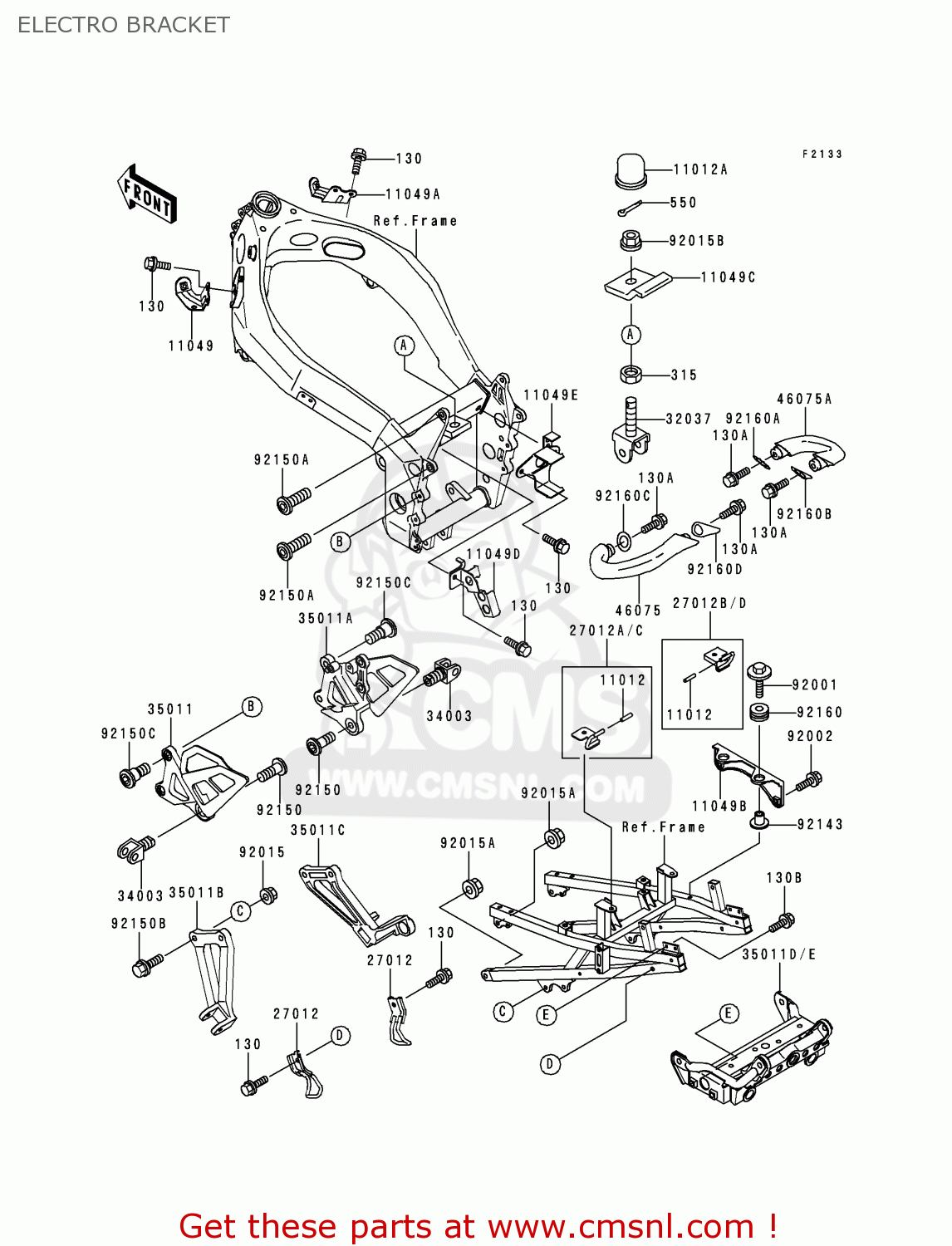

Electro bracket diagram ZX750P2 NINJA ZX7R 1997 EUROPE UK FR NL AR FG GR IT NR SD SP ST

ELECTRO BRACKET ZX750P2 NINJA ZX7R 1997 EUROPE UK FR NL AR FG GR IT NR SD SP ST
ELECTRO BRACKET ZX750P2 NINJA ZX7R 1997 EUROPE UK FR NL AR FG GR IT NR SD SP ST
ELECTRO BRACKET ZX750P2 NINJA ZX7R 1997 EUROPE UK FR NL AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
11012
110121589
ref: 11012
CAP,BUNGEE CORD HOOK
110121589
€ 5.00
11012A
110121844
ref: 11012A
CAP
110121844
€ 6.50
11049
110491335
ref: 11049
BRACKET,RADIATOR,LH
110491335
€ 9.50
11049A
110491336
ref: 11049A
BRACKET,RADIATOR,RH
110491336
€ 9.50
11049B
110491397
ref: 11049B
BRACKET,IGNITER
€ 18.00
11049C
110491398
ref: 11049C
BRACKET,BATTERY CASE,
110491398
€ 9.50
11049D
110491701
ref: 11049D
BRACKET,FUEL FILTER
110491701
€ 12.00
11049E
110491736
ref: 11049E
BRACKET,FUEL PUMP
€ 12.50
27012
270121475
ref: 27012
HOOK,BUNGEE CORD,RR
270121475
€ 11.50
27012C
270121535
ref: 27012C
HOOK,HELMET,LH
€ 7.00
27012D
270121536
ref: 27012D
HOOK,HELMET,RH
€ 7.00
32037
320371564
ref: 32037
BRACKET-SHOCKABSORBER
320371564
€ 28.00
34003
340031327
ref: 34003
HOLDER-STEP,FR,RH
340031327
€ 22.50
35011
350111552
ref: 35011
STAY,FR,LH
350111552
€ 116.00
35011A
350111553
ref: 35011A
STAY,FR,RH
350111553
€ 116.00
35011B
350111554
ref: 35011B
STAY,RR,LH
350111554
€ 119.50
35011C
350111555
ref: 35011C
STAY,RR,RH
350111555
€ 119.50
35011D
350111783
ref: 35011D
STAY,TAIL
€ 100.50
46075
46075112421
ref: 46075
GRIP,RR,LH,F.BLACK
€ 51.00
46075A
46075112521
ref: 46075A
GRIP,RR,RH,F.BLACK
46075112521
€ 51.00
92001
920011776
ref: 92001
BOLT,6X30
920011776
€ 3.00
92002
920021656
ref: 92002
BOLT, 6 X 14
920021656
€ 3.00
92015
920151406
ref: 92015
NUT,8MM
920151406
€ 3.00
92015A
920151415
ref: 92015A
NUT,10MM
920151415
€ 3.00
92015B
920151881
ref: 92015B
NUT,FLANGED,16MM
920151881
€ 16.50
92143
921431353
ref: 92143
COLLAR
921431353
€ 5.50
92150
921501268
ref: 92150
BOLT,10X25
921501268
€ 4.00
92150A
921501295
ref: 92150A
BOLT,10X35
921501295
€ 6.00
92150B
921501455
ref: 92150B
BOLT,FLANGED,8X30
921501455
€ 4.50
92150C
921501839
ref: 92150C
BOLT
921501839
€ 1.50
92160
921601162
ref: 92160
DAMPER
921601162
€ 3.00
92160A
921601732
ref: 92160A
DAMPER,REAR GRIP,LH,F
921601732
€ 3.00
130
130J0616
ref: 130
BOLT-FLANGED,6X16
130J0616
€ 1.50
130A
130J0816
ref: 130A
BOLT-FLANGED,8X16,BLA
130J0816
€ 0.50
130B
130J0820
ref: 130B
BOLT-FLANGED,8X20
130J0820
€ 0.50
315
315B1600
ref: 315
NUT-HEX-FINE,16MM
315B1600
€ 2.50
550
550D4025
ref: 550
PIN,COTTER,4X25
550D4025
€ 0.50
92160B
921601733
ref: 92160B
DAMPER,REAR GRIP,LH,R
921601733
€ 3.00
92160C
921601756
ref: 92160C
DAMPER,REAR GRIP,RH,F
921601756
€ 2.50
92160D
921601757
ref: 92160D
DAMPER,REAR GRIP,RH,R
921601757
€ 2.50
