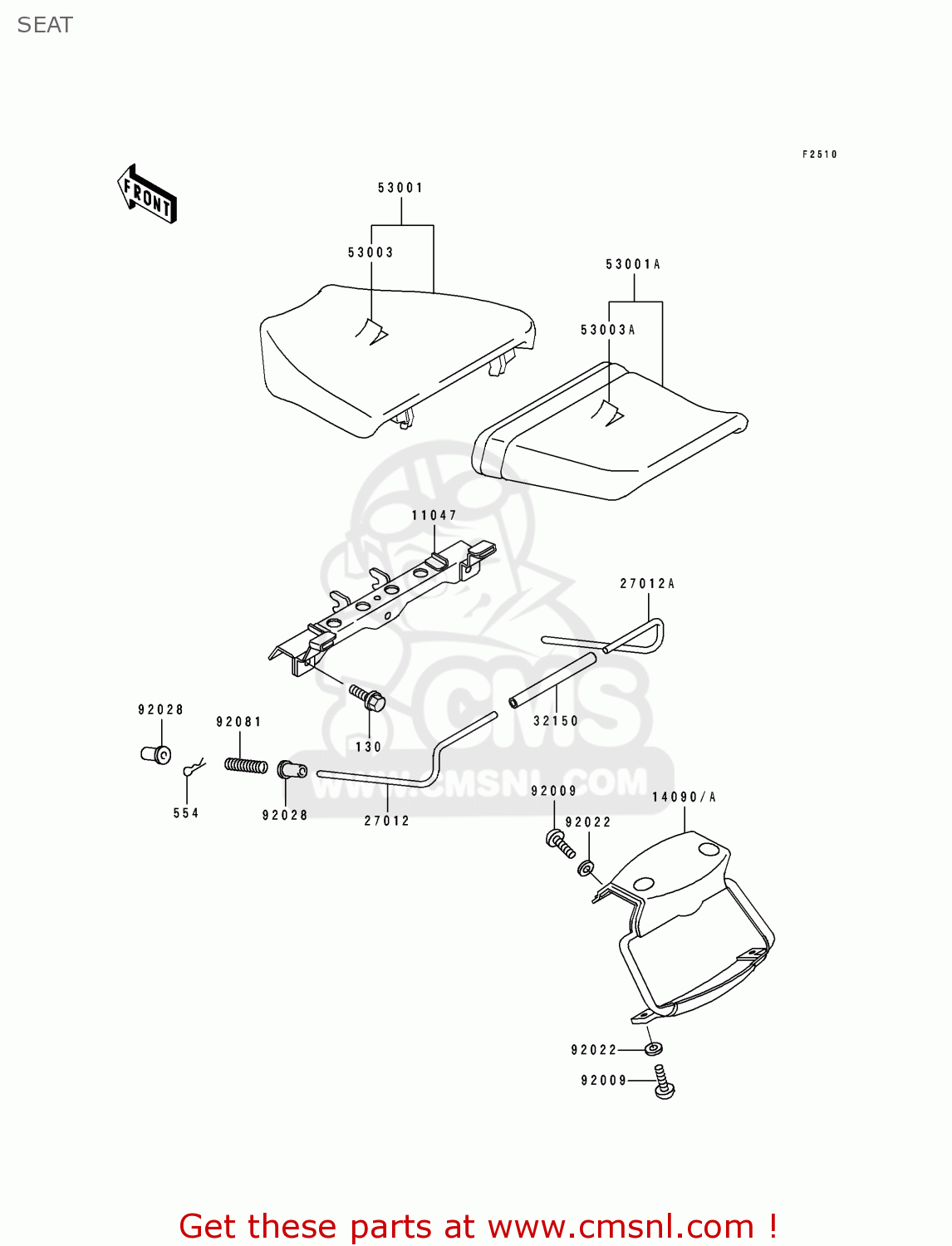

SEAT

ref

part #

description

quantity

130

130H0612
ref: 130

BOLT-FLANGED,6X12

€ 0.50

554

554A0600
ref: 554

PIN-SNAP,SIDE STAND

€ 0.50

11047

110471262
ref: 11047

BRACKET,REAR SEAT,FR

€ 31.50

14090

140901055H3
ref: 14090
CN

COVER,TAIL,C.W.RED

€ 100.00

14090A

140901055SA
ref: 14090A

COVER,TAIL,BLUE/WHITE

€ 100.00

27012

270121434
ref: 27012

HOOK,FRONT SEAT,LH

€ 10.00

27012A

270121435
ref: 27012A

HOOK,FRONT SEAT,RH

€ 10.00

32150

321501415
ref: 32150

PIPE,SEAT LOCK HOOK

€ 4.50

53001

530011627MA
ref: 53001

SEAT-ASSY,FR,BLACK

€ 215.00

53001A

530011657MA
ref: 53001A

SEAT-ASSY,RR,BLACK

€ 237.00

53003

530031244MA
ref: 53003

LEATHER,FRONT SEAT,BL

€ 92.50

53003A

530031245MA
ref: 53003A

LEATHER,REAR SEAT,BLA

€ 71.00

92009

920091656
ref: 92009

SCREW

€ 2.50

92022

920221521
ref: 92022

WASHER,NYLON,5.3X11.5

€ 2.50

92028

920281637
ref: 92028

BUSHING

€ 2.50

92081

920811486
ref: 92081

SPRING,CLUTCH RELEASE

€ 4.00

all assemblies
