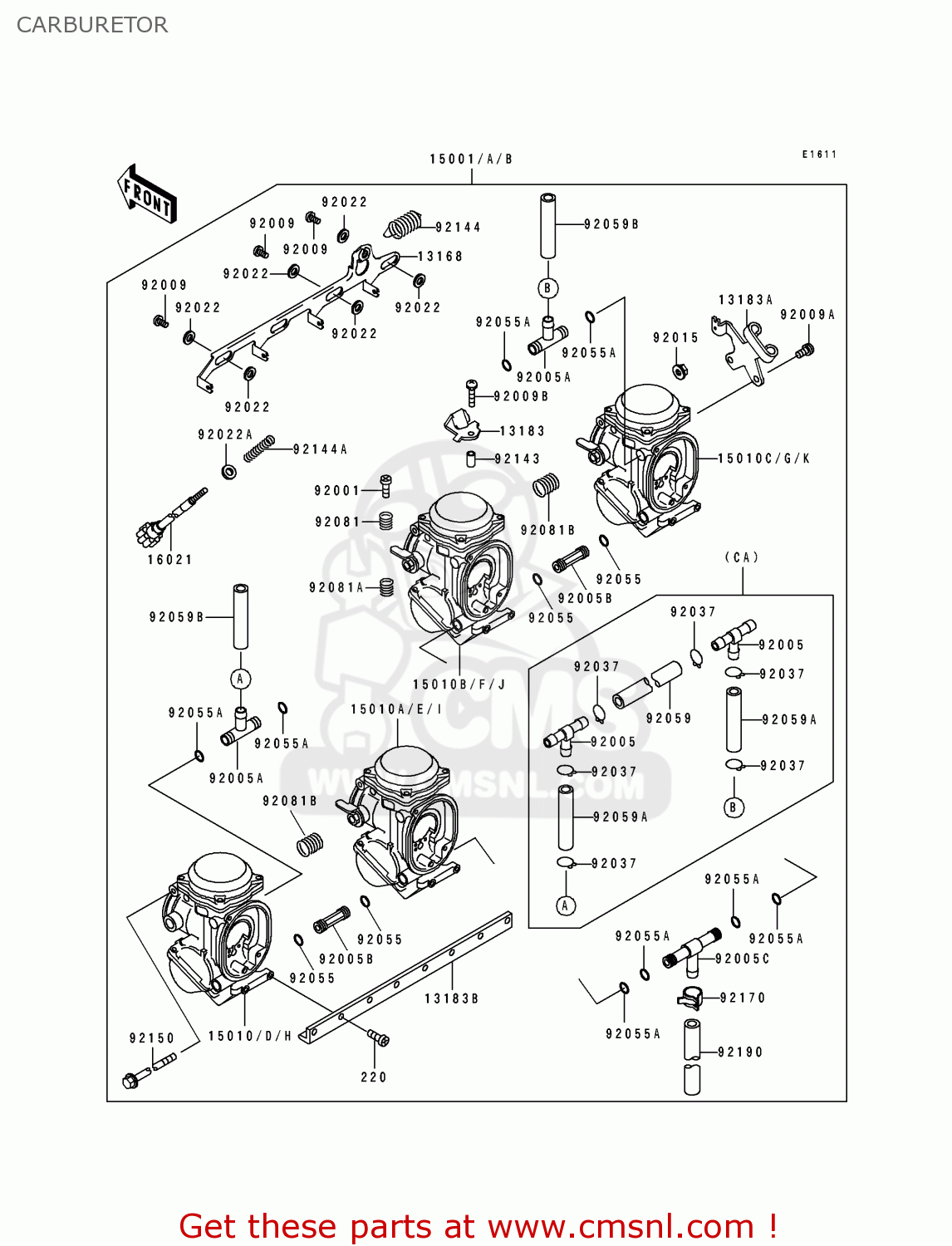

CARBURETOR

ref

part #

description

quantity

13168

131681483
ref: 13168

LEVER,STARTER

€ 78.00

13183

131831592
ref: 13183

PLATE,STARTER CABLE

€ 26.00

13183A

131831610
ref: 13183A

PLATE,THROTTLE CABLE

€ 56.00

13183B

131831727
ref: 13183B

PLATE,CARBURETOR,LWR

€ 47.00

15001

150011693
ref: 15001
US

CARBURETOR ASSEMBLY

€ 1,333.50

15001A

150011719
ref: 15001A
CN

CARBURETOR-ASSY

€ 2,044.00

15001B

150011724
ref: 15001B
CA

CARBURETOR ASSEMBLY

€ 1,246.00

15010

150101233
ref: 15010
US

CARBURETOR,OUTSIDE,LH

€ 372.00

15010A

150101234
ref: 15010A
US

CARBURETOR,INSIDE,LH

€ 372.00

15010B

150101235
ref: 15010B
US

CARBURETOR,INSIDE,RH

€ 372.00

15010C

150101236
ref: 15010C
US

CARBURETOR,OUTSIDE,RH

€ 364.50

15010D

150101237
ref: 15010D
CN

CARBURETOR,LH,OUTSIDE

€ 624.00

15010E

150101238
ref: 15010E
CN

CARBURETOR,LH,INSIDE

€ 624.00

15010F

150101239
ref: 15010F
CN

CARBURETOR,RH,INSIDE

€ 624.00

15010G

150101240
ref: 15010G
CN

CARBURETOR,RH,OUTSIDE

€ 624.00

15010H

150101241
ref: 15010H
CA

CARBURETOR,OUTSIDE,LH

€ 372.00

15010I

150101242
ref: 15010I
CA

CARBURETOR,INSIDE,LH

€ 372.00

15010J

150101243
ref: 15010J
CA

CARBURETOR,INSIDE,RH

€ 372.00

15010K

150101244
ref: 15010K
CA

CARBURETOR,OUTSIDE,RH

€ 372.00

16021

160211145
ref: 16021

SCREW-THROTTLE STOP

€ 77.50

92001

920011998
ref: 92001

BOLT,THROTTLE ADJUST

€ 11.50

92005

920051119
ref: 92005
CA

FITTING,T-TYPE

€ 17.50

92005A

920051125
ref: 92005A

FITTING,T-TYPE

€ 18.00

92005B

920051157
ref: 92005B

FITTING

€ 25.00

92005C

920051190
ref: 92005C

FITTING,T-TYPE

€ 17.50

92009

920091262
ref: 92009

SCREW

€ 4.00

220

220D0514
ref: 220

SCREW-PAN-CROS

€ 2.50

92009A

920091597
ref: 92009A

SCREW

€ 4.50

92009B

920091632
ref: 92009B

SCREW

€ 4.00

92015

920151259
ref: 92015

NUT,FLANGED,5MM

€ 2.50

92022

920221199
ref: 92022

WASHER,6.1X11X0.8,POL

€ 3.00

92022A

920221480
ref: 92022A

WASHER,PLAIN,STOP SPR

€ 3.00

92037

920371194
ref: 92037
CA

CLAMP,TUBE,TAP DIAPRM

€ 4.00

92055

920551004
ref: 92055

O RING

€ 2.50

92055A

920551223
ref: 92055A

RING-O,FUEL FITTING

€ 3.50

92059

920591688
ref: 92059
CA

TUBE

€ 17.00

92059A

920591738
ref: 92059A
CA

TUBE,7X11X45

€ 17.00

92059B

920591975
ref: 92059B
CNUS

TUBE,6.5X9.5X100

€ 5.50

92081

920811620
ref: 92081

SPRING,THROTTLE ADJUS

€ 3.00

92081A

920811621
ref: 92081A

SPRING,THROTTLE ADJUS

€ 3.00

92081B

920811622
ref: 92081B

SPRING,THROTTLE ADJUS

€ 6.50

92143

921431265
ref: 92143

COLLAR,4X5.2X9.6

€ 3.00

92144

921441547
ref: 92144

SPRING,STARTER LEVER

€ 12.50

92144A

921441625
ref: 92144A

SPRING,THROTTLE ADJUS

€ 4.00

92150

921501211
ref: 92150

BOLT,5X305

€ 17.50

92170

921701051
ref: 92170

CLAMP,TUBE

€ 5.50

92190

921901063
ref: 92190

TUBE,7.3X12.5X380

€ 25.00

all assemblies
