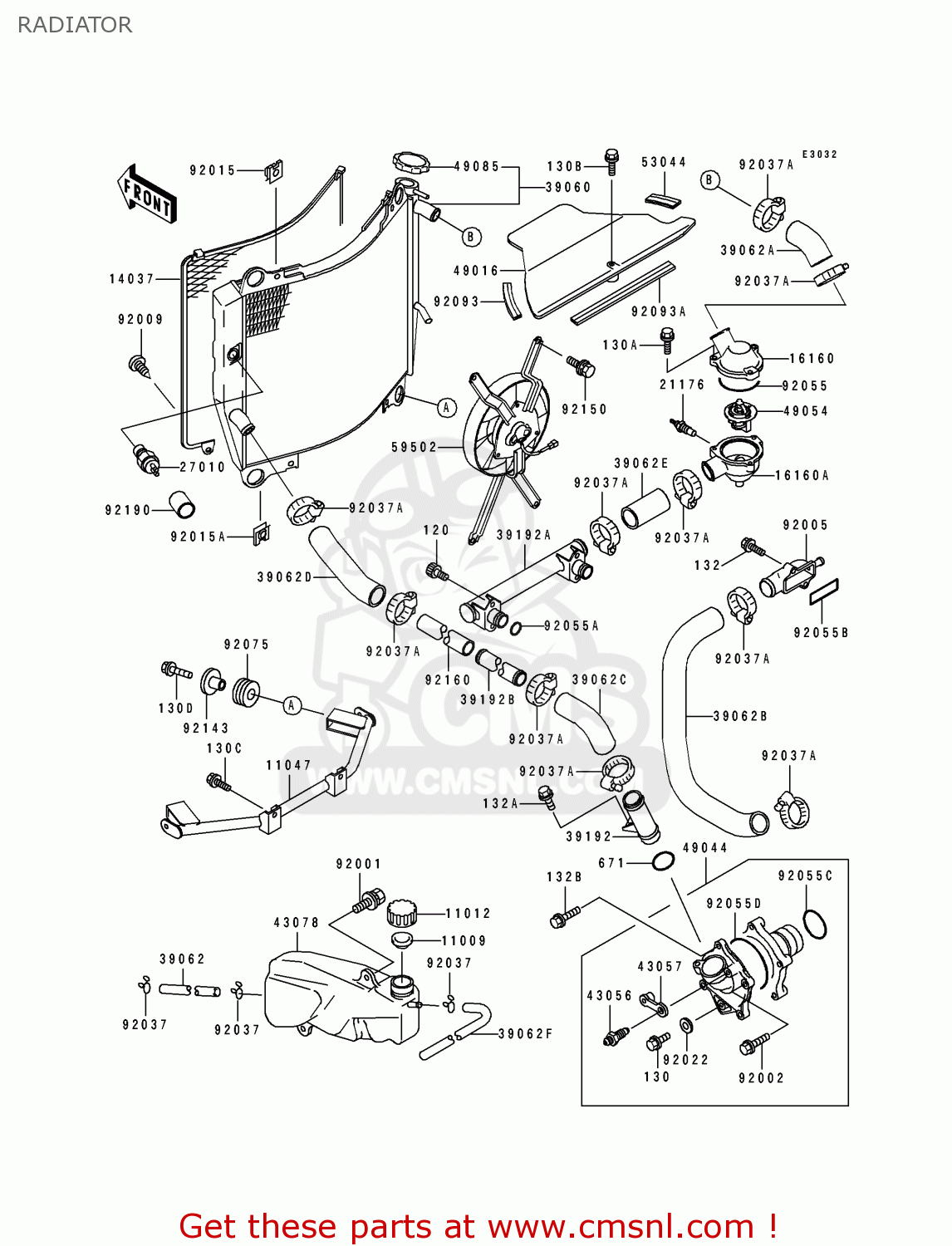

RADIATOR

ref

part #

description

quantity

11009

110091145
ref: 11009

GASKET,RESERVOIR TANK (NAS)

€ 1.00

11012

110121084
ref: 11012

CAP

€ 1.50

11047

110471237
ref: 11047

BRACKET,RADIATOR

€ 42.00

14037

140371138
ref: 14037

SCREEN

€ 51.50

16160

161601175
ref: 16160

BODY,THERMOSTAT,UPP

€ 37.00

16160A

161601176
ref: 16160A

BODY,THERMOSTAT,LWR

€ 37.00

21176

211761054
ref: 21176

SENSOR,WATER

€ 49.50

27010

270101202
ref: 27010

SWITCH,FAN

€ 74.00

39060

390601106
ref: 39060

RADIATOR

€ 576.00

39062

390621142
ref: 39062

HOSE-COOLING

€ 37.50

39062A

390621444
ref: 39062A

HOSE-COOLING

€ 13.50

39062B

390621445
ref: 39062B

HOSE-COOLING,PUMP-CYL

€ 37.50

39062C

390621472
ref: 39062C

HOSE-COOLING,WATER PU

€ 17.00

39062D

390621473
ref: 39062D

HOSE-COOLING,RADIATOR

€ 28.50

39062E

390621489
ref: 39062E

HOSE-COOLING,HEAD-THE

€ 12.00

39062F

390621493
ref: 39062F

HOSE-COOLING,RESERVOI

€ 20.00

39192

391921041
ref: 39192

PIPE-WATER

€ 23.50

39192A

391921042
ref: 39192A

PIPE-WATER

€ 80.00

39192B

391921047
ref: 39192B

PIPE-WATER

€ 21.50

43056

430561051
ref: 43056

BREATHER-BRAKE

€ 10.00

43057

430571001
ref: 43057

CAP-BREATHER

€ 3.00

43078

430781113
ref: 43078

RESERVOIR

€ 35.50

49016

490161156
ref: 49016

COVER-SEAL,HEAT

€ 23.50

49044

490441069
ref: 49044

PUMP-WATER

€ 261.50

49054

490541051
ref: 49054

THERMOSTAT

€ 44.50

49085

490851054
ref: 49085

CAP-ASSY-PRESSURE

€ 39.50

53044

530441220
ref: 53044

TRIM

€ 4.50

59502

595021100
ref: 59502

FAN-ASSY

€ 446.00

92001

920011927
ref: 92001

BOLT,6X16

€ 2.50

92002

920021392
ref: 92002

BOLT,6X22

€ 3.00

92005

920051217
ref: 92005

FITTING

€ 23.00

92009

920091261
ref: 92009

SCREW,TAPPING,6MM

€ 2.00

92015

920151487
ref: 92015

NUT

€ 3.00

92015A

920151758
ref: 92015A

NUT

€ 4.50

92022

920221976
ref: 92022

WASHER,6.2X6.2X1.0

€ 4.00

92037

92037147
ref: 92037

CLAMP,CHAIN OILER

€ 4.50

92037A

920371985
ref: 92037A

CLAMP,COOLING HOSE

€ 7.50

92055

92055112
ref: 92055

O RING, 53.5 M/M

€ 4.00

92055A

920551282
ref: 92055A

RING-O

€ 3.00

92055B

920551402
ref: 92055B

RING-O

€ 5.00

120

120P0612
ref: 120

BOLT,SOCKET,6X12

€ 1.00

130

130C0610
ref: 130

BOLT-FLANGED,6X10,BLA

€ 1.50

130A

130G0520
ref: 130A

BOLT-FLANGED

€ 1.00

130B

130G0640
ref: 130B

BOLT,FLANGED,6X40

€ 0.50

130C

130J0610
ref: 130C

BOLT-FLANGED

€ 1.50

130D

130J0620
ref: 130D

BOLT-FLANGED,6X20

€ 2.50

132

132G0625
ref: 132

BOLT-FLANGED-SMALL

€ 3.00

132A

132J0612
ref: 132A

BOLT-FLANGED-SMALL

€ 2.50

132B

132J0645
ref: 132B

BOLT-FLANGED-SMALL

€ 3.00

671

671B2525
ref: 671

O RING,25MM

€ 3.00

92055C

920551424
ref: 92055C

RING-O,33.2X2.4

€ 4.00

92055D

920551495
ref: 92055D

RING-O,WATER PUMP

€ 8.00

92075

920751665
ref: 92075

DAMPER

€ 5.00

92093

920931276
ref: 92093

SEAL

€ 8.00

92093A

920931327
ref: 92093A

SEAL

€ 15.00

92143

921431063
ref: 92143

COLLAR

€ 6.00

92150

921501186
ref: 92150

BOLT

€ 3.00

92160

921601297
ref: 92160

DAMPER,WATER PIPE

€ 7.00

92190

921901233
ref: 92190

TUBE,SWITCH

€ 2.00
