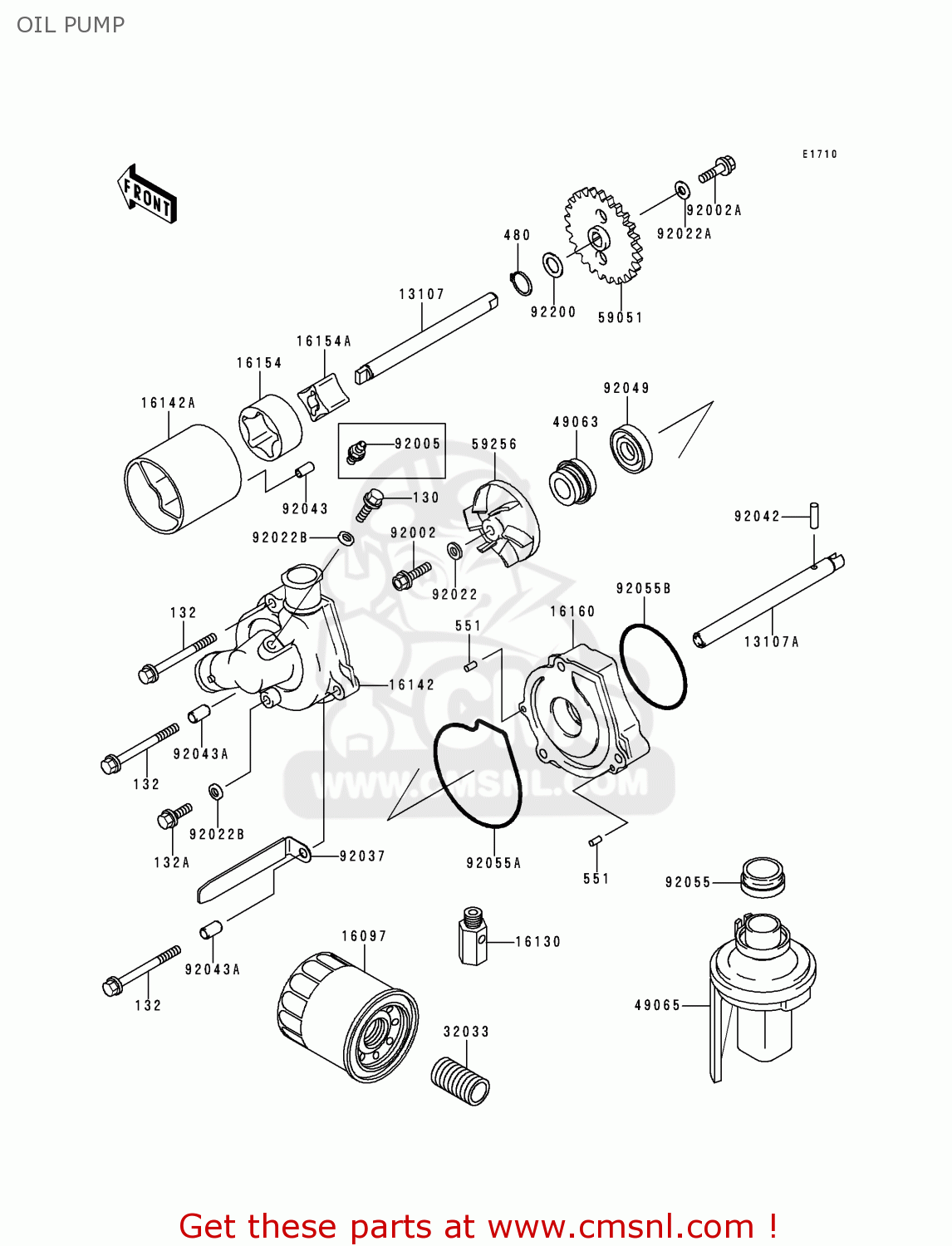

OIL PUMP

ref

part #

description

quantity

130

130J0610
ref: 130
EUGRNRSDSP

BOLT-FLANGED

€ 1.50

132

132J0660
ref: 132

BOLT-FLANGED-SMALL

€ 3.50

132A

132Y0612
ref: 132A

BOLT-FLANGED-SMALL

€ 1.50

480

480J1100
ref: 480

CIRCLIP-TYPE-C,11MM

€ 0.50

551

551A0408
ref: 551

PIN-DOWEL,4X8

€ 0.50

13107

131071333
ref: 13107

SHAFT,PUMP,RH

€ 27.50

13107A

131071334
ref: 13107A

SHAFT,PUMP,LH

€ 27.50

16097

160971063
ref: 16097

FILTER-ASSY-OIL

€ 10.50

16130

161301058
ref: 16130

VALVE-ASSY-RELIEF

€ 30.00

16142

161421132
ref: 16142

COVER-PUMP,WATER

€ 98.50

16142A

161421133
ref: 16142A

COVER-PUMP,OIL

€ 28.00

16154

161541075
ref: 16154

ROTOR-PUMP,OUTER

€ 23.00

16154A

161541076
ref: 16154A

ROTOR-PUMP,INNER

€ 23.00

16160

161601238
ref: 16160

BODY,OIL PUMP

€ 86.50

32033

320331535
ref: 32033

PIPE

€ 9.00

49063

490631002
ref: 49063

SEAL-MECHANICAL,WATER

€ 17.00

49065

490651073
ref: 49065

FILTER-OIL

€ 22.50

59051

590511307
ref: 59051

GEAR-SPUR,33T

€ 35.50

59256

592561073
ref: 59256

IMPELLER

€ 25.50

92002

920021154
ref: 92002

BOLT,6X22

€ 3.00

92002A

920021237
ref: 92002A

BOLT,6X20

€ 2.50

92005

920051273
ref: 92005
ARFGFRITNLSTUK

FITTING

€ 17.00

92022

92022077
ref: 92022

WASHER,6.1X12X1

€ 0.50

92022A

920221827
ref: 92022A

WASHER,6X12.8X1.2

€ 3.00

92022B

92022304
ref: 92022B
ARFGFRITNLSTUK

WASHER,PLAIN

€ 2.50

92022B

92022304
ref: 92022B
EUGRNRSDSP

WASHER,PLAIN

€ 2.50

92037

920371679
ref: 92037

CLAMP

€ 3.50

92042

92042014
ref: 92042

PIN-GEAR CHANGE DRUM

€ 0.50

92043

920431262
ref: 92043

PIN,DOWEL,4.2X6X12

€ 2.50

92043A

920431263
ref: 92043A

PIN,DOWEL,6.2X8X14

€ 0.50

92049

920491336
ref: 92049

SEAL-OIL,OIL PUMP

€ 20.50

92055

920551503
ref: 92055

RING-O,OIL FILTER

€ 6.50

92055A

920551532
ref: 92055A

RING-O,WATER PUMP COV

€ 10.50

92055B

920553018
ref: 92055B

RING-O,59.6X2.4

€ 4.00

92200

922001009
ref: 92200

WASHER

€ 3.00
