CARBURETOR PARTS

ZX600F2 NINJA ZX6R 1996 EUROPE UK FR NL AR FG GR IT NR SD SP ST

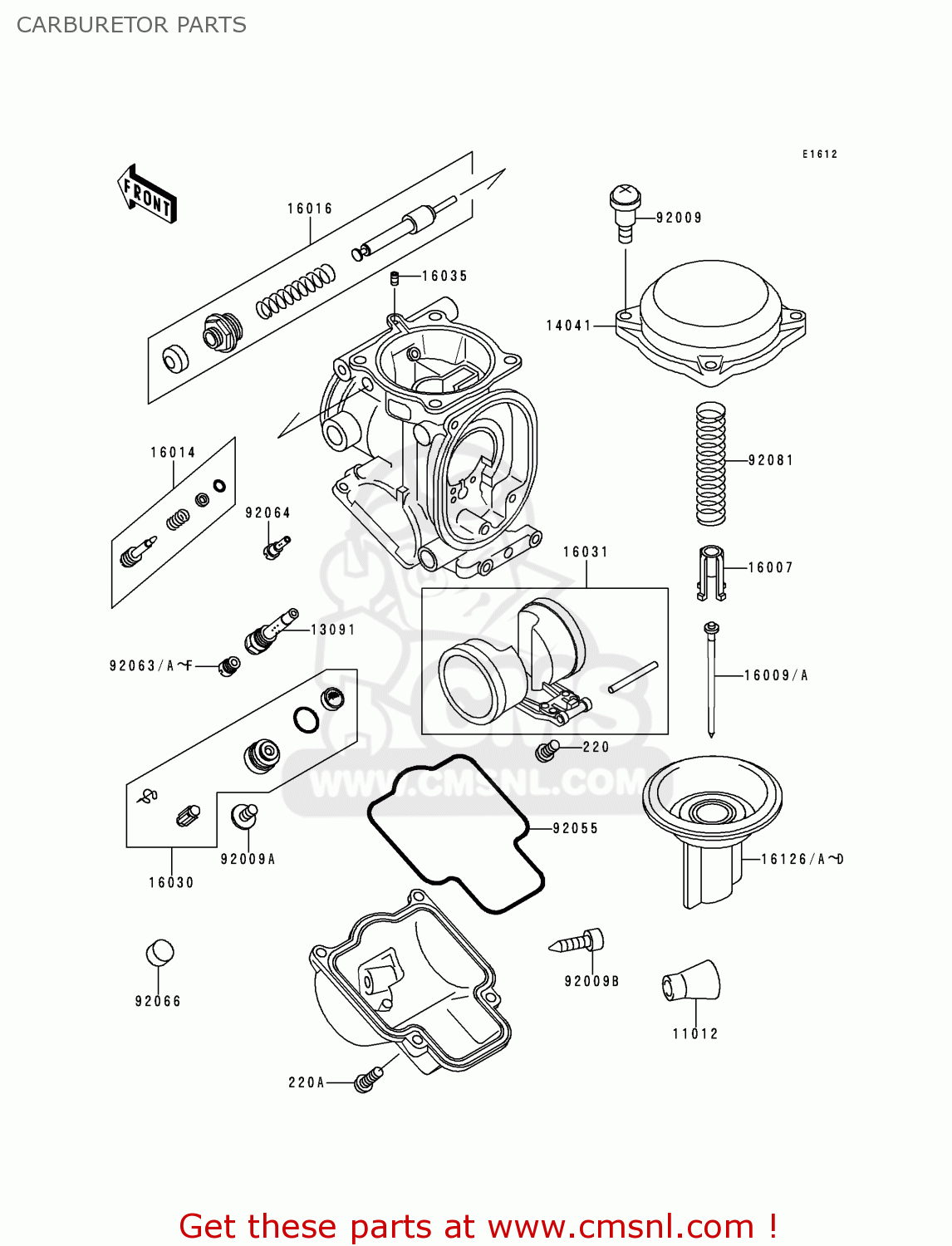

Carburetor parts diagram ZX600F2 NINJA ZX6R 1996 EUROPE UK FR NL AR FG GR IT NR SD SP ST

CARBURETOR PARTS ZX600F2 NINJA ZX6R 1996 EUROPE UK FR NL AR FG GR IT NR SD SP ST
CARBURETOR PARTS ZX600F2 NINJA ZX6R 1996 EUROPE UK FR NL AR FG GR IT NR SD SP ST
CARBURETOR PARTS ZX600F2 NINJA ZX6R 1996 EUROPE UK FR NL AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
11012
110121675
ref: 11012
CAP,DRAIN SCREW
110121675
€ 6.00
13091
130911924
ref: 13091
HOLDER,NEEDLE JET
€ 16.00
14041
140411091
ref: 14041
CAP-CHAMBER,MIXING
140411091
€ 46.00
16007
160071117
ref: 16007
SEAT-SPRING,THROTTLE
160071117
€ 16.50
16009
160091855
ref: 16009
ST
NEEDLE-JET,N1VV
€ 18.50
16009A
160091863
ref: 16009A
AREUFGFRGRITNLNRSDSP
NEEDLE-JET,N1VV
€ 18.50
16014
160141091
ref: 16014
SCREW-PILOT AIR
€ 10.00
16016
160161090
ref: 16016
PLUNGER,STARTER
160161090
€ 46.50
16030
160301083
ref: 16030
VALVE-FLOAT
160301083
€ 44.50
16031
160311080
ref: 16031
FLOAT
160311080
€ 40.50
16035
160351055
ref: 16035
JET-AIR,LEAK
160351055
€ 10.00
16126
161261253
ref: 16126
EUFRGRITNLNRSPUK
VALVE,VACUUM
161261253
€ 152.00
16126A
161261298
ref: 16126A
ST
VALVE,VACUUM
€ 128.50
16126B
161261300
ref: 16126B
AR
VALVE,VACUUM
161261300
€ 122.50
16126C
161261301
ref: 16126C
SD
VALVE,VACUUM
€ 128.50
16126D
161261314
ref: 16126D
FG
VALVE,VACUUM
€ 122.50
92009
920091549
ref: 92009
SCREW,4X4.4
920091549
€ 3.00
92009A
920091550
ref: 92009A
SCREW,4X8
920091550
€ 2.50
92009B
920091551
ref: 92009B
SCREW,DRAIN
920091551
€ 6.50
92055
920551426
ref: 92055
RING-O,FLOAT CHAMBER
920551426
€ 13.00
92063
920631013
ref: 92063
MAIN JET,#140
920631013
€ 9.00
92063A
920631016
ref: 92063A
MAIN JET,#142
920631016
€ 9.00
92063B
920631017
ref: 92063B
MAIN JET,#145
920631017
€ 9.00
92063C
920631324
ref: 92063C
JET-MAIN,#148
920631324
€ 9.00
92063D
920631330
ref: 92063D
JET-MAIN,#150
920631330
€ 9.00
92063E
920631331
ref: 92063E
JET-MAIN,#152
920631331
€ 9.50
92063F
920631332
ref: 92063F
JET-MAIN,#155
920631332
€ 9.50
92064
920641101
ref: 92064
JET-PILOT,#35
920641101
€ 11.50
92066
920661051
ref: 92066
ST
PLUG,PILOT AIR SCREW,
920661051
€ 3.00
220
220D0408
ref: 220
SCREW-PAN-CROS
220D0408
€ 0.50
220A
220D0414
ref: 220A
SCREW-PAN-CROS
220D0414
€ 2.00
92081
920811874
ref: 92081
SPRING,VACUUM VALVE
920811874
€ 17.50
