CRANKCASE

ZX600F2 NINJA ZX6R 1996 EUROPE UK FR NL AR FG GR IT NR SD SP ST

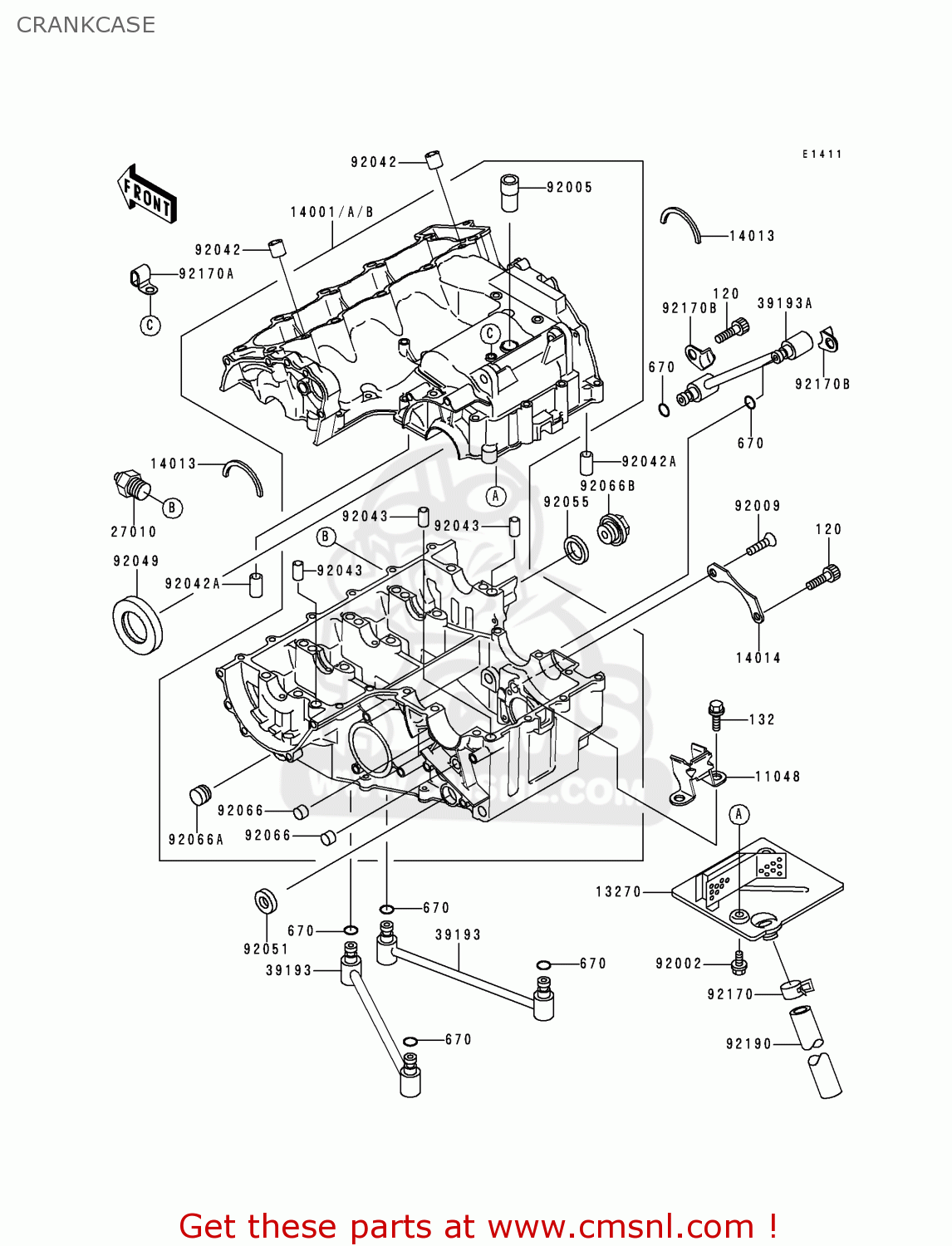

Crankcase diagram ZX600F2 NINJA ZX6R 1996 EUROPE UK FR NL AR FG GR IT NR SD SP ST

CRANKCASE ZX600F2 NINJA ZX6R 1996 EUROPE UK FR NL AR FG GR IT NR SD SP ST
CRANKCASE ZX600F2 NINJA ZX6R 1996 EUROPE UK FR NL AR FG GR IT NR SD SP ST
CRANKCASE ZX600F2 NINJA ZX6R 1996 EUROPE UK FR NL AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
120
120P0616
ref: 120
BOLT,SOCKET,6X16
120P0616
€ 1.50
132
132H0612
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
670
670D1505
ref: 670
O RING
670D1505
€ 2.50
11048
110481851
ref: 11048
BRACKET
€ 3.50
13270
132701349
ref: 13270
PLATE,BREATHER
€ 61.00
14001A
140011210
ref: 14001A
SET-CRANKCASE
€ 1,567.00
14013
14013004
ref: 14013
RING-BEARING SETTING
14013004
€ 7.00
14014
140141123
ref: 14014
PLATE-POSITION
€ 2.50
27010
270101313
ref: 27010
SWITCH,OIL PRESSURE
270101313
€ 28.00
39193
391931019
ref: 39193
PIPE-OIL,MAIN-INPUT
€ 26.00
39193A
391931020
ref: 39193A
PIPE-OIL
€ 26.00
92002
920021449
ref: 92002
BOLT,6X10
920021449
€ 2.50
92005
920051238
ref: 92005
FITTING,BREATHER
920051238
€ 7.50
92009
920091360
ref: 92009
SCREW,6X16
920091360
€ 2.50
92042
92042007
ref: 92042
PIN-DOWEL
92042007
€ 4.00
92042A
92042016
ref: 92042A
PIN,DOWEL,6X16
92042016
€ 3.50
92043
920431506
ref: 92043
PIN
920431506
€ 2.00
92049
920491307
ref: 92049
SEAL-OIL,TC32528
920491307
€ 8.00
92051
92051005A
ref: 92051
OIL SEAL,TB13225.5
92051005A
€ 5.50
92055
920551146
ref: 92055
RING-O
920551146
€ 5.50
92066
920661110
ref: 92066
PLUG
920661110
€ 4.00
92066A
920661252
ref: 92066A
PLUG
920661252
€ 4.00
92066B
920661394
ref: 92066B
PLUG,MAIN GALLERY,18X
920661394
€ 7.00
92170
921701167
ref: 92170
CLAMP
921701167
€ 4.00
92170A
921701514
ref: 92170A
CLAMP
921701514
€ 2.50
92170B
921701578
ref: 92170B
CLAMP
921701578
€ 2.50
92190
921901580
ref: 92190
TUBE,9X12X180
€ 2.50
