TAILLIGHT(S)

ZX600E6 NINJA ZX6 1998 USA CALIFORNIA CANADA

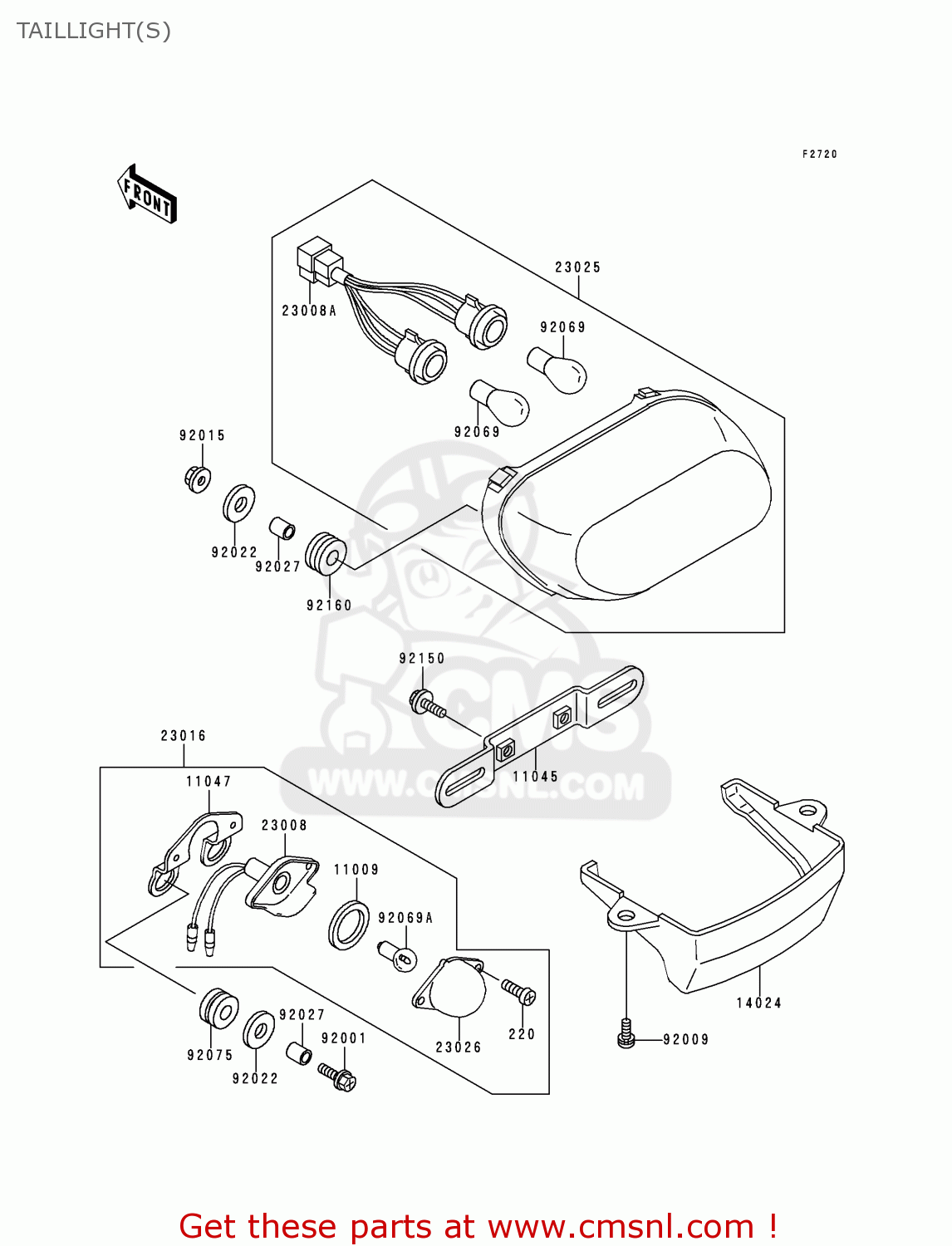

Taillight(s) diagram ZX600E6 NINJA ZX6 1998 USA CALIFORNIA CANADA

TAILLIGHT(S) ZX600E6 NINJA ZX6 1998 USA CALIFORNIA CANADA

TAILLIGHT(S) ZX600E6 NINJA ZX6 1998 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

220

220B0410
ref: 220

SCREW-PAN-CROS

€ 2.00

11009

110091372
ref: 11009

GASKET,LICENSE PLATE (NAS)

€ 3.00

11045

110451387
ref: 11045

BRACKET,LICENSE

€ 11.00

11047

110471889
ref: 11047

BRACKET,LICENSE PLATE

€ 11.50

14024

140241386
ref: 14024

COVER,LICENSE LAMP

€ 11.50

23008

230081221
ref: 23008

SOCKET-ASSY,LICENSE P

€ 7.50

23008A

230081364
ref: 23008A

SOCKET-ASSY,TAIL LAMP

€ 32.50

23016

230161126
ref: 23016

LAMP-ASSY,LICENSE PLA

€ 55.00

23025

230251233
ref: 23025

LAMP-TAIL

€ 192.50

23026

230261054
ref: 23026

LENS,LICENSE PLATE LA

€ 7.00

92001

920011524
ref: 92001

BOLT, 6X25

€ 1.50

92009

920091182
ref: 92009

SCREW,5X12,BLACK

€ 1.50

92015

920151367
ref: 92015

NUT,FLANGED,6MM

€ 0.50

92022

920221557
ref: 92022

WASHER,6.5X20X1.6

€ 1.00

92027

92027162
ref: 92027

COLLAR-REAR FENDER

€ 4.50

92069

92069059
ref: 92069

BULB,12V 32/3CP

€ 5.50

92069A

920691012
ref: 92069A

BULB,12V 8W 4CP

€ 4.50

92075

92075209
ref: 92075

DAMPER RUBBER

€ 3.00

92150

921501909
ref: 92150

BOLT

€ 3.00

92160

921601162
ref: 92160

DAMPER

€ 3.00
