MUFFLER(S)

ZX600E6 NINJA ZX6 1998 USA CALIFORNIA CANADA

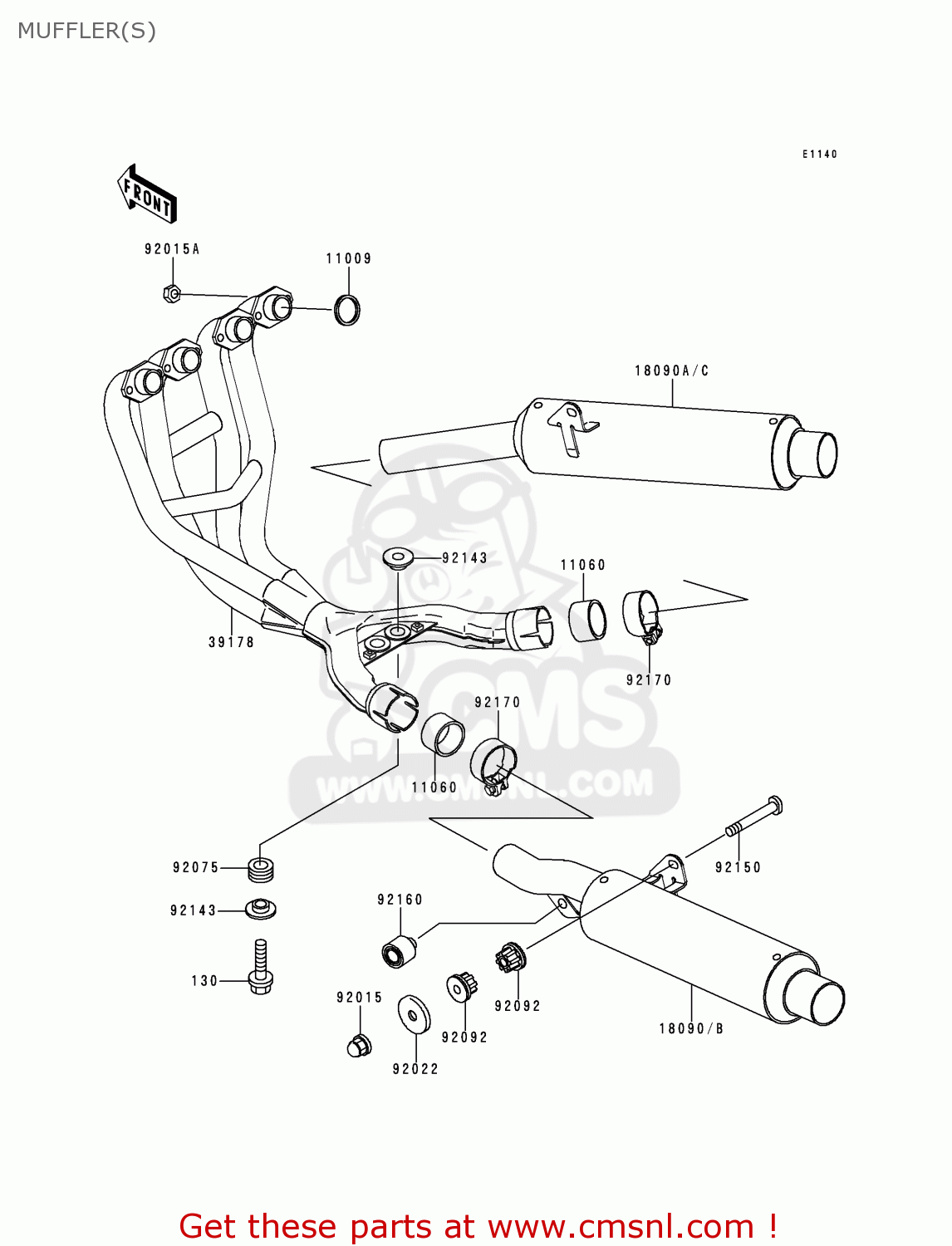

Muffler(s) diagram ZX600E6 NINJA ZX6 1998 USA CALIFORNIA CANADA

MUFFLER(S) ZX600E6 NINJA ZX6 1998 USA CALIFORNIA CANADA

MUFFLER(S) ZX600E6 NINJA ZX6 1998 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

130

130J1035
ref: 130

BOLT-FLANGED,10X35

€ 3.50

11009

110091856
ref: 11009

GASKET,EXHAUST PIPE H (NAS)

€ 5.50

11060

110601330
ref: 11060

GASKET,EXHAUST PIPE H (NAS)

€ 23.50

18090

180901230
ref: 18090

BODY-COMP-MUFFLER,LH

€ 375.50

18090A

180901231
ref: 18090A

BODY-COMP-MUFFLER,RH

€ 375.50

39178

391781216
ref: 39178

MANIFOLD-COMP-EXHAUST

€ 1,220.00

92015

920151649
ref: 92015

NUT,10MM

€ 3.50

92015A

920151950
ref: 92015A

NUT,8MM

€ 3.50

92022

92022289
ref: 92022

WASHER,PLAIN

€ 11.50

92075

920751621
ref: 92075

DAMPER,MUFFLER

€ 3.50

92092

920921013
ref: 92092

BUSHING-RUBBER,MUFFLE

€ 11.50

92143

921431395
ref: 92143

COLLAR

€ 4.50

92150

921501792
ref: 92150

BOLT,10X55

€ 5.50

92160

921601453
ref: 92160

DAMPER,STAND

€ 3.50

92170

921701154
ref: 92170

CLAMP

€ 20.50
