CHASSIS ELECTRICAL EQUIPMENT

ZX600E6 NINJA ZX6 1998 USA CALIFORNIA CANADA

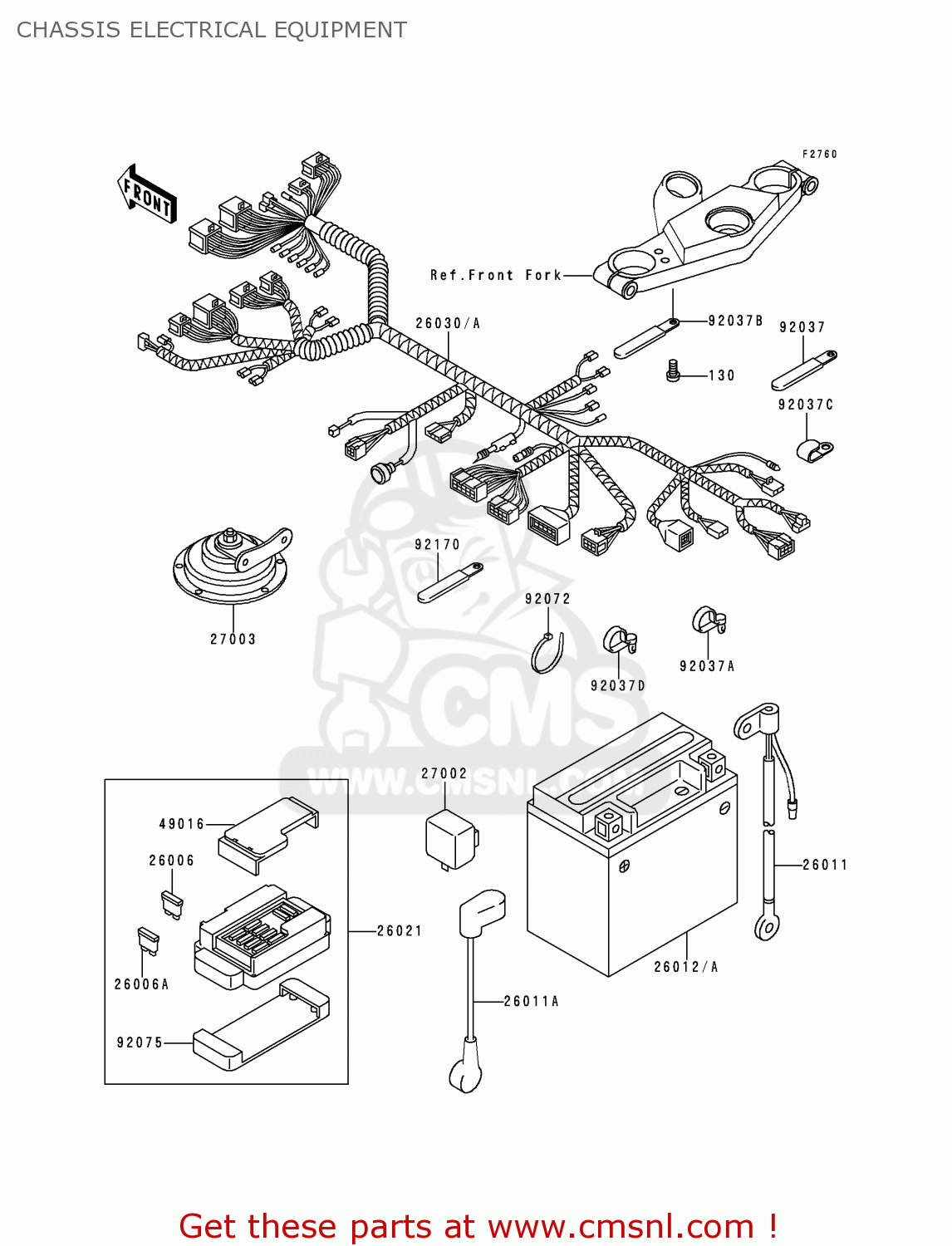

Chassis electrical equipment diagram ZX600E6 NINJA ZX6 1998 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

130

130J0614
ref: 130

BOLT-FLANGED,6X14,BLA

€ 1.50

26006

260061067
ref: 26006

FUSE, 30A-G

€ 3.00

26006A

260061068
ref: 26006A

FUSE, 10A-R

€ 3.00

26011

260111429
ref: 26011

WIRE-LEAD,BATTERY(-)

€ 16.50

26011A

260111540
ref: 26011A

WIRE-LEAD,BATTERY(+)

€ 27.00

26012A

260121330
ref: 26012A

BATTERY,YTX12BS,12V10

€ 120.50

26021

260211089
ref: 26021

JUNCTION BOX

€ 126.00

26030A

260301476
ref: 26030A

HARNESS,MAIN

€ 201.50

27002

270021092
ref: 27002

RELAY-ASSY,SIGNAL LAM

€ 49.50

27003

270031316
ref: 27003

HORN

€ 55.50

49016

490161177
ref: 49016

COVER-SEAL,FUSE

€ 7.00

92037

920371069
ref: 92037

CLAMP,L=60

€ 1.50

92037A

920371163
ref: 92037A

CLAMP,HARNESS,REAR

€ 4.50

92037B

920371539
ref: 92037B

CLAMP,L=45

€ 3.00

92037C

920371877
ref: 92037C

CLAMP

€ 3.00

92037D

920371903
ref: 92037D

CLAMP

€ 5.00

92072

920721195
ref: 92072

BAND,L=185

€ 1.00

92075

920751688
ref: 92075

DAMPER,FUSE & RELAY B

€ 9.50

92170

921701114
ref: 92170

CLAMP

€ 5.00
