OIL COOLER

ZX600E5 ZZR600 1997 EUROPE UK FR NL FG GR IT NR ST

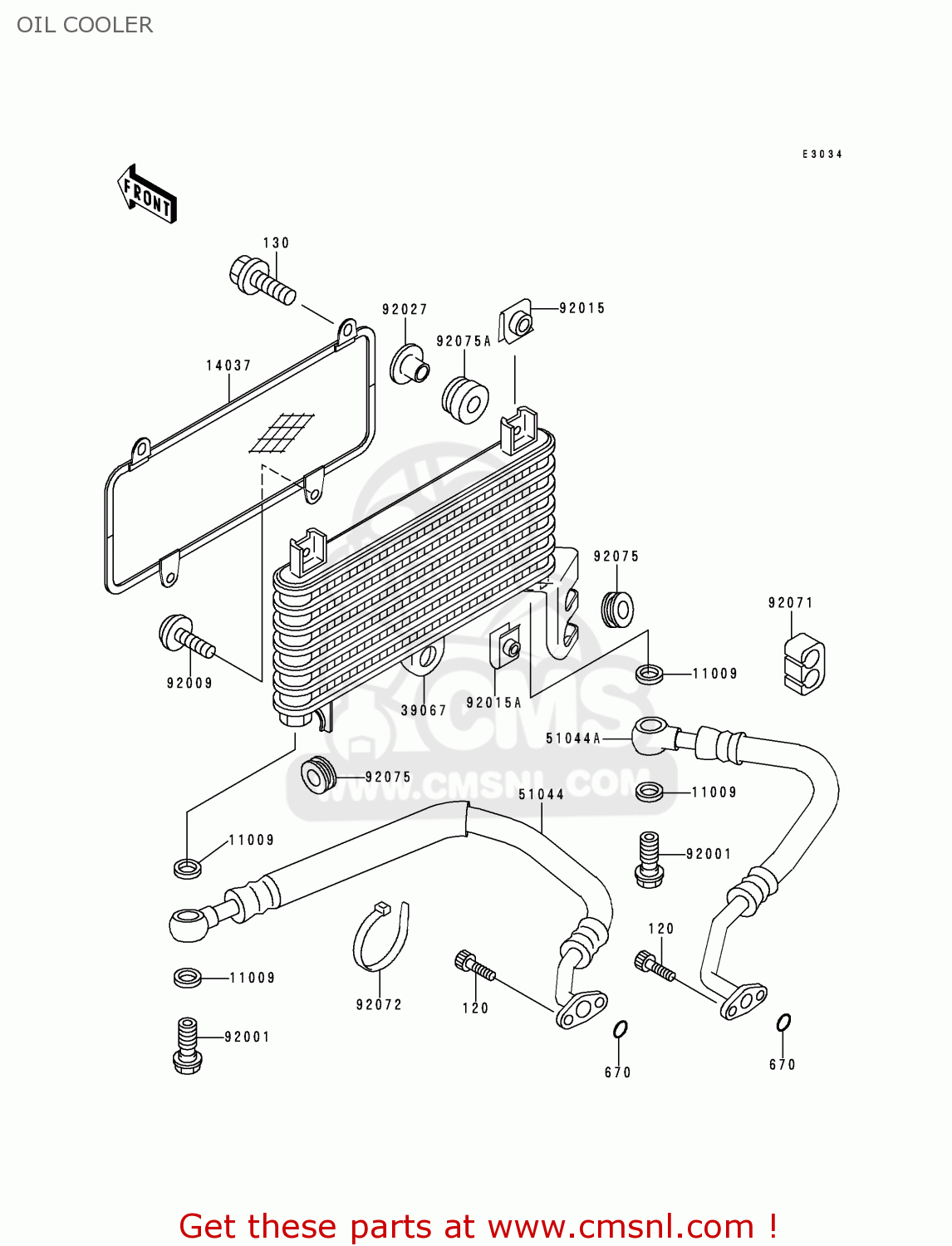

Oil cooler diagram ZX600E5 ZZR600 1997 EUROPE UK FR NL FG GR IT NR ST

prices are in EUR

ref

part #

description

quantity

120

120S0616
ref: 120

BOLT-SOCKET,6X16

€ 1.00

130

130J0625
ref: 130

BOLT-FLANGED,6X25

€ 2.00

670

670B2010
ref: 670

O RING,10MM

€ 1.00

11009

110091461
ref: 11009

GASKET,14X19.5X1.4 (NAS)

€ 3.50

14037

140371174
ref: 14037

SCREEN,OIL COOLER

€ 39.00

39067

390671061
ref: 39067

COOLER-OIL

€ 531.50

51044

510441157
ref: 51044

TUBE-ASSY,LH

€ 115.00

51044A

510441158
ref: 51044A

TUBE-ASSY,RH

€ 121.00

92001

920011930
ref: 92001

BOLT,14X28.5

€ 6.50

92009

920091261
ref: 92009

SCREW,TAPPING,6MM

€ 2.00

92015

920151487
ref: 92015

NUT

€ 3.00

92015A

920151758
ref: 92015A

NUT

€ 4.50

92027

920271651
ref: 92027

COLLAR

€ 2.50

92071

920711216
ref: 92071

GROMMET

€ 4.50

92072

920721195
ref: 92072

BAND,L=185

€ 1.00

92075

920751942
ref: 92075

DAMPER,OIL COOLER

€ 3.50

92075A

92075277
ref: 92075A

DAMPER

€ 1.00

OIL COOLER

all assemblies
