COWLING LOWERS(ZX600-E5)

ZX600E5 ZZR600 1997 EUROPE UK FR NL FG GR IT NR ST

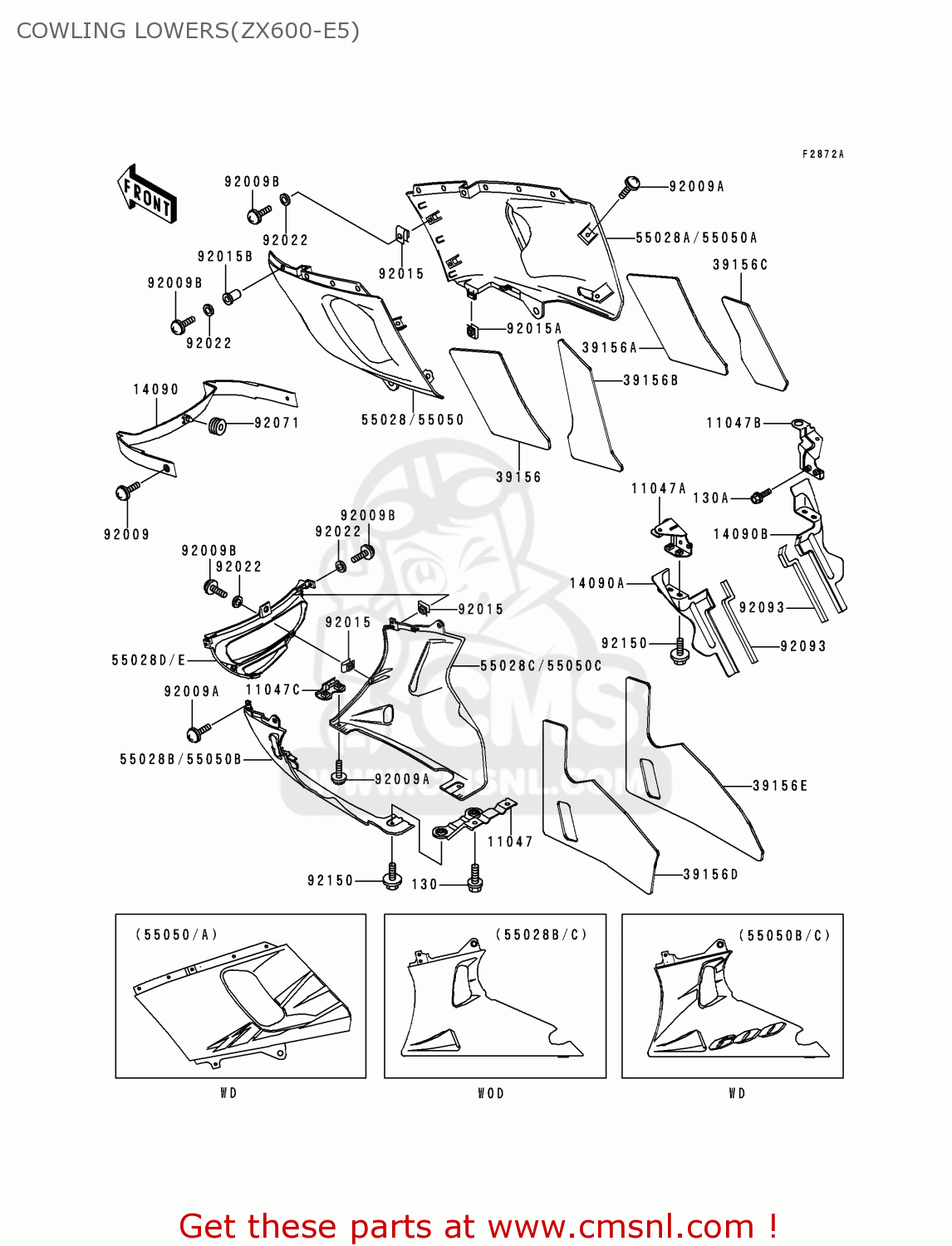

Cowling lowers(zx600-e5) diagram ZX600E5 ZZR600 1997 EUROPE UK FR NL FG GR IT NR ST

COWLING LOWERS(ZX600-E5) ZX600E5 ZZR600 1997 EUROPE UK FR NL FG GR IT NR ST
COWLING LOWERS(ZX600-E5) ZX600E5 ZZR600 1997 EUROPE UK FR NL FG GR IT NR ST
COWLING LOWERS(ZX600-E5) ZX600E5 ZZR600 1997 EUROPE UK FR NL FG GR IT NR ST
prices are in EUR
ref
part #
description
quantity
11047
110471091
ref: 11047
BRACKET,LWR COWLING
110471091
€ 17.00
11047A
110471936
ref: 11047A
BRACKET,CNT COWLING,L
110471936
€ 17.00
11047B
110471937
ref: 11047B
BRACKET,CNT COWLING,R
110471937
€ 19.00
11047C
110471938
ref: 11047C
BRACKET,LWR COWLING,F
110471938
€ 8.00
14090
140901263TX
ref: 14090
COVER,CNT,SILVER NO.3
140901263TX
€ 77.50
14090A
140901292
ref: 14090A
COVER,HEAT GUARD,LH
€ 16.50
14090B
140901293
ref: 14090B
COVER,HEAT GUARD,RH
140901293
€ 15.50
39156
391561368
ref: 39156
PAD,CNT COWLING,LH,FR
391561368
€ 12.00
39156A
391561369
ref: 39156A
PAD,CNT COWLING,RH,FR
391561369
€ 13.00
39156B
391561370
ref: 39156B
PAD,CNT COWLING,LH,RR
391561370
€ 11.00
39156C
391561371
ref: 39156C
PAD,CNT COWLING,RH,RR
391561371
€ 12.00
39156D
391561372
ref: 39156D
PAD,LWR COWLING,LH
391561372
€ 15.00
39156E
391561373
ref: 39156E
PAD,LWR COWLING,RH
391561373
€ 15.00
55028
550281293H3
ref: 55028
EUFGFRGRNLNRSTUK
COWLING,CNT,LH,C.W.RE
€ 141.00
55028A
550281294H3
ref: 55028A
EUFGFRGRNLNRSTUK
COWLING,CNT,RH,C.W.RE
€ 148.00
55028B
550281295H3
ref: 55028B
EUFGFRGRNLNRSTUK
COWLING,LWR,LH,C.W.RE
550281295H3
€ 148.50
55028C
550281296H3
ref: 55028C
EUFGFRGRNLNRSTUK
COWLING,LWR,RH,C.W.RE
550281296H3
€ 158.00
55028D
550281297H3
ref: 55028D
EUFGFRGRNLNRSTUK
COWLING,LWR,FR,C.W.RE
€ 100.00
55028E
550281297H8
ref: 55028E
COWLING,LWR,FR,EBONY
€ 113.50
55050
550505052F2
ref: 55050
COWLING-ASSY.,CNT,LH,
€ 134.00
55050A
550505053F2
ref: 55050A
COWLING-ASSY.,CNT,RH,
€ 134.00
130
130J0612
ref: 130
BOLT-FLANGED,6X12,BLA
130J0612
€ 1.50
130A
130J0620
ref: 130A
BOLT-FLANGED,6X20
130J0620
€ 2.50
55050B
550505054H8
ref: 55050B
COWLING-ASSY.,LWR,LH,
€ 194.00
55050C
550505055H8
ref: 55050C
COWLING-ASSY.,LWR,RH,
€ 161.00
92009
920091287
ref: 92009
SCREW,6X14
920091287
€ 1.50
92009A
920091621
ref: 92009A
SCREW
920091621
€ 1.50
92009B
920091654
ref: 92009B
SCREW
920091654
€ 0.50
92015
920151573
ref: 92015
NUT,5MM
920151573
€ 4.50
92015A
920151602
ref: 92015A
NUT,6MM
920151602
€ 4.50
92015B
920151757A
ref: 92015B
NUT,5MM
920151757A
€ 5.00
92022
920221521
ref: 92022
WASHER,NYLON,5.3X11.5
920221521
€ 2.50
92071
92071056
ref: 92071
GROMMET
92071056
€ 2.50
92093
920931351
ref: 92093
SEAL
920931351
€ 3.00
92150
921501133
ref: 92150
BOLT,6X14
921501133
€ 2.50
