GEAR CHANGE MECHANISM

ZX600E5 ZZR600 1997 EUROPE UK FR NL FG GR IT NR ST

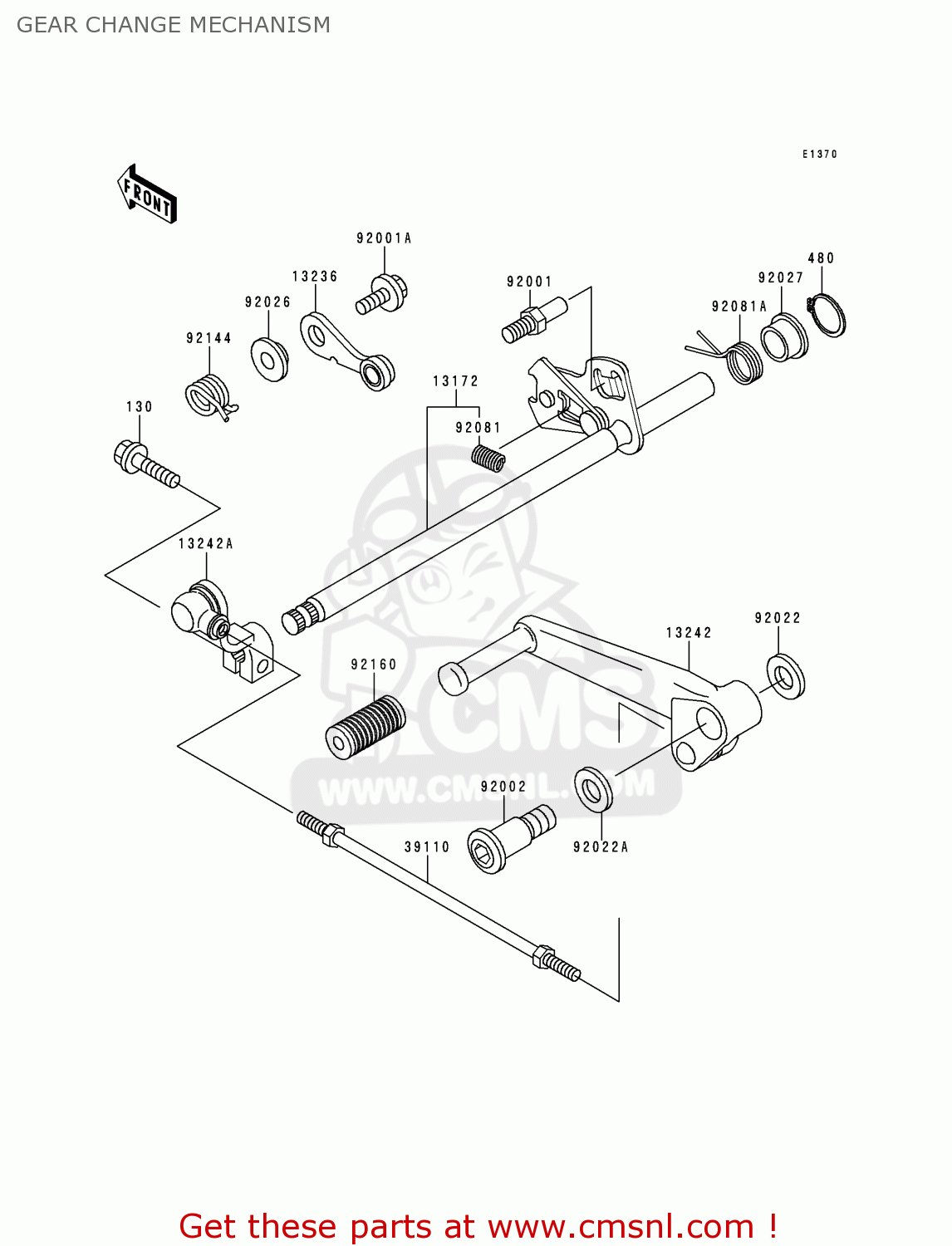

Gear change mechanism diagram ZX600E5 ZZR600 1997 EUROPE UK FR NL FG GR IT NR ST

prices are in EUR

ref

part #

description

quantity

130

130S0620
ref: 130

BOLT-FLANGED,6X20,BLA

€ 2.50

480

480J1300
ref: 480

CIRCLIP-TYPE-C,13MM

€ 2.50

13172

131721072
ref: 13172

SHAFT-ASSY-CHANGE

€ 89.00

13236

132361209
ref: 13236

LEVER-COMP,NEUTRAL PO

€ 13.00

13242

132421305
ref: 13242

LEVER-ASSY-CHANGE,PED

€ 54.00

13242A

132421306
ref: 13242A

LEVER-ASSY-CHANGE,LIN

€ 28.00

39110

391101010
ref: 39110

ROD-ASSY-TIE,CHANGE L

€ 9.00

92001

920011455
ref: 92001

BOLT

€ 3.00

92001A

920011516
ref: 92001A

BOLT,W/WASHER,6X12

€ 3.00

92002

920021926
ref: 92002

BOLT,CHANGE PEDAL

€ 10.50

92022

920221561
ref: 92022

WASHER,8.5X20X1.6

€ 2.50

92022A

920221593
ref: 92022A

WASHER,12.5X22X1.2

€ 3.00

92026

920261217
ref: 92026

SPACER

€ 3.50

92027

920271801
ref: 92027

COLLAR,13X18X9

€ 5.50

92081

920811275
ref: 92081

SPRING CHANGE LEVER

€ 2.50

92081A

920811279
ref: 92081A

SPRING,CHANGE LEVER R

€ 4.50

92144

921441693
ref: 92144

SPRING,RETURN

€ 5.00

92160

921601036
ref: 92160

DAMPER,CHANGE PEDAL

€ 3.50
