METER(S)
ZX600E13 CANADA 2005

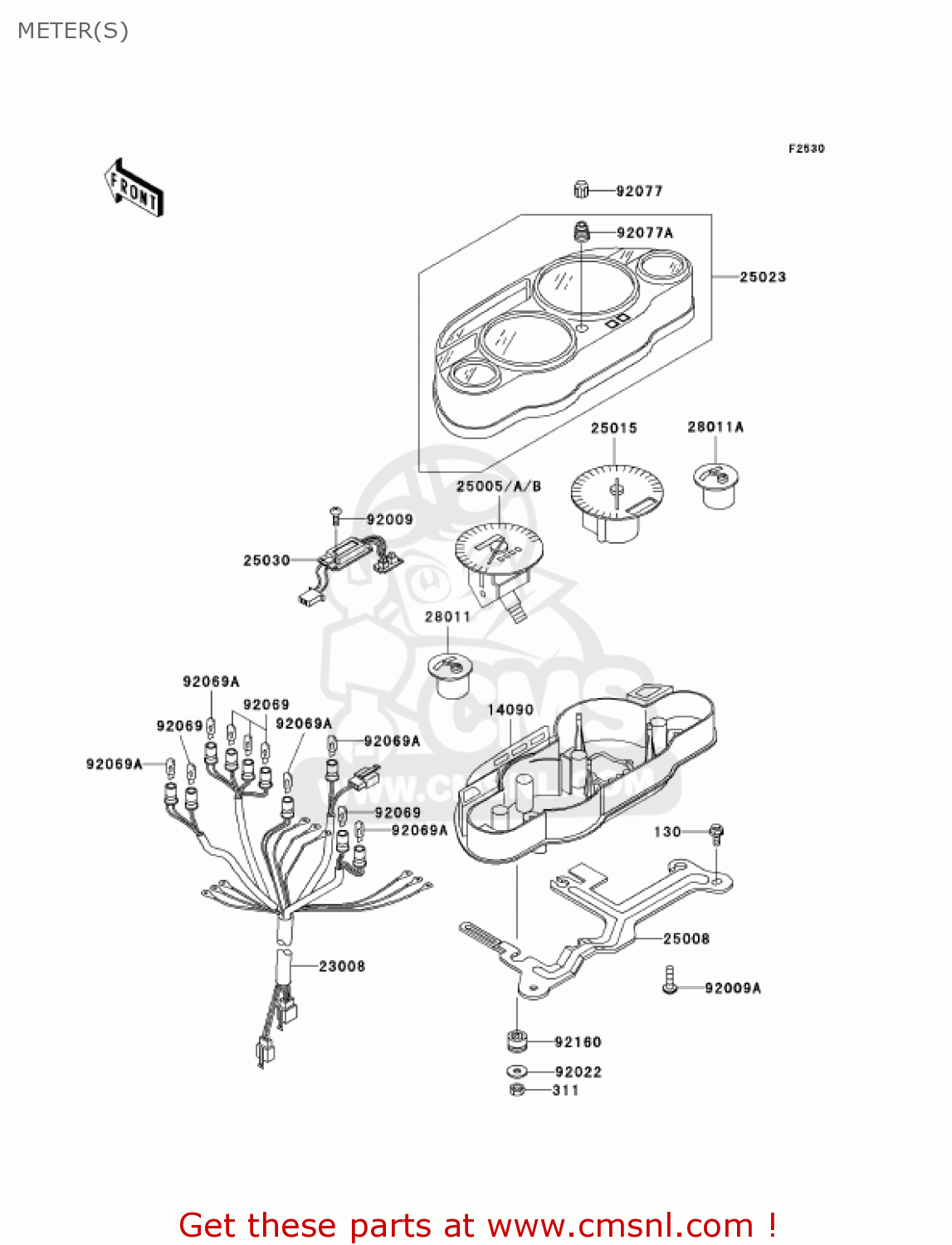

Meter(s) diagram ZX600E13 CANADA 2005
METER(S) ZX600E13 CANADA 2005
×
prices are in EUR
ref
part #
description
quantity
130
130J0614
ref: 130
BOLT-FLANGED,6X14,BLA
€ 1.50
311
311B0600
ref: 311
NUT,6MM
€ 0.50
14090
140901554
ref: 14090
COVER,METER HOUSING
€ 100.00
23008
230081543
ref: 23008
SOCKET-ASSY,METER
€ 106.00
25005A
250051714
ref: 25005A
SPEEDOMETER,KPH
€ 338.00
25008
250081195
ref: 25008
BRACKET-METER
€ 59.50
25015
250151342
ref: 25015
TACHOMETER,X1000R/MIN
€ 346.00
25023
250231219
ref: 25023
COVER-METER CASE,UPP
€ 105.00
25030
250301003
ref: 25030
CLOCK,DIGITAL
€ 348.00
28011
280111131
ref: 28011
METER,FUEL
€ 91.00
28011A
280111132
ref: 28011A
METER,TEMP
€ 108.00
92009
920091255
ref: 92009
SCREW,TAPPING,3X12
€ 2.50
92009A
920091503
ref: 92009A
SCREW,TAPPING,4X14
€ 2.50
92022
920221369
ref: 92022
WASHER,6.2X18X1.2
€ 0.50
92069
920691007
ref: 92069
BULB,12V3.4W
€ 2.50
92069A
920691059
ref: 92069A
BULB,12V 1.7W
€ 2.50
92077
920771094
ref: 92077
KNOB,TRIP RESET
€ 5.00
92077A
920771112
ref: 92077A
KNOB,TRIP RESET
€ 4.00
92160
921601436
ref: 92160
DAMPER
€ 4.50
