Genuine ZX Kawasaki Parts delivered quickly!


FUEL TANK

ZX600E13 CANADA 2005

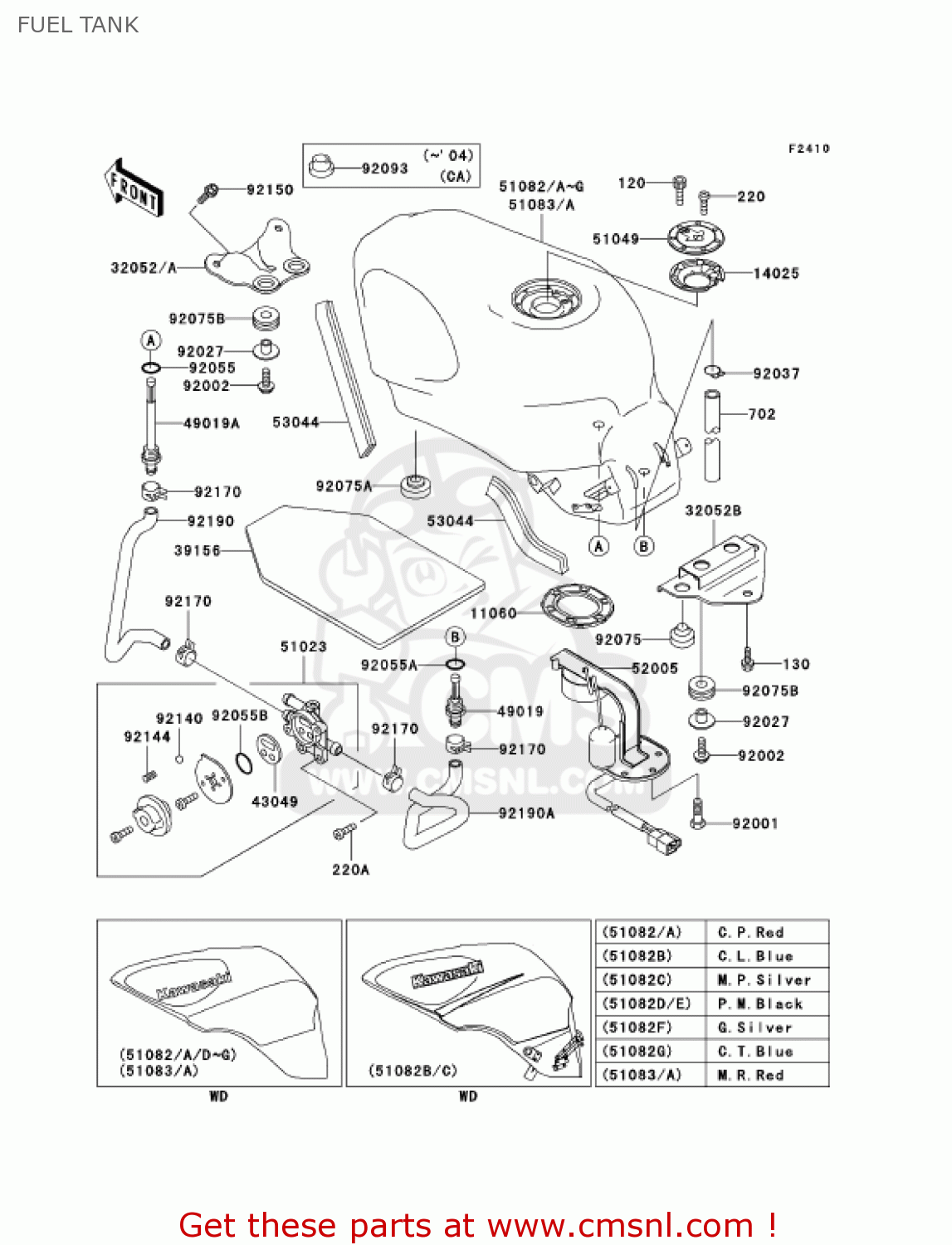

Fuel tank diagram ZX600E13 CANADA 2005

FUEL TANK ZX600E13 CANADA 2005
FUEL TANK ZX600E13 CANADA 2005
FUEL TANK ZX600E13 CANADA 2005
prices are in EUR
ref
part #
description
quantity
11060
110601337
ref: 11060
GASKET,FUEL GAUGE (NAS)
110601337
€ 8.50
14025
140251913
ref: 14025
COVER,TANK CAP
140251913
€ 13.50
32052A
320521362EZ
ref: 32052A
BRACKET-TANK,FR,C.GRA
€ 16.50
32052B
320521363
ref: 32052B
BRACKET-TANK,RR
€ 29.00
39156
391561662
ref: 39156
PAD,FUEL TANK
391561662
€ 29.00
43049
430491091
ref: 43049
PACKING,TAP VALVE (NAS)
430491091
€ 5.00
49019
490191070
ref: 49019
FILTER-FUEL
490191070
€ 15.00
49019A
490191071
ref: 49019A
FILTER-FUEL,ON
490191071
€ 15.50
51023
510231320
ref: 51023
TAP-ASSY,FUEL
510231320
€ 100.00
51049
510491130
ref: 51049
CAP-TANK,FUEL
510491130
€ 88.00
51082F
510825430474
ref: 51082F
TANK-COMP-FUEL,G.SILV
€ 886.00
52005
520051105
ref: 52005
GAUGE,FUEL
520051105
€ 159.50
53044
530441137
ref: 53044
TRIM
530441137
€ 7.00
92001
920011069
ref: 92001
BOLT,FUEL GAUGE FIT
920011069
€ 4.50
92002
920021237
ref: 92002
BOLT,6X20
920021237
€ 2.50
92027
92027251
ref: 92027
COLLAR,L=13.1
92027251
€ 1.00
92037
92037010
ref: 92037
CLAMP-FUEL PIPE
92037010
€ 2.50
92055
920551386
ref: 92055
RING-O,ID=9.5
920551386
€ 2.50
92055A
920551387
ref: 92055A
RING-O,ID=11.5
920551387
€ 2.50
92055B
920551419
ref: 92055B
RING-O,TAP LEVER
920551419
€ 3.00
92075
92075015
ref: 92075
DAMPER RUBB-MAIN STND
92075015
€ 3.00
92075A
92075157
ref: 92075A
DAMPER RUBBER-SID STN
92075157
€ 4.50
92075B
920751690
ref: 92075B
DAMPER,10X24X12
920751690
€ 3.00
120
120S0512
ref: 120
BOLT-SOCKET
120S0512
€ 1.00
130
130J0820
ref: 130
BOLT-FLANGED,8X20
130J0820
€ 0.50
220
220F0508
ref: 220
SCREW-PAN-CROSS
220F0508
€ 1.00
220A
220F0608
ref: 220A
SCREW-PAN-CROSS
220F0608
€ 1.00
702
702A07600
ref: 702
TUBE RUBBER
€ 9.50
92140
921401051
ref: 92140
BALL,STAINLESS,5/32
921401051
€ 3.00
92144
921441212
ref: 92144
SPRING,FUEL TAP KNOB
921441212
€ 2.50
92150
921501340
ref: 92150
BOLT,6X14
921501340
€ 3.00
92170
921701492
ref: 92170
CLAMP
921701492
€ 3.00
92190
921901332
ref: 92190
TUBE,TAP-FILTER
921901332
€ 10.50
92190A
921901333
ref: 92190A
TUBE,FUEL,RES
921901333
€ 12.00
