GENERATOR

ZX600E1 NINJA ZX6 1993 USA CALIFORNIA CANADA

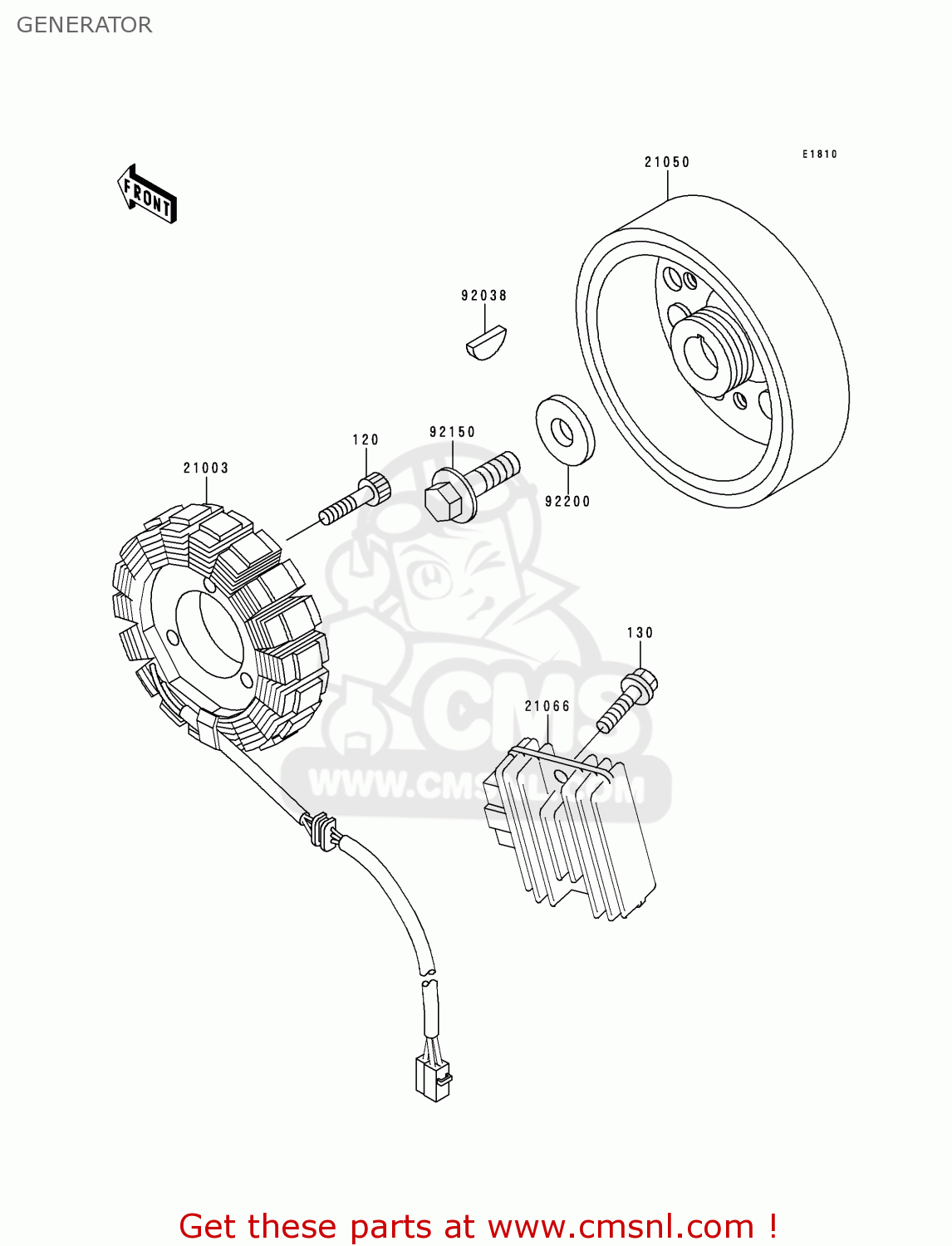

Generator diagram ZX600E1 NINJA ZX6 1993 USA CALIFORNIA CANADA

GENERATOR ZX600E1 NINJA ZX6 1993 USA CALIFORNIA CANADA

GENERATOR ZX600E1 NINJA ZX6 1993 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

120

120P0625
ref: 120

BOLT,6X25

€ 1.50

130

130H0620
ref: 130

BOLT-FLANGED

€ 0.50

21003

210031214
ref: 21003

STATOR

€ 567.50

21050

210501146
ref: 21050

FLYWHEEL

€ 434.00

21066

210661089
ref: 21066

REGULATOR-VOLTAGE

€ 173.50

92038

92038001
ref: 92038

WOODRUFF KEY

€ 3.00

92150

921501134
ref: 92150

BOLT,10X32

€ 6.00

92200

922001185
ref: 92200

WASHER,10X30X4

€ 8.50
