CHASSIS ELECTRICAL EQUIPMENT

ZX600E1 NINJA ZX6 1993 USA CALIFORNIA CANADA

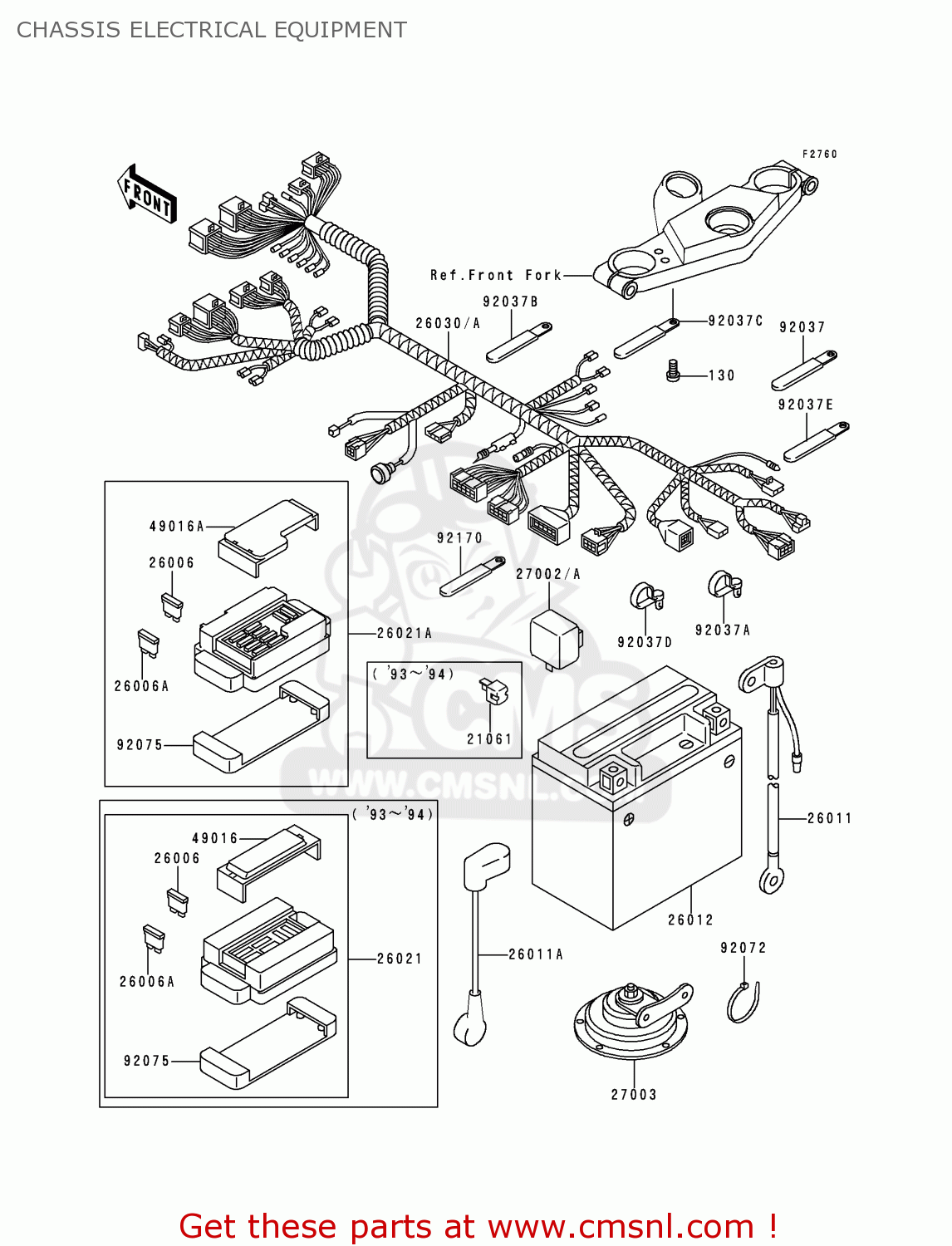

Chassis electrical equipment diagram ZX600E1 NINJA ZX6 1993 USA CALIFORNIA CANADA

CHASSIS ELECTRICAL EQUIPMENT ZX600E1 NINJA ZX6 1993 USA CALIFORNIA CANADA

CHASSIS ELECTRICAL EQUIPMENT ZX600E1 NINJA ZX6 1993 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

130

130J0614
ref: 130

BOLT-FLANGED,6X14,BLA

€ 1.50

21061

210611003
ref: 21061

RECTIFIER

€ 25.00

26006

260061067
ref: 26006

FUSE, 30A-G

€ 3.00

26006A

260061068
ref: 26006A

FUSE, 10A-R

€ 3.00

26011

260111429
ref: 26011

WIRE-LEAD,BATTERY(-)

€ 16.50

26011A

260111540
ref: 26011A

WIRE-LEAD,BATTERY(+)

€ 27.00

26012

260121281
ref: 26012

BATTERY,YTX12-BS,12V

€ 120.50

26021

260211077
ref: 26021

UNCTION BOX

€ 159.00

26030

260301171
ref: 26030

HARNESS,MAIN

€ 198.00

27002

270021060
ref: 27002

RELAY-ASSY,TURN SIGNA

€ 65.50

27003

270031316
ref: 27003

HORN

€ 55.50

49016

490161125
ref: 49016

COVER-SEAL,FUSE

€ 6.00

92037

920371069
ref: 92037

CLAMP,L=60

€ 1.50

92037B

920371290
ref: 92037B

CLAMP,CARBURETOR

€ 4.50

92037C

920371539
ref: 92037C

CLAMP,L=45

€ 3.00

92037D

920371877
ref: 92037D

CLAMP

€ 3.00

92037E

920371903
ref: 92037E

CLAMP

€ 5.00

92072

920721195
ref: 92072

BAND,L=185

€ 1.00

92075

920751688
ref: 92075

DAMPER,FUSE & RELAY B

€ 9.50

92170

921701114
ref: 92170

CLAMP

€ 5.00
