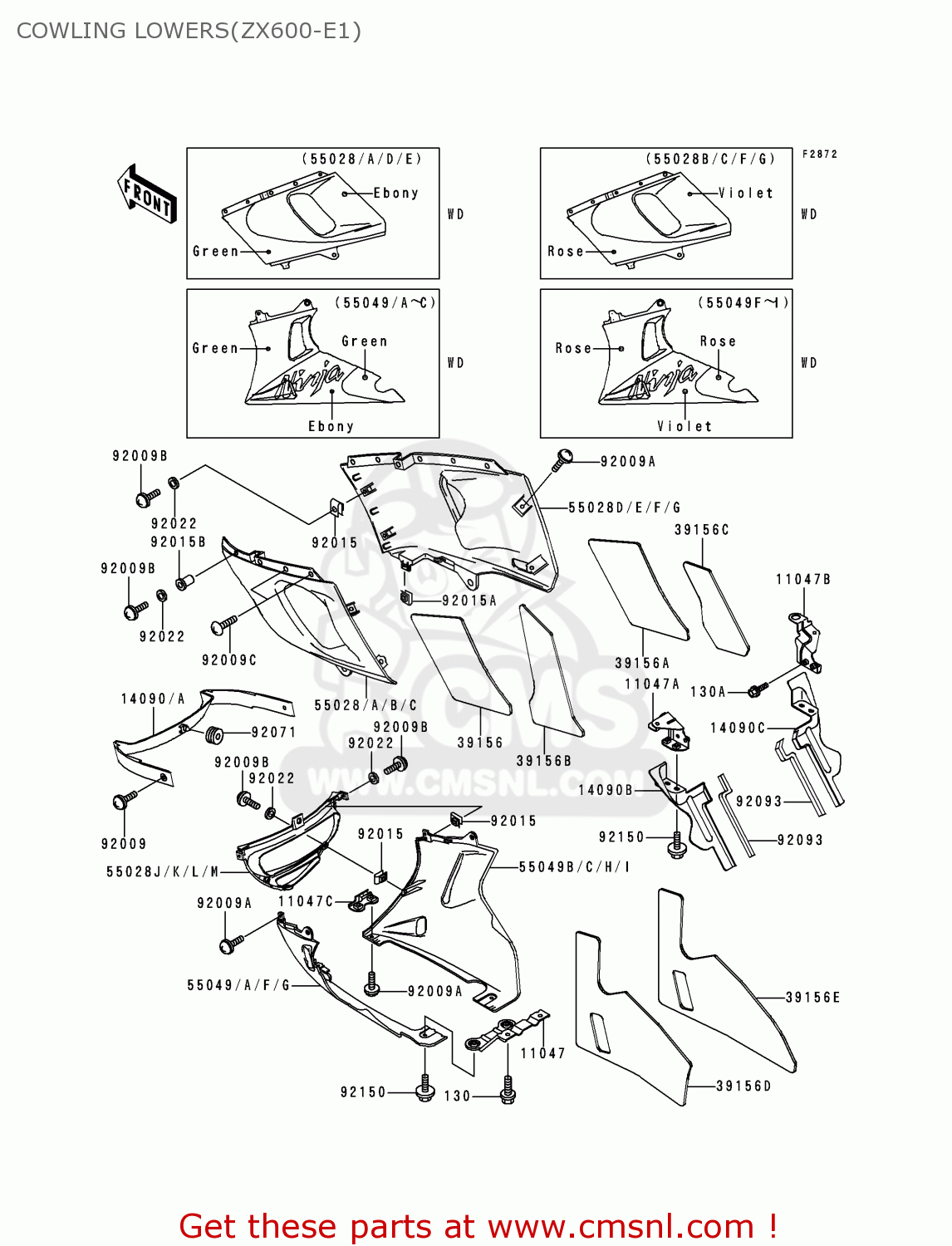

COWLING LOWERS(ZX600-E1)

ref

part #

description

quantity

11047

110471091
ref: 11047

BRACKET,LWR COWLING

€ 17.00

11047A

110471936
ref: 11047A

BRACKET,CNT COWLING,L

€ 17.00

11047B

110471937
ref: 11047B

BRACKET,CNT COWLING,R

€ 19.00

11047C

110471938
ref: 11047C

BRACKET,LWR COWLING,F

€ 8.00

14090

140901263TX
ref: 14090
CN

COVER,CNT,SILVER NO.3

€ 77.50

14090A

140901263VZ
ref: 14090A
CAUS

COVER-CNT,SILVER NO.3

€ 82.50

14090B

140901292
ref: 14090B

COVER,HEAT GUARD,LH

€ 16.50

14090C

140901293
ref: 14090C

COVER,HEAT GUARD,RH

€ 15.50

39156

391561368
ref: 39156

PAD,CNT COWLING,LH,FR

€ 12.00

39156A

391561369
ref: 39156A

PAD,CNT COWLING,RH,FR

€ 13.00

39156B

391561370
ref: 39156B

PAD,CNT COWLING,LH,RR

€ 11.00

39156C

391561371
ref: 39156C

PAD,CNT COWLING,RH,RR

€ 12.00

39156D

391561372
ref: 39156D

PAD,LWR COWLING,LH

€ 15.00

39156E

391561373
ref: 39156E

PAD,LWR COWLING,RH

€ 15.00

55028

550281293TL
ref: 55028
CAUS

COWLING,CENTER,LH,EBONY/GREEN

€ 57.50

55028A

550281293VS
ref: 55028A
CN

COWLING,CNT,LH,EBONY/

€ 193.00

55028B

550281293VX
ref: 55028B
CN

COWLING,CNT,LH,VIOLET

€ 152.00

55028C

55028129313
ref: 55028C
CAUS

COWLING,CNT,LH,VIOLET

€ 117.50

55028D

550281294TL
ref: 55028D
CAUS

COWLING,CNT,RH,EBONY

€ 123.00

55028E

550281294VS
ref: 55028E
CN

COWLING,CNT,RH,EBONY/

€ 162.50

55028F

550281294VX
ref: 55028F
CN

COWLING,CNT,RH,VIOLET

€ 162.50

55028G

55028129413
ref: 55028G
CAUS

COWLING,CNT,RH,VIOLET

€ 117.50

55028J

550281297HC
ref: 55028J
CN

COWLING,LWR,FR,L.ROSE

€ 104.50

55028K

550281297SM
ref: 55028K
CN

COWLING,LWR,FR,P.T.GR

€ 104.50

55028L

550281297TZ
ref: 55028L
CAUS

COWLING,FRONT,LOWER,PEACOCK TEAL GREEN

€ 50.50

55028M

55028129717
ref: 55028M
CAUS

COWLING,FRONT,LOWER,LUMINOUS ROSE OPERA

€ 53.50

55049

550495184TL
ref: 55049
CAUS

COWLING.,LWR,LH,EBONY

€ 195.50

55049A

550495184VS
ref: 55049A
CN

COWLING.,LWR,LH,EBONY/GREEN

€ 0.00

55049B

550495185TL
ref: 55049B
CAUS

COWLING.,LWR,RH,EBONY

€ 195.50

55049C

550495185VS
ref: 55049C
CN

COWLING.,LWR,RH,EBONY

€ 193.50

55049F

550495189VX
ref: 55049F
CN

COWLING.,LWR,LH,VIOLET/ROSE

€ 0.00

55049G

55049518913
ref: 55049G
CAUS

COWLING,LOWER,LH,VIOLET/ROSE

€ 86.00

55049H

550495190VX
ref: 55049H
CN

COWLING.,LWR,RH,VIOLE

€ 161.00

55049I

55049519013
ref: 55049I
CAUS

COWLING,.LWR,RH,VIOL

€ 212.00

130

130J0612
ref: 130

BOLT-FLANGED,6X12,BLA

€ 1.50

130A

130J0620
ref: 130A

BOLT-FLANGED,6X20

€ 2.50

92009

920091287
ref: 92009

SCREW,6X14

€ 1.50

92009A

920091621
ref: 92009A

SCREW

€ 1.50

92009B

920091654
ref: 92009B

SCREW

€ 0.50

92009C

920091656
ref: 92009C

SCREW

€ 2.50

92015

920151573
ref: 92015

NUT,5MM

€ 4.50

92015A

920151602
ref: 92015A

NUT,6MM

€ 4.50

92015B

920151757A
ref: 92015B

NUT,5MM

€ 5.00

92022

920221521
ref: 92022

WASHER,NYLON,5.3X11.5

€ 2.50

92071

92071056
ref: 92071

GROMMET

€ 2.50

92093

920931351
ref: 92093

SEAL

€ 3.00

92150

921501133
ref: 92150

BOLT,6X14

€ 2.50
