STARTER MOTOR
ZX600D4 NINJA ZX6 1993 USA CALIFORNIA

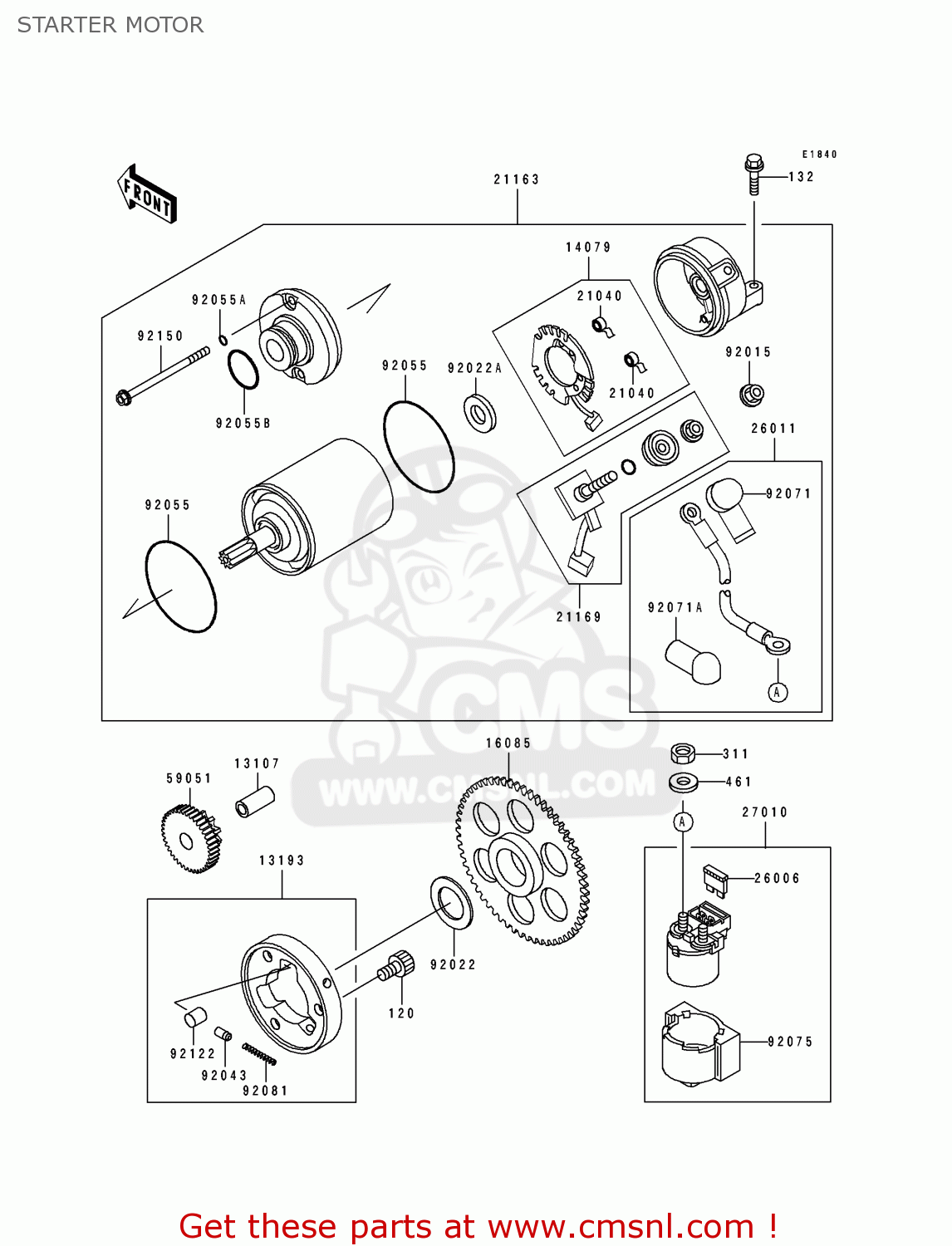

Starter motor diagram ZX600D4 NINJA ZX6 1993 USA CALIFORNIA
STARTER MOTOR ZX600D4 NINJA ZX6 1993 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
120
120P0814
ref: 120
BOLT-SOCKET,8X14
€ 3.00
132
132G0625
ref: 132
BOLT-FLANGED-SMALL
€ 3.00
311
311B0600
ref: 311
NUT,6MM
€ 0.50
461
461F0600
ref: 461
WASHER-SPRING,6MM
€ 0.50
13107
131071176
ref: 13107
SHAFT,7.8X12X26.5
€ 6.50
13193
131931002
ref: 13193
CLUTCH-ASSY-ONEWAY
€ 96.00
14079
140791082
ref: 14079
HOLDER-ASSY,CARBON BR
€ 31.50
16085
160851224
ref: 16085
GEAR,ONEWAY CLUTCH
€ 87.50
21040
210401051
ref: 21040
SPRING-BRUSH
€ 1.50
21163
211631154
ref: 21163
STARTER-ELECTRIC
€ 663.50
21169
211691058
ref: 21169
TERMINAL,STARTER
€ 44.00
26006
260061006
ref: 26006
FUSE,30A-G
€ 3.00
26011
260111473
ref: 26011
WIRE-LEAD,STARTER MOT
€ 33.50
27010
270101213
ref: 27010
SWITCH,MAGNETIC
€ 111.00
59051
590511232
ref: 59051
GEAR-SPUR,IDLE
€ 108.00
92015
920151623
ref: 92015
NUT
€ 3.00
92022
92022145
ref: 92022
WASHER-CLUTCH THRUST
€ 4.50
92022A
920222200
ref: 92022A
WASHER
€ 1.00
92043
92043132
ref: 92043
PIN
€ 4.00
92055
920551260
ref: 92055
RING-O,62MM
€ 7.50
92055A
920551261
ref: 92055A
RING-O,4.5MM
€ 2.00
92055B
920551262
ref: 92055B
RING-O,24.4X3.1
€ 8.50
92071
920711120
ref: 92071
GROMMET,STARTER TERMI
€ 8.50
92071A
920711121
ref: 92071A
GROMMET,TERMINAL
€ 8.00
92075
920751863
ref: 92075
DAMPER,MAGNETIC SWITC
€ 14.00
92081
92081159
ref: 92081
SPRING, COIL
€ 2.50
92122
92122006
ref: 92122
ROLLER
€ 4.00
92150
921501237
ref: 92150
BOLT
€ 7.00
