REAR HUB
ZX600D4 NINJA ZX6 1993 USA CALIFORNIA

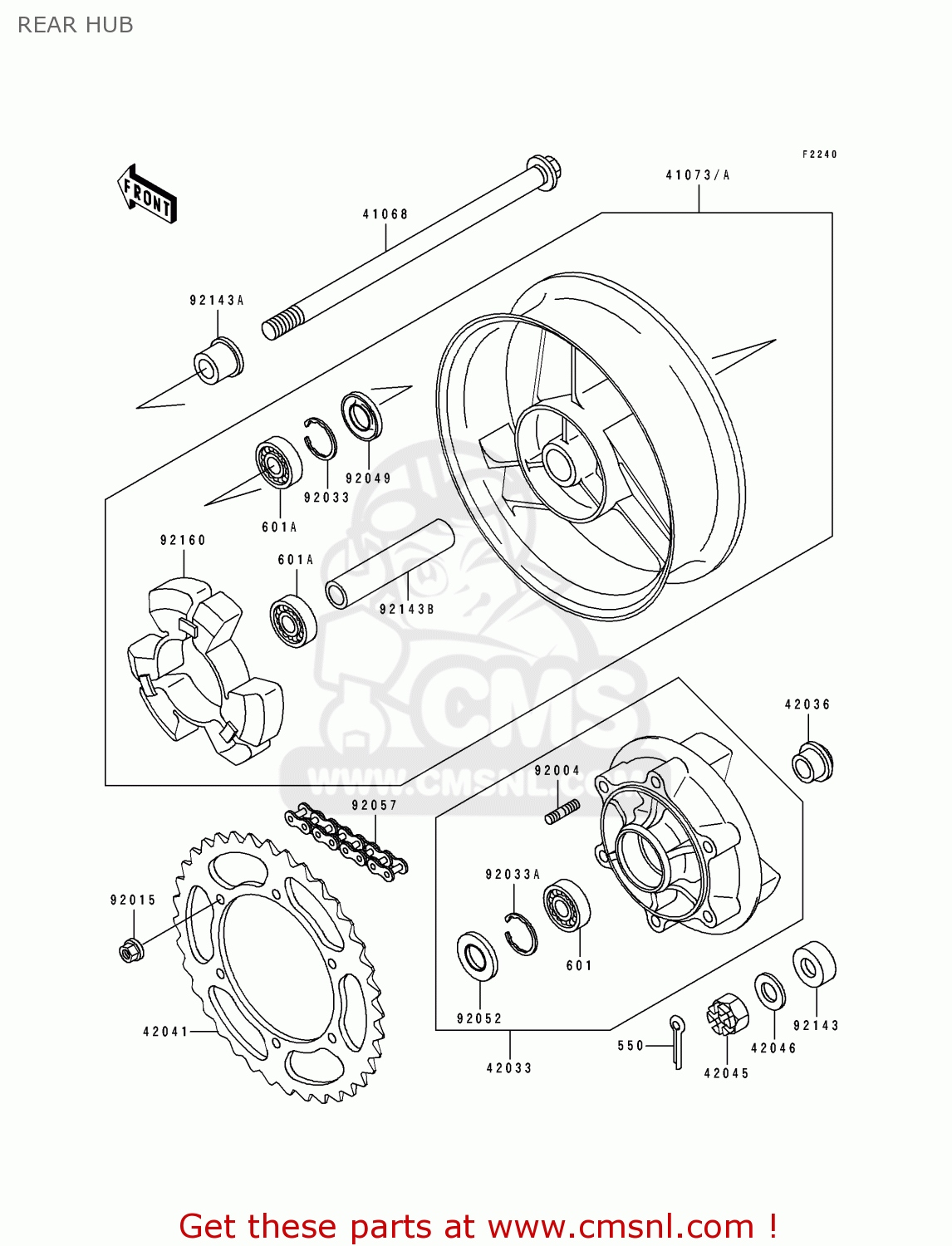

Rear hub diagram ZX600D4 NINJA ZX6 1993 USA CALIFORNIA
REAR HUB ZX600D4 NINJA ZX6 1993 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
550
550D4035
ref: 550
PIN-COTTER,4.0X35
€ 1.00
601
601B6205G
ref: 601
BEARING BALL
€ 14.00
601A
601B6303ZZ
ref: 601A
BEARING-BALL,#6303ZZC
€ 32.50
41068
410681314
ref: 41068
AXLE,RR
€ 99.00
41073A
410731484HY
ref: 41073A
WHEEL ASSEMBLY,REAR,GRAY
€ 545.50
42033
420331142GD
ref: 42033
COUPLING-ASSY,RR HUB,
€ 194.00
42036
420361233
ref: 42036
SLEEVE,RR AXLE,L=22
€ 17.00
42041
420411361
ref: 42041
SPROCKET-HUB
€ 33.50
42045
42045014
ref: 42045
NUT CASTLE, 16M/M
€ 6.50
42046
42046009
ref: 42046
WASHER-SLEEVE
€ 5.00
92004
920041151
ref: 92004
STUD,10X19.5
€ 6.50
92015
920151720
ref: 92015
NUT,10MM
€ 3.50
92033
920331042
ref: 92033
CIRCLIP,47M/M
€ 4.00
92033A
920331043
ref: 92033A
RING,SNAP,56.2M/M
€ 6.00
92049
920491056
ref: 92049
OIL SEAL,BJN28475
€ 8.50
92052
92052006
ref: 92052
OIL SEAL WTC35527
€ 6.50
92057
920571221
ref: 92057
CHAIN,DRIVE,EK530MVOX
€ 142.50
92143
921431209
ref: 92143
COLLAR,RR AXLE,L=14.5
€ 11.00
92143A
921431210
ref: 92143A
COLLAR,RR AXLE,L=26
€ 13.50
92143B
921431393
ref: 92143B
COLLAR,RR HUB,L=125
€ 14.50
92160
921601248
ref: 92160
DAMPER,SHOCK,RR HUB
€ 94.00
