CARBURETOR
ZX600D4 NINJA ZX6 1993 USA CALIFORNIA

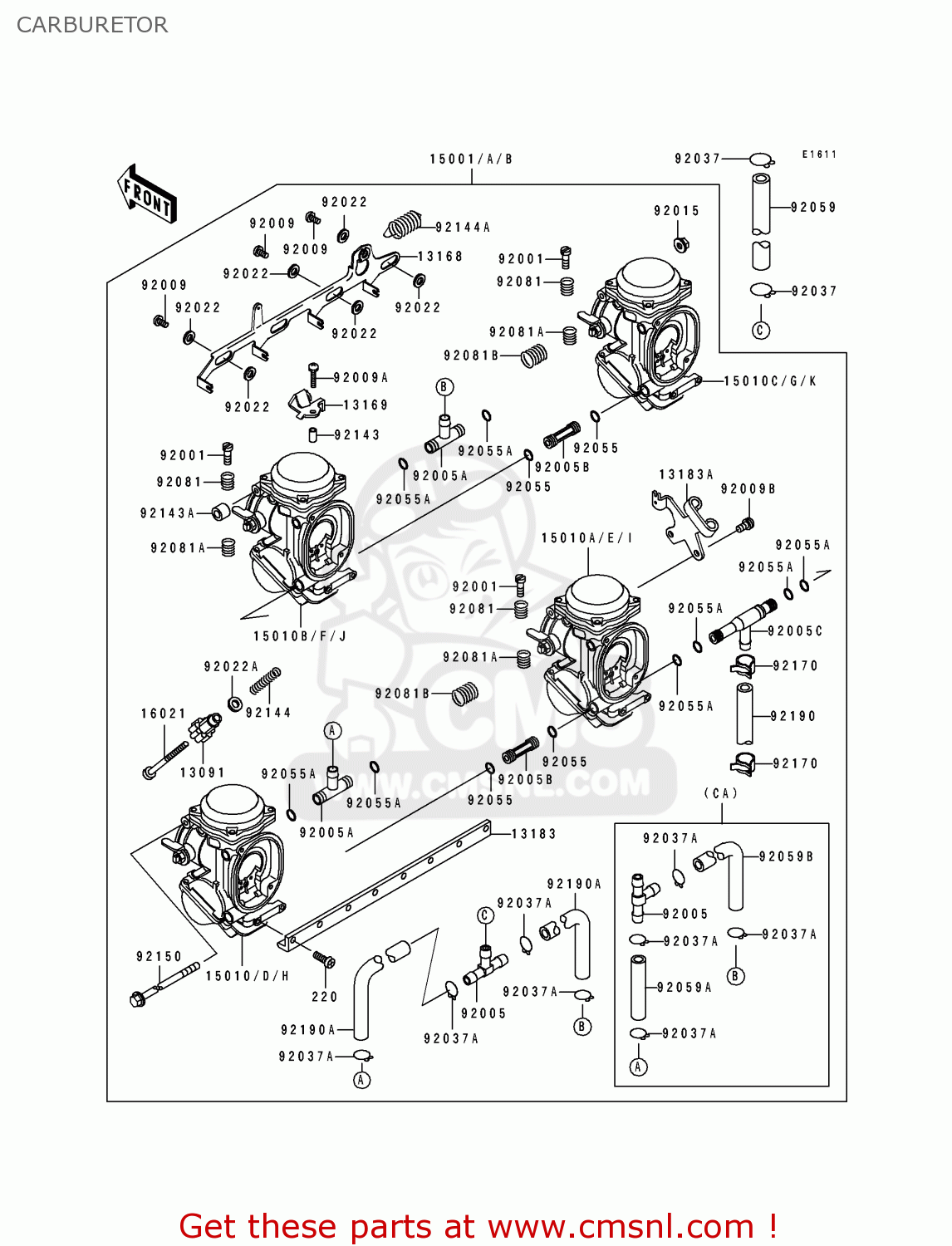

Carburetor diagram ZX600D4 NINJA ZX6 1993 USA CALIFORNIA
CARBURETOR ZX600D4 NINJA ZX6 1993 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
13091
130911382
ref: 13091
HOLDER,THROTTLE STOP
€ 11.00
13168
131681405
ref: 13168
LEVER,STARTER
€ 87.00
13169
131691965
ref: 13169
PLATE,STARTER CABLE
€ 26.50
13183
131831608
ref: 13183
PLATE,CARBURETOR STAY
€ 61.50
13183A
131831610
ref: 13183A
PLATE,THROTTLE CABLE
€ 56.00
15001
150011591
ref: 15001
US
CARBURETOR ASSEMBLY
€ 1,027.50
15001A
150011593
ref: 15001A
CA
CARBURETOR ASSEMBLY
€ 1,027.50
15010D
150101117
ref: 15010D
US
CARBURETOR,OUTSIDE,LH
€ 269.50
15010E
150101118
ref: 15010E
US
CARBURETOR,INSIDE,LH
€ 331.50
15010F
150101119
ref: 15010F
US
CARBURETOR,INSIDE,RH
€ 331.50
15010G
150101120
ref: 15010G
US
CARBURETOR,OUTSIDE,RH
€ 354.00
15010H
150101121
ref: 15010H
CA
CARBURETOR,OUTSIDE,LH
€ 331.50
15010I
150101122
ref: 15010I
CA
CARBURETOR,INSIDE,LH
€ 331.50
15010J
150101123
ref: 15010J
CA
CARBURETOR,INSIDE,RH
€ 331.50
15010K
150101124
ref: 15010K
CA
CARBURETOR,OUTSIDE,RH
€ 331.50
16021
160211122
ref: 16021
SCREW-THROTTLE STOP
€ 4.00
92001
920011998
ref: 92001
BOLT,THROTTLE ADJUST
€ 11.50
92005
920051119
ref: 92005
FITTING,T-TYPE
€ 17.50
92005A
920051125
ref: 92005A
FITTING,T-TYPE
€ 18.00
92005B
920051157
ref: 92005B
FITTING
€ 25.00
92005C
920051214
ref: 92005C
FITTING,T-TYPE
€ 19.00
92009
920091262
ref: 92009
SCREW
€ 4.00
220
220D0514
ref: 220
SCREW-PAN-CROS
€ 2.50
92009A
920091446
ref: 92009A
SCREW,4X18
€ 4.00
92009B
920091597
ref: 92009B
SCREW
€ 4.50
92015
920151259
ref: 92015
NUT,FLANGED,5MM
€ 2.50
92022
920221199
ref: 92022
WASHER,6.1X11X0.8,POL
€ 3.00
92022A
920221480
ref: 92022A
WASHER,PLAIN,STOP SPR
€ 3.00
92037
920371104
ref: 92037
US
CLAMP,HOSE
€ 1.00
92037A
920371194
ref: 92037A
CLAMP,TUBE,TAP DIAPRM
€ 4.00
92055
920551004
ref: 92055
O RING
€ 2.50
92055A
920551223
ref: 92055A
RING-O,FUEL FITTING
€ 3.50
92059
920591406
ref: 92059
US
TUBE 7X12X390 GREEN
€ 28.00
92059A
920591612
ref: 92059A
CA
TUBE,11X7X55
€ 17.00
92059B
920591863
ref: 92059B
CA
TUBE,7X11X220
€ 17.00
92081
920811620
ref: 92081
SPRING,THROTTLE ADJUS
€ 3.00
92081A
920811621
ref: 92081A
SPRING,THROTTLE ADJUS
€ 3.00
92081B
920811622
ref: 92081B
SPRING,THROTTLE ADJUS
€ 6.50
92143
921431265
ref: 92143
COLLAR,4X5.2X9.6
€ 3.00
92143A
921431438
ref: 92143A
COLLAR
€ 6.50
92144
921441539
ref: 92144
SPRING,THROTTLE ADJUS
€ 3.00
92144A
921441540
ref: 92144A
SPRING,STATER LEVER
€ 13.00
92150
921501416
ref: 92150
BOLT
€ 22.00
92170
921701054
ref: 92170
CLAMP,TUBE
€ 5.00
92190
921901063
ref: 92190
TUBE,7.3X12.5X380
€ 25.00
92190A
921901069
ref: 92190A
US
TUBE,7X11X127
€ 22.00
