REAR MASTER CYLINDER
ZX600C10 GPX600R 1997 FG

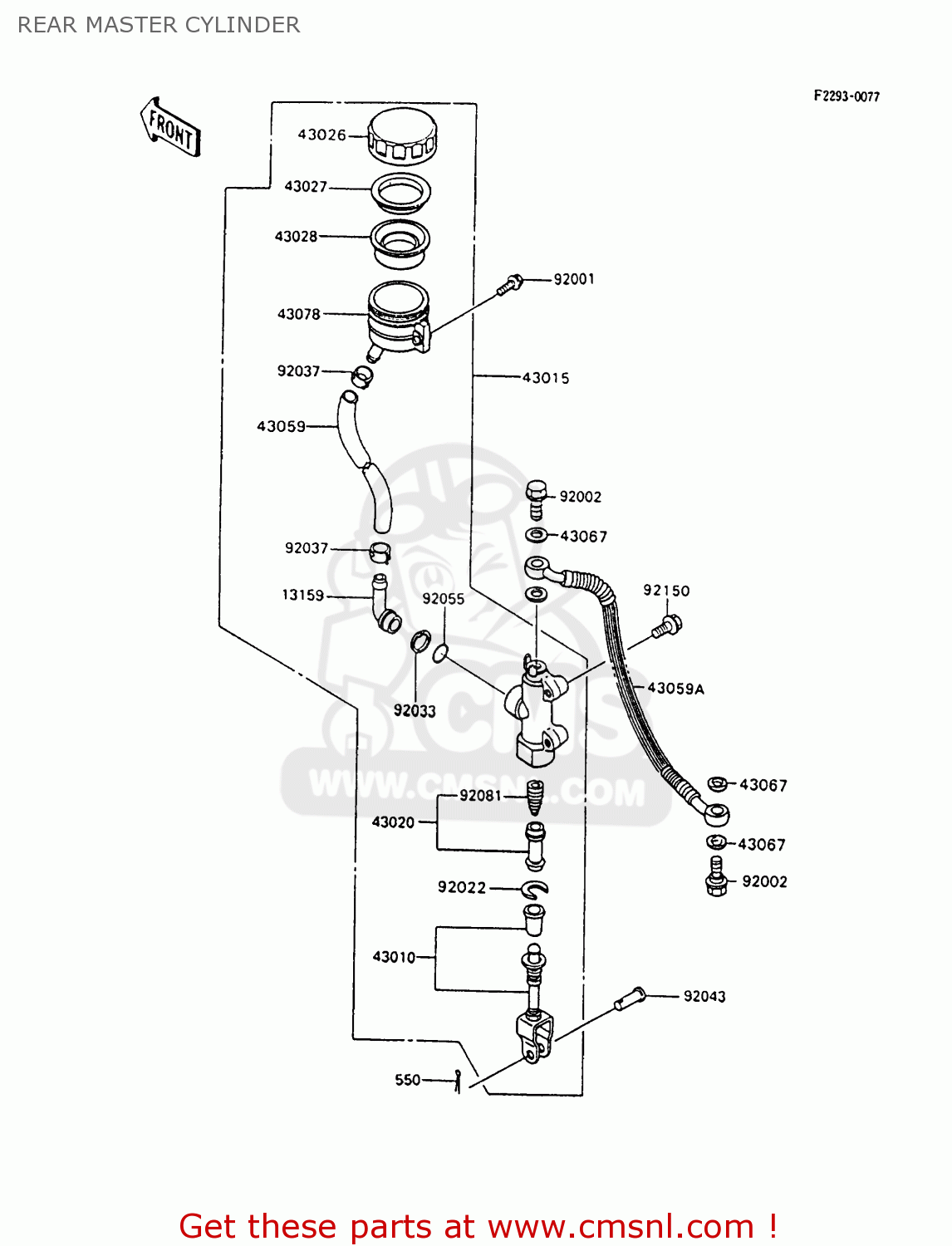

Rear master cylinder diagram ZX600C10 GPX600R 1997 FG
REAR MASTER CYLINDER ZX600C10 GPX600R 1997 FG
×
prices are in EUR
ref
part #
description
quantity
550
550D2015
ref: 550
PIN-COTTER,2.0X15
€ 1.00
13159
131591052
ref: 13159
CONNECTOR RR MASTER C
€ 9.50
43010
430101055
ref: 43010
ROD-ASSY-BRAKE
€ 44.00
43015
430151503
ref: 43015
CYLINDER-ASSY-MASTER,
€ 280.50
43020
430201057
ref: 43020
PISTON-COMP-BRAKE
€ 47.50
43026
430261051
ref: 43026
CAP-BRAKE, RR
€ 25.00
43027
430271051
ref: 43027
PLATE-DIAPHRAGM
€ 4.00
43028
430281057
ref: 43028
DIAPHRAGM
€ 13.00
43059
430591404
ref: 43059
HOSE-BRAKE,RR MASTER
€ 30.50
43059A
430591837
ref: 43059A
HOSE-BRAKE,RR
€ 52.00
43067
43067001
ref: 43067
WASHER,10.5X15X1.5
€ 1.50
43078
430781082
ref: 43078
RESERVOIR, RR MASTER
€ 19.00
92001
920011860
ref: 92001
BOLT,W/P,6X16
€ 2.50
92002
920021888
ref: 92002
BOLT,OIL,L=23
€ 3.50
92022
920221601
ref: 92022
WASHER,CIRCRIP
€ 5.00
92033
920331186
ref: 92033
RING-SNAP,20.5MM
€ 3.00
92037
920371547
ref: 92037
CLAMP
€ 8.50
92043
920431013
ref: 92043
PIN
€ 6.50
92055
920551251
ref: 92055
RING-O,MASTER CYLINDE
€ 2.50
92081
920811737
ref: 92081
SPRING
€ 8.50
92150
921501843
ref: 92150
BOLT
€ 2.50
