CAMSHAFT(S)/TENSIONER
ZX600C10 GPX600R 1997 FG

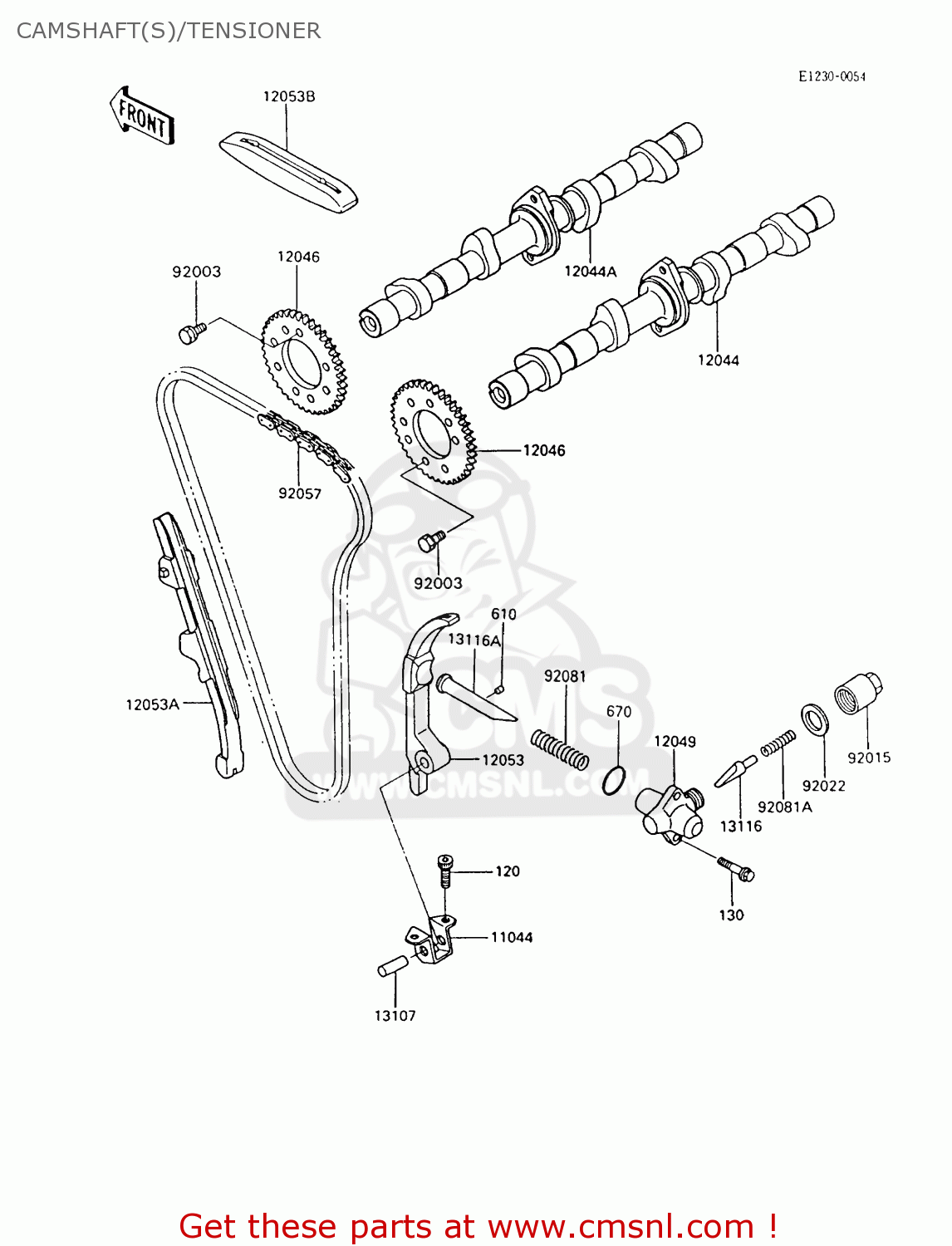

Camshaft(s)/tensioner diagram ZX600C10 GPX600R 1997 FG
CAMSHAFT(S)/TENSIONER ZX600C10 GPX600R 1997 FG
×
prices are in EUR
ref
part #
description
quantity
120
120P0618
ref: 120
BOLT,ALLEN,6X18
€ 1.00
130
130Y0625
ref: 130
BOLT-FLANGED
€ 2.00
610
610A0408
ref: 610
ROLLER,4X8
€ 2.50
670
670B2021
ref: 670
O RING,21MM
€ 3.00
11044
110441079
ref: 11044
BRACKET,CHAIN GUIDE
€ 5.50
12044
120441203
ref: 12044
CAMSHAFT-VALVE,INTAKE
€ 397.00
12044A
120441204
ref: 12044A
CAMSHAFT-VALVE,EXHAUS
€ 275.50
12046
120461078
ref: 12046
SPROCKET,CAMSHAFT,42T
€ 52.00
12049
120491009
ref: 12049
TENSIONER,CAM CHAIN
€ 39.00
12053
120531158
ref: 12053
GUIDE-CHAIN,RR
€ 32.50
12053A
120531159
ref: 12053A
GUIDE-CHAIN,FR
€ 25.50
12053B
120531160
ref: 12053B
GUIDE-CHAIN,HEAD
€ 19.00
13107
131071142
ref: 13107
SHAFT,L=24.5
€ 5.50
13116
131161012
ref: 13116
ROD-PUSH,TENSIONER
€ 13.00
13116A
131161020
ref: 13116A
ROD-PUSH,CAM CHAIN
€ 24.00
92003
92003208
ref: 92003
BOLT,SPROCKET FITTING
€ 2.50
92015
920151100
ref: 92015
NUT,CAP,18MM
€ 8.00
92022
920221175
ref: 92022
WASHER,18.3X24X1.4
€ 3.00
92057
920571190
ref: 92057
CHAIN,CAMSHAFT,82RH20
€ 35.50
92081
920811075
ref: 92081
SPRING TENSIONER
€ 2.50
92081A
920811302
ref: 92081A
SPRING,TENSIONER
€ 3.50
