GEAR CHANGE MECHANISM
ZX600C10 GPX600R 1997 FG

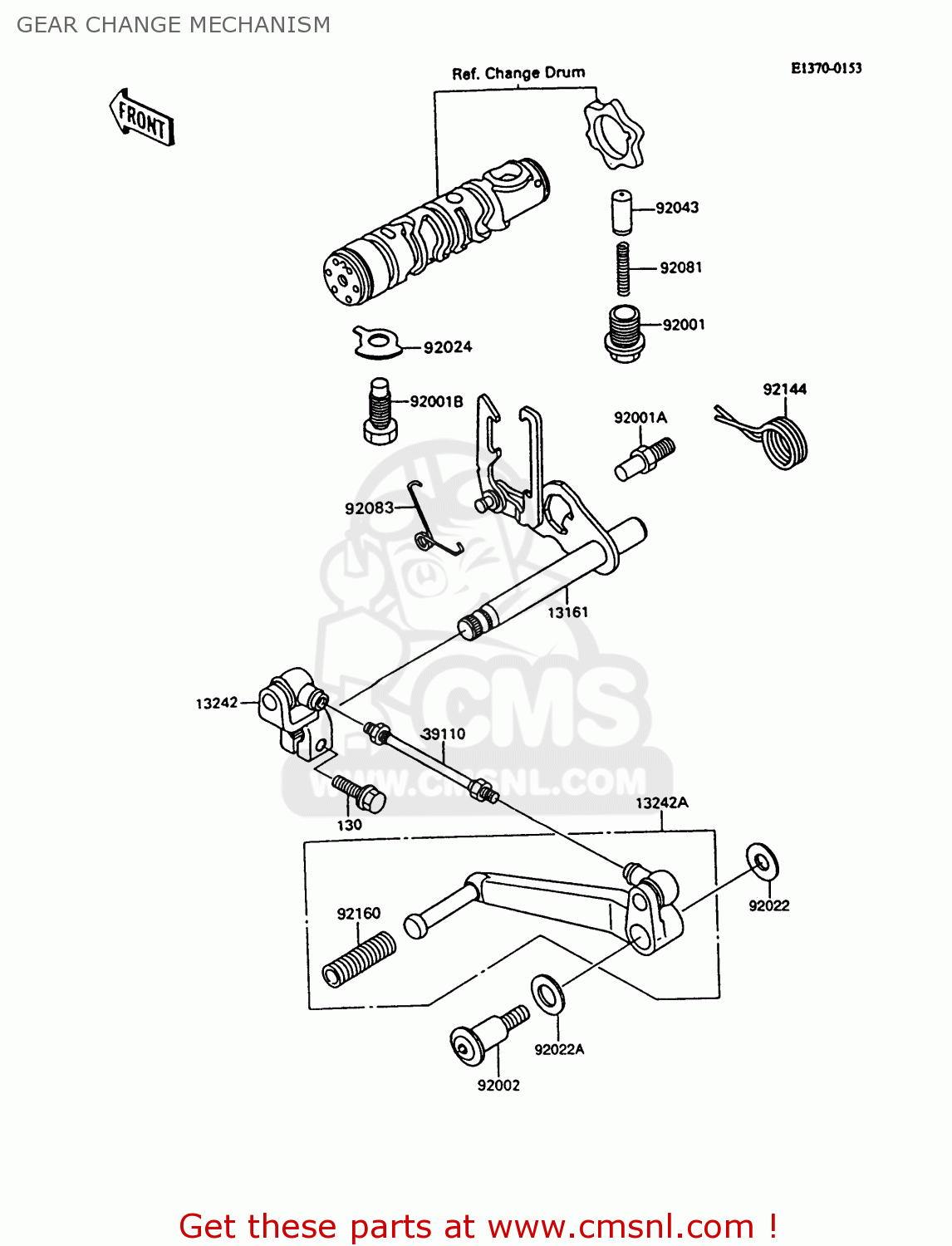

Gear change mechanism diagram ZX600C10 GPX600R 1997 FG
GEAR CHANGE MECHANISM ZX600C10 GPX600R 1997 FG
×
prices are in EUR
ref
part #
description
quantity
130
130S0620
ref: 130
BOLT-FLANGED,6X20,BLA
€ 2.50
13161
13161042
ref: 13161
LEVER-COMP-CHANGE SHA
€ 102.50
13242
132421190
ref: 13242
LEVER-ASSY-CHANGE,BOS
€ 21.00
13242A
132421191
ref: 13242A
LEVER-ASSY-CHANGE,PED
€ 42.00
39110
391101010
ref: 39110
ROD-ASSY-TIE,CHANGE L
€ 9.00
92001
920011037
ref: 92001
BOLT,NEUTAL POSITION
€ 9.50
92001A
920011455
ref: 92001A
BOLT
€ 3.00
92001B
92001174
ref: 92001B
BOLT, HEX HEAD, 10X26
€ 4.50
92002
920021926
ref: 92002
BOLT,CHANGE PEDAL
€ 10.50
92022
920221561
ref: 92022
WASHER,8.5X20X1.6
€ 2.50
92022A
920221593
ref: 92022A
WASHER,12.5X22X1.2
€ 3.00
92024
92024074
ref: 92024
WASHER,LOCK,10MM
€ 2.50
92043
92043076
ref: 92043
PIN-NEUTRAL PISTON
€ 8.00
92081
92081112
ref: 92081
SPRING
€ 4.00
92083
92083018
ref: 92083
SPRING-KICK PAWL
€ 6.00
92144
921441074
ref: 92144
SPRING,CHANGE PEDAL R
€ 6.50
92160
921601036
ref: 92160
DAMPER,CHANGE PEDAL
€ 3.50
