RADIATOR
ZX600A5A GPZ600A 1989 EUROPE UK FG IT ST

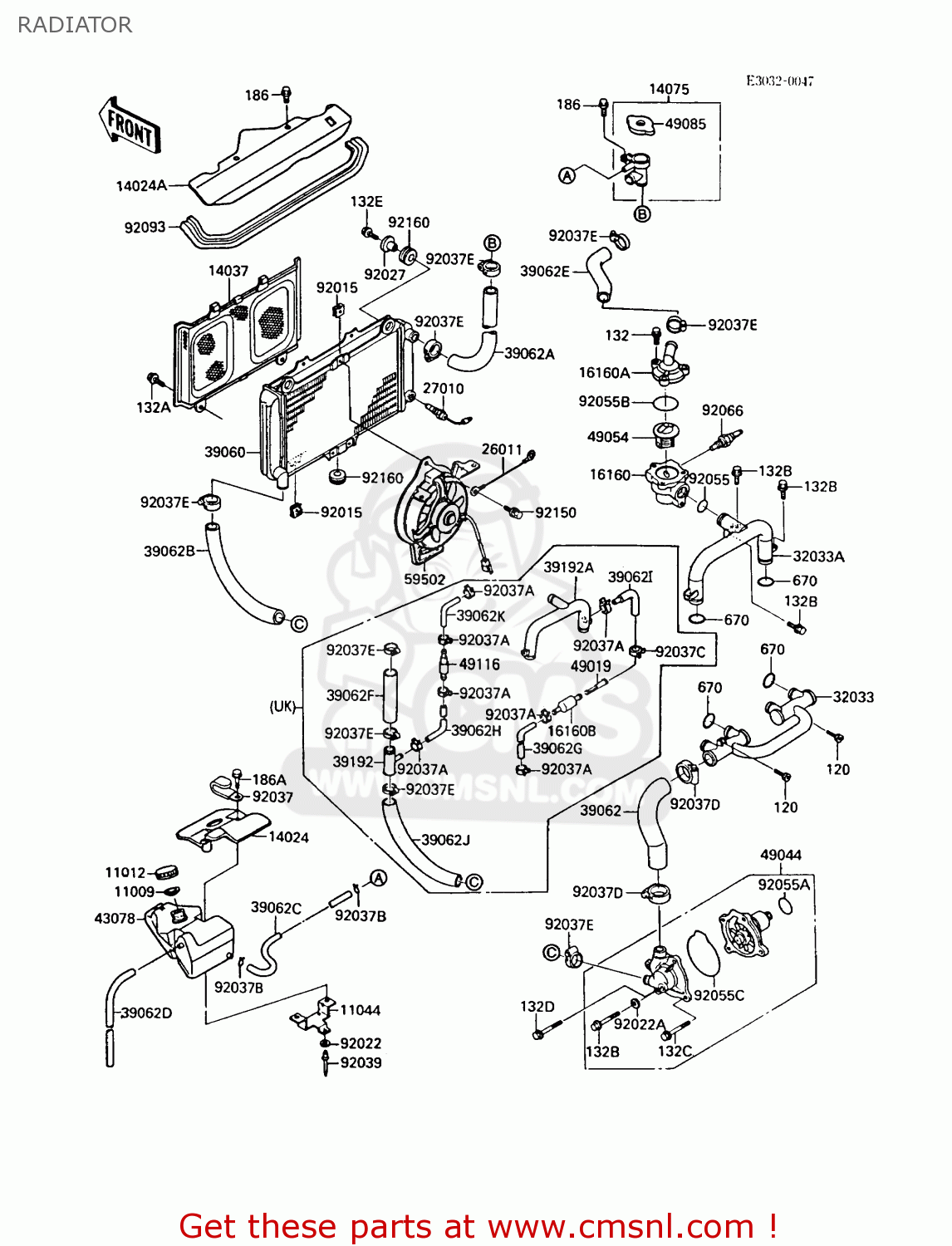

Radiator diagram ZX600A5A GPZ600A 1989 EUROPE UK FG IT ST
RADIATOR ZX600A5A GPZ600A 1989 EUROPE UK FG IT ST
×
prices are in EUR
ref
part #
description
quantity
11009
110091145
ref: 11009
GASKET,RESERVOIR TANK (NAS)
€ 1.00
11012
110121084
ref: 11012
CAP
€ 1.50
11044
110441170
ref: 11044
BRACKET,RESERVOIR
€ 7.50
14024
140241090
ref: 14024
COVER,RESERVOIR
€ 8.50
14024A
140241137
ref: 14024A
COVER,RADIATOR
€ 15.50
14037
140371083
ref: 14037
SCREEN
€ 69.50
14075
140751061
ref: 14075
CAP-ASSY
€ 128.00
16160
161601092
ref: 16160
BODY,THERMOSTAT,LWR
€ 45.50
16160A
161601129
ref: 16160A
BODY,THERMOSTAT,UPP
€ 39.00
16160B
161601151
ref: 16160B
UK
BODY,FILTER
€ 6.50
26011
260111360
ref: 26011
WIRE-LEAD,GROUND
€ 3.00
27010
270101180
ref: 27010
SWITCH,FAN
€ 104.50
32033
320331593
ref: 32033
PIPE
€ 91.50
32033A
320331594
ref: 32033A
EUFGITST
PIPE
€ 72.00
39060
390601067
ref: 39060
RADIATOR
€ 557.00
39062
390621111
ref: 39062
HOSE-COOLING,PUMP-CYL
€ 21.00
39062A
390621113
ref: 39062A
HOSE-COOLING
€ 13.00
39062B
390621114
ref: 39062B
EUFGITST
HOSE-COOLING
€ 24.50
39062C
390621115
ref: 39062C
HOSE-COOLING
€ 18.00
39062D
390621116
ref: 39062D
HOSE-COOLING
€ 18.00
39062E
390621130
ref: 39062E
HOSE-COOLING
€ 12.00
39062F
390621213
ref: 39062F
UK
HOSE-COOLING,RADIATOR
€ 17.00
39062G
390621293
ref: 39062G
UK
HOSE-COOLING
€ 5.50
39062H
390621308
ref: 39062H
UK
HOSE-COOLING,CARB-CHE
€ 5.50
39062I
390621310
ref: 39062I
UK
HOSE-COOLING,HEAD PIP
€ 9.00
39062J
390621346
ref: 39062J
UK
HOSE-COOLING
€ 14.00
39062K
390621347
ref: 39062K
UK
HOSE-COOLING
€ 3.00
39192
391921016
ref: 39192
UK
PIPE-WATER
€ 22.00
39192A
391921018
ref: 39192A
UK
PIPE-WATER
€ 37.50
120
120S0612
ref: 120
BOLT-SOCKET
€ 1.50
132
132E0620
ref: 132
BOLT-FLANGED-SMALL
€ 2.00
132A
132J0610
ref: 132A
BOLT-FLANGED-SMALL,6X
€ 1.50
132B
132J0612
ref: 132B
BOLT-FLANGED-SMALL
€ 2.50
132C
132J0625
ref: 132C
BOLT-FLANGED-SMALL
€ 2.50
132D
132J0645
ref: 132D
BOLT-FLANGED-SMALL
€ 3.00
132E
132J0825
ref: 132E
BOLT-FLANGED-SMALL
€ 2.50
186
186C0614
ref: 186
BOLT-UPSET-WP
€ 2.50
43078
430781062
ref: 43078
RESERVOIR
€ 32.50
49019
490191068
ref: 49019
UK
FILTER-FUEL
€ 4.00
49044
490441054
ref: 49044
PUMP-WATER
€ 288.50
49054
490541055
ref: 49054
THERMOSTAT
€ 39.50
49085
490851003
ref: 49085
CAP-ASSY-PRESSURE
€ 23.50
49116
491161076
ref: 49116
UK
VALVE-ASSY,CHECK
€ 134.00
59502
595021057
ref: 59502
FAN-ASSY
€ 417.00
92015
920151487
ref: 92015
NUT
€ 3.00
92022
25009004
ref: 92022
WASHER,5.2X16X1.2T
€ 2.50
92022A
920221627
ref: 92022A
WASHER,6MM
€ 4.00
92027
920271134
ref: 92027
COLLAR,FUEL TANK FITT
€ 7.00
92037
920371069
ref: 92037
CLAMP,L=60
€ 1.50
92037A
920371461
ref: 92037A
UK
CLAMP,TUBE
€ 1.00
92037B
92037147
ref: 92037B
CLAMP,CHAIN OILER
€ 4.50
92037C
920371861
ref: 92037C
CLAMP
€ 5.50
92037C
920371861
ref: 92037C
UK
CLAMP
€ 5.50
92037D
920371985
ref: 92037D
CLAMP,COOLING HOSE
€ 7.50
92037E
920371986
ref: 92037E
UK
CLAMP,COOLING HOSE
€ 13.00
92037E
920371986
ref: 92037E
EUFGITST
CLAMP,COOLING HOSE
€ 13.00
92039
920391038
ref: 92039
RIVET
€ 2.00
92055
920551081
ref: 92055
RING-O,FORK TOP
€ 3.00
92055A
920551266
ref: 92055A
RING-O,33.8MM
€ 12.00
92055B
920551279
ref: 92055B
RING-O,45MM
€ 4.50
92055C
920551315
ref: 92055C
RING-O,WATER PUMP
€ 8.00
92066
920661183
ref: 92066
PLUG,SENSOR WATER
€ 38.00
92093
920931189
ref: 92093
SEAL,RADIATOR COVER
€ 16.50
92150
921501187
ref: 92150
BOLT,6X16
€ 2.50
92160
921601007
ref: 92160
DAMPER
€ 3.50
186A
186C0650
ref: 186A
BOLT-UPSET-WP
€ 2.00
670
670B2016
ref: 670
O RING,16MM
€ 1.00
