OIL PUMP
ZX600A5A GPZ600A 1989 EUROPE UK FG IT ST

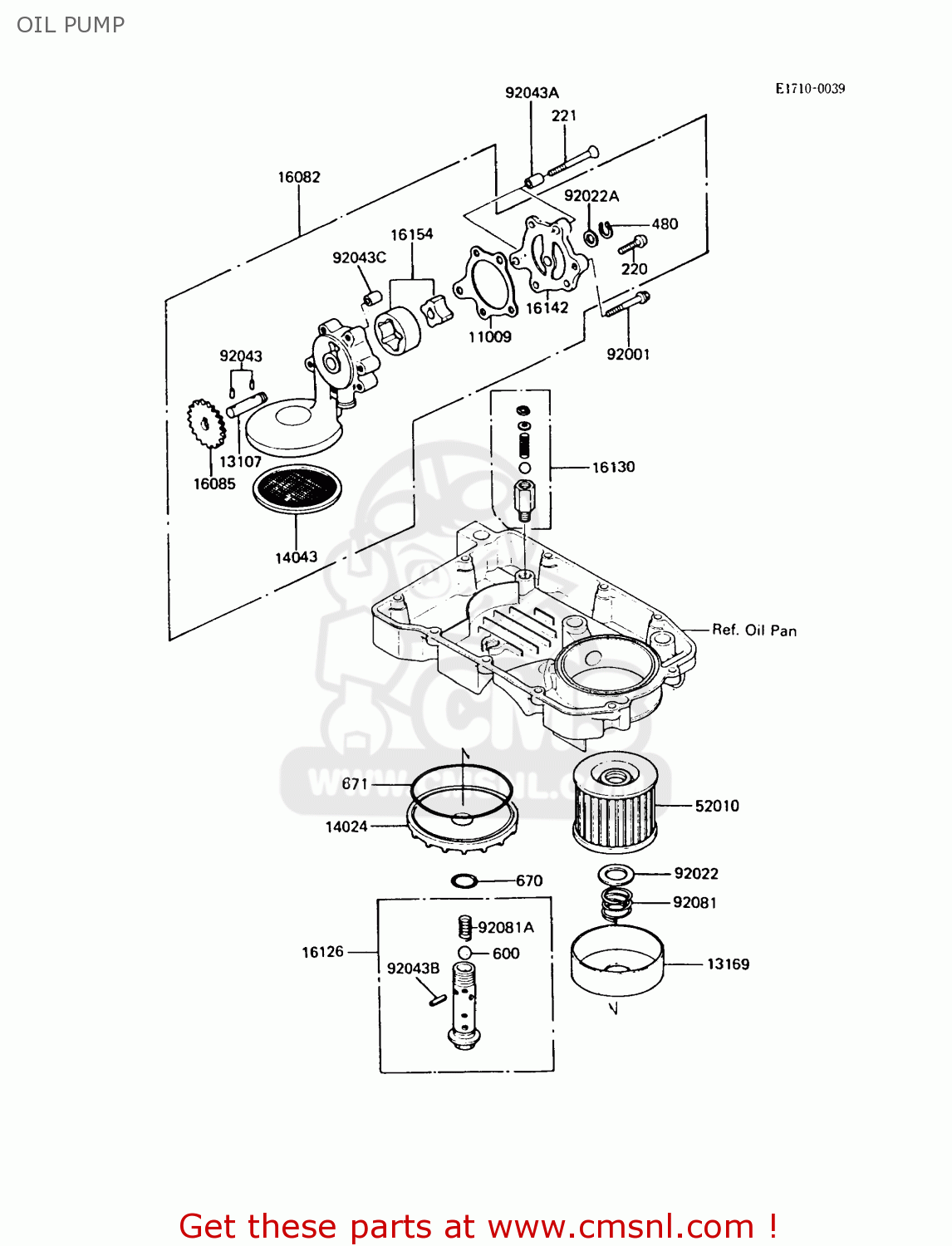

Oil pump diagram ZX600A5A GPZ600A 1989 EUROPE UK FG IT ST
OIL PUMP ZX600A5A GPZ600A 1989 EUROPE UK FG IT ST
×
prices are in EUR
ref
part #
description
quantity
220
220B0622
ref: 220
SCREW-PAN HEAD,6X22
€ 2.50
221
221B0655
ref: 221
SCREW,COUNTERSUNK HED
€ 3.00
480
480J1100
ref: 480
CIRCLIP-TYPE-C,11MM
€ 0.50
600
600A1200
ref: 600
BALL-STEEL,3/8
€ 0.50
670
670B2016
ref: 670
O RING,16MM
€ 1.00
671
671B2590
ref: 671
O RING,90MM
€ 6.50
11009
16145004
ref: 11009
GASKET,OIL PUMP COVER (NAS)
€ 2.50
13107
16086004
ref: 13107
SHAFT,OIL PUMP
€ 17.00
13169
131691110
ref: 13169
PLATE,OIL FILTER
€ 4.50
14024
16101004
ref: 14024
COVER,OIL FILTER
€ 31.00
14043
16111004
ref: 14043
FILTER,OIL PUMP
€ 23.50
16082
16082064
ref: 16082
PUMP-ASSY-OIL
€ 165.00
16085
16085025
ref: 16085
GEAR, OIL PUMP, 57T
€ 31.50
16126
161261108
ref: 16126
VALVE,OIL FILTER
€ 29.00
16130
161301001
ref: 16130
VALVE-ASSY-RELIEF
€ 28.50
16142
16142005
ref: 16142
COVER-PUMP
€ 24.00
16154
16154003
ref: 16154
ROTOR-PUMP
€ 47.50
52010
16099003
ref: 52010
FILTER,OIL
€ 6.50
92001
92001165
ref: 92001
BOLT,HEX HEAD,6X45
€ 3.00
92022
920221012
ref: 92022
WASHER,20.5X30X1
€ 3.00
92022A
92022311
ref: 92022A
WASHER,PLAIN
€ 2.50
92043
92042041
ref: 92043
PIN,DOWEL
€ 4.50
92043A
92042050
ref: 92043A
PIN, DOWEL, 6.2X8X28
€ 2.50
92043B
92043111
ref: 92043B
SPRING PIN
€ 4.00
92043C
920431302
ref: 92043C
PIN,DOWEL,8X10
€ 1.00
92081
920811018
ref: 92081
SPRING,OIL FILTER
€ 3.00
92081A
92081109
ref: 92081A
SPRING
€ 7.50
