METER(S)

ZX600A5A GPZ600A 1989 EUROPE UK FG IT ST

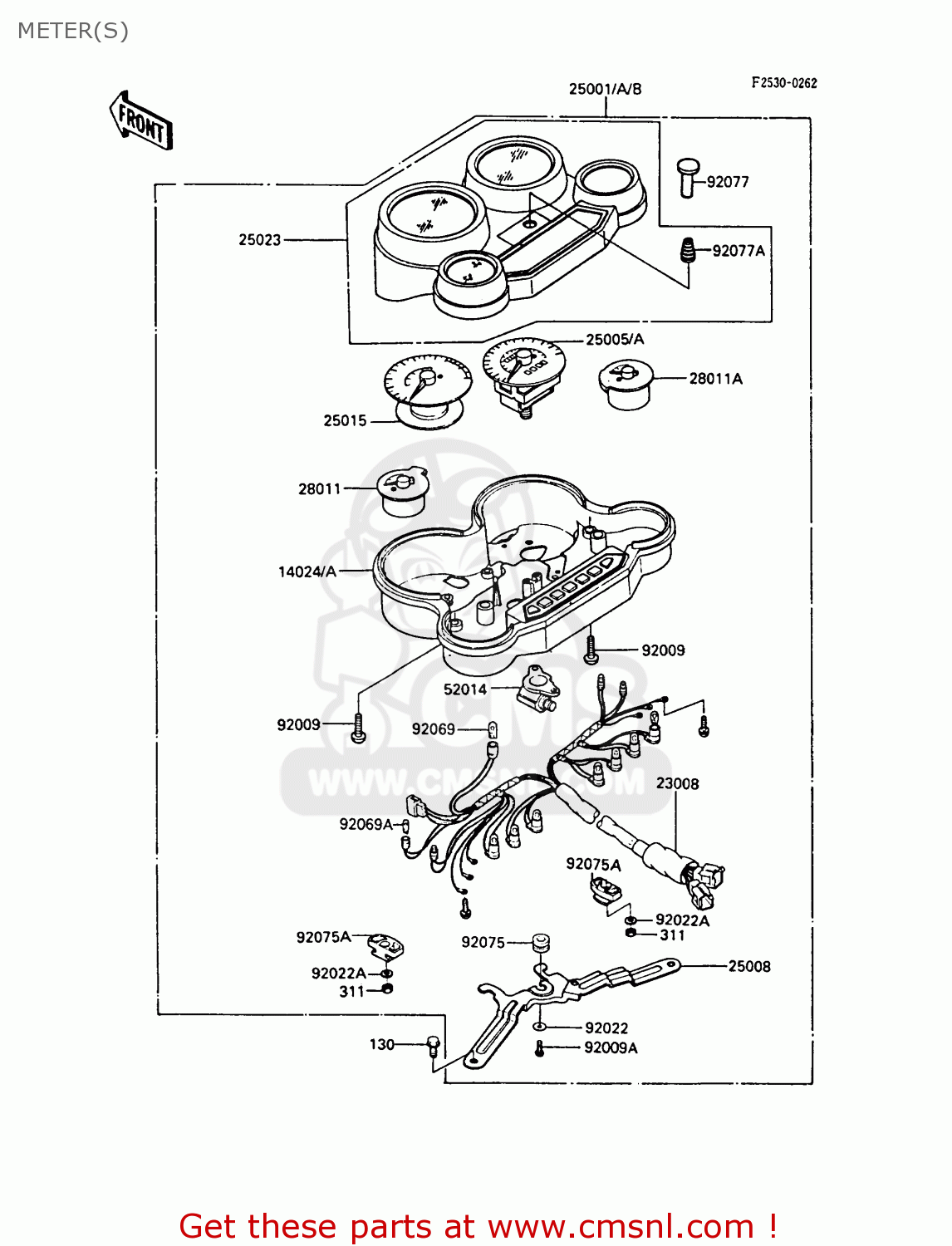

Meter(s) diagram ZX600A5A GPZ600A 1989 EUROPE UK FG IT ST

METER(S) ZX600A5A GPZ600A 1989 EUROPE UK FG IT ST
METER(S) ZX600A5A GPZ600A 1989 EUROPE UK FG IT ST
METER(S) ZX600A5A GPZ600A 1989 EUROPE UK FG IT ST
prices are in EUR
ref
part #
description
quantity
130
130C0614
ref: 130
BOLT-FLANGED,6X14
130C0614
€ 1.50
311
311B0500
ref: 311
NUT-HEX
311B0500
€ 0.50
14024
140241678
ref: 14024
COVER,METER HOUSING
140241678
€ 35.50
23008
230081391
ref: 23008
SOCKET-ASSY,METER
230081391
€ 116.50
25001
250011749
ref: 25001
EUFGITST
METER-ASSY,KPH
€ 2,331.50
25001A
250011750
ref: 25001A
UK
METER-ASSY,MPH
€ 1,636.00
25005
250051406
ref: 25005
EUFGITST
SPEEDOMETER,KPH
€ 154.00
25005A
250051407
ref: 25005A
UK
SPEEDOMETER,MPH
€ 154.00
25008
250081119
ref: 25008
BRACKET-METER
250081119
€ 17.50
25015
250151278
ref: 25015
TACHOMETER,X1000R/MIN
250151278
€ 147.50
25023
250231162
ref: 25023
COVER-METER CASE
250231162
€ 79.00
28011
280111108
ref: 28011
METER,FUEL
280111108
€ 118.00
28011A
280111109
ref: 28011A
METER,TEMP
280111109
€ 114.50
52014
520141006
ref: 52014
ELBOW,SPEEDOMETER GEA
520141006
€ 35.00
92009
920091158
ref: 92009
SCREW,4X16,BLACK
920091158
€ 2.50
92009A
920091326
ref: 92009A
SCREW,3X12
920091326
€ 2.50
92022
920221374
ref: 92022
WASHER,3MM
920221374
€ 2.00
92022A
92022263
ref: 92022A
WASHER,PLAIN,6MM
92022263
€ 1.50
92069
920691007
ref: 92069
BULB,12V3.4W
920691007
€ 2.50
92069A
920691020
ref: 92069A
BULB,12C3W T-7
920691020
€ 3.00
92075
920751435
ref: 92075
DAMPER,METER BRACKET
920751435
€ 4.00
92075A
920751495
ref: 92075A
DAMPER,METER BRACKET
920751495
€ 8.00
92077
920771083
ref: 92077
KNOB,TRIP RESET
920771083
€ 6.00
92077A
920771087
ref: 92077A
KNOB,TRIP RESET
920771087
€ 6.00
