RADIATOR

ZX600A5 GPZ600A 1989 EUROPE UK FG IT SD ST

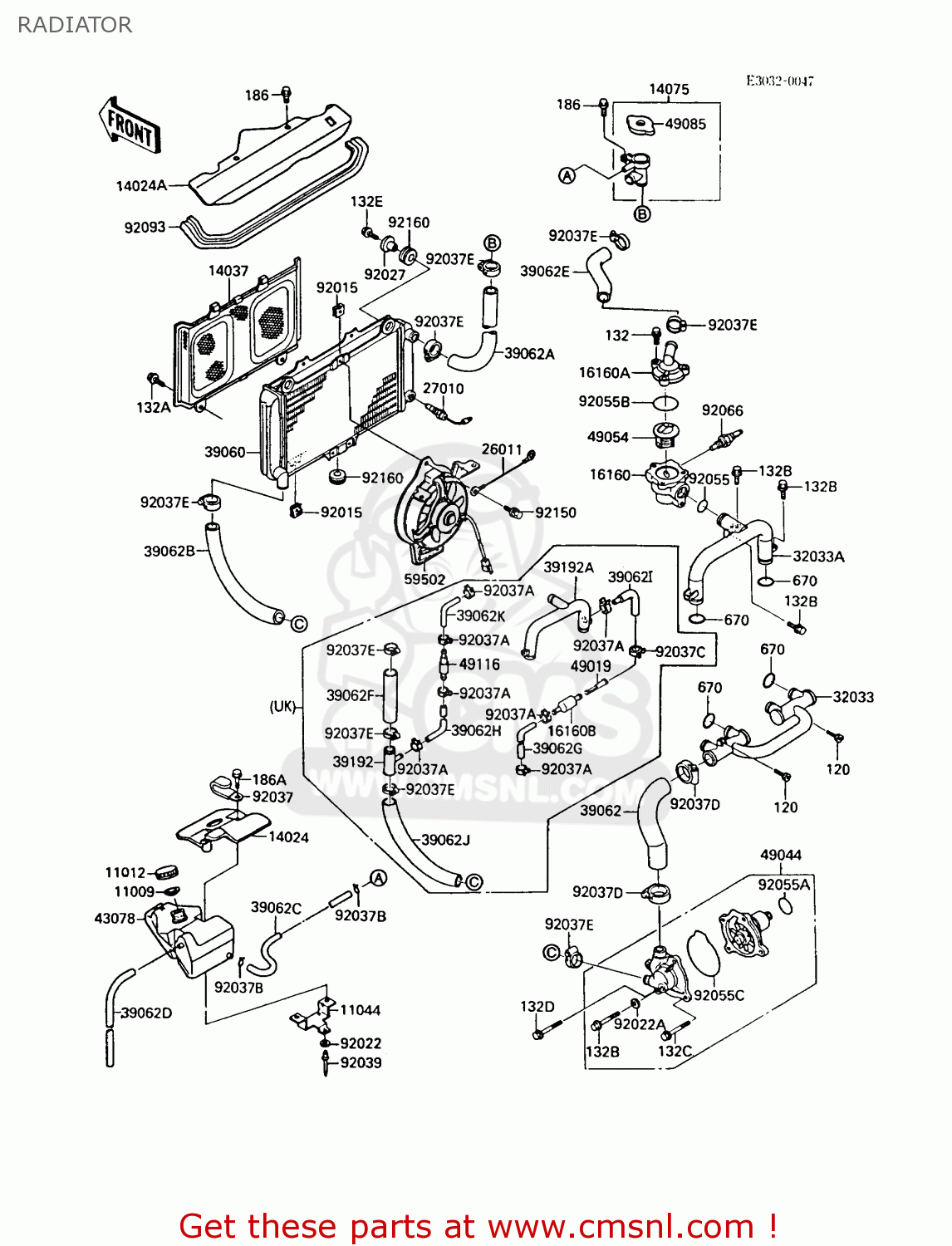

Radiator diagram ZX600A5 GPZ600A 1989 EUROPE UK FG IT SD ST

RADIATOR ZX600A5 GPZ600A 1989 EUROPE UK FG IT SD ST
RADIATOR ZX600A5 GPZ600A 1989 EUROPE UK FG IT SD ST
RADIATOR ZX600A5 GPZ600A 1989 EUROPE UK FG IT SD ST
prices are in EUR
ref
part #
description
quantity
11009
110091145
ref: 11009
GASKET,RESERVOIR TANK (NAS)
110091145
€ 1.00
11012
110121084
ref: 11012
CAP
110121084
€ 1.50
11044
110441170
ref: 11044
BRACKET,RESERVOIR
110441170
€ 7.50
14024
140241090
ref: 14024
COVER,RESERVOIR
140241090
€ 8.50
14024A
140241137
ref: 14024A
COVER,RADIATOR
140241137
€ 15.50
14037
140371083
ref: 14037
SCREEN
140371083
€ 69.50
14075
140751061
ref: 14075
CAP-ASSY
140751061
€ 128.00
16160
161601092
ref: 16160
BODY,THERMOSTAT,LWR
161601092
€ 45.50
16160A
161601129
ref: 16160A
BODY,THERMOSTAT,UPP
€ 39.00
16160B
161601151
ref: 16160B
UK
BODY,FILTER
161601151
€ 6.50
26011
260111360
ref: 26011
WIRE-LEAD,GROUND
€ 3.00
27010
270101180
ref: 27010
SWITCH,FAN
270101180
€ 104.50
32033
320331593
ref: 32033
PIPE
€ 91.50
32033A
320331594
ref: 32033A
EUFGITSDST
PIPE
€ 72.00
39060
390601067
ref: 39060
RADIATOR
390601067
€ 557.00
39062
390621111
ref: 39062
HOSE-COOLING,PUMP-CYL
390621111
€ 21.00
39062A
390621113
ref: 39062A
HOSE-COOLING
390621113
€ 13.00
39062B
390621114
ref: 39062B
EUFGITSDST
HOSE-COOLING
390621114
€ 24.50
39062C
390621115
ref: 39062C
HOSE-COOLING
€ 18.00
39062D
390621116
ref: 39062D
HOSE-COOLING
€ 18.00
39062E
390621130
ref: 39062E
HOSE-COOLING
390621130
€ 12.00
39062F
390621213
ref: 39062F
UK
HOSE-COOLING,RADIATOR
390621213
€ 17.00
39062G
390621293
ref: 39062G
UK
HOSE-COOLING
€ 5.50
39062H
390621308
ref: 39062H
UK
HOSE-COOLING,CARB-CHE
€ 5.50
39062I
390621310
ref: 39062I
UK
HOSE-COOLING,HEAD PIP
390621310
€ 9.00
39062J
390621346
ref: 39062J
UK
HOSE-COOLING
390621346
€ 14.00
39062K
390621347
ref: 39062K
UK
HOSE-COOLING
€ 3.00
39192
391921016
ref: 39192
UK
PIPE-WATER
€ 22.00
39192A
391921018
ref: 39192A
UK
PIPE-WATER
391921018
€ 37.50
120
120S0612
ref: 120
BOLT-SOCKET
120S0612
€ 1.50
132
132E0620
ref: 132
BOLT-FLANGED-SMALL
132E0620
€ 2.00
132A
132J0610
ref: 132A
BOLT-FLANGED-SMALL,6X
132J0610
€ 1.50
132B
132J0612
ref: 132B
BOLT-FLANGED-SMALL
132J0612
€ 2.50
132C
132J0625
ref: 132C
BOLT-FLANGED-SMALL
132J0625
€ 2.50
132D
132J0645
ref: 132D
BOLT-FLANGED-SMALL
€ 3.00
132E
132J0825
ref: 132E
BOLT-FLANGED-SMALL
132J0825
€ 2.50
186
186C0614
ref: 186
BOLT-UPSET-WP
€ 2.50
43078
430781062
ref: 43078
RESERVOIR
430781062
€ 32.50
49019
490191068
ref: 49019
UK
FILTER-FUEL
490191068
€ 4.00
49044
490441054
ref: 49044
PUMP-WATER
490441054
€ 288.50
49054
490541055
ref: 49054
THERMOSTAT
490541055
€ 39.50
49085
490851003
ref: 49085
CAP-ASSY-PRESSURE
490851003
€ 23.50
49116
491161076
ref: 49116
UK
VALVE-ASSY,CHECK
€ 134.00
59502
595021057
ref: 59502
FAN-ASSY
595021057
€ 417.00
92015
920151487
ref: 92015
NUT
920151487
€ 3.00
92022
25009004
ref: 92022
WASHER,5.2X16X1.2T
25009004
€ 2.50
92022A
920221627
ref: 92022A
WASHER,6MM
920221627
€ 4.00
92027
920271134
ref: 92027
COLLAR,FUEL TANK FITT
920271134
€ 7.00
92037
920371069
ref: 92037
CLAMP,L=60
920371069
€ 1.50
92037A
920371461
ref: 92037A
UK
CLAMP,TUBE
920371461
€ 1.00
92037B
92037147
ref: 92037B
CLAMP,CHAIN OILER
92037147
€ 4.50
92037C
920371861
ref: 92037C
CLAMP
920371861
€ 5.50
92037C
920371861
ref: 92037C
UK
CLAMP
920371861
€ 5.50
92037D
920371985
ref: 92037D
CLAMP,COOLING HOSE
€ 7.50
92037E
920371986
ref: 92037E
EUFGITSDST
CLAMP,COOLING HOSE
€ 13.00
92037E
920371986
ref: 92037E
UK
CLAMP,COOLING HOSE
€ 13.00
92039
920391038
ref: 92039
RIVET
920391038
€ 2.00
92055
920551081
ref: 92055
RING-O,FORK TOP
920551081
€ 3.00
92055A
920551266
ref: 92055A
RING-O,33.8MM
920551266
€ 12.00
92055B
920551279
ref: 92055B
RING-O,45MM
920551279
€ 4.50
92055C
920551315
ref: 92055C
RING-O,WATER PUMP
920551315
€ 8.00
92066
920661183
ref: 92066
PLUG,SENSOR WATER
920661183
€ 38.00
92093
920931189
ref: 92093
SEAL,RADIATOR COVER
920931189
€ 16.50
92150
921501187
ref: 92150
BOLT,6X16
€ 2.50
92160
921601007
ref: 92160
DAMPER
921601007
€ 3.50
186A
186C0650
ref: 186A
BOLT-UPSET-WP
€ 2.00
670
670B2016
ref: 670
O RING,16MM
670B2016
€ 1.00
