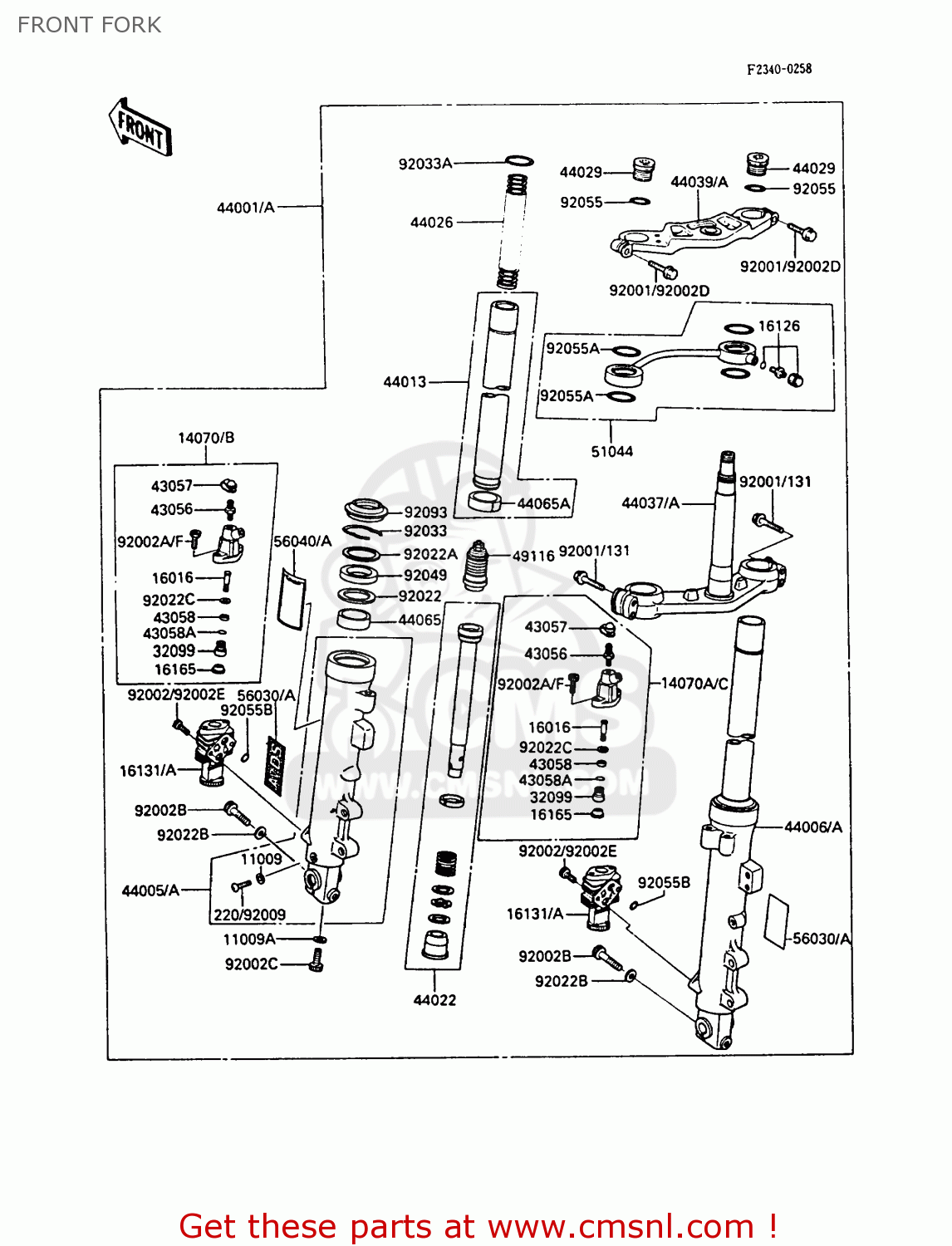

FRONT FORK

ref

part #

description

quantity

11009

44045002
ref: 11009

GASKET,FORK DRAIN PLU (NAS)

€ 3.00

11009A

44045057
ref: 11009A

GASKET (NAS)

€ 3.00

14070B

140701073
ref: 14070B

BODY-BREATHER,ANTI-DI

€ 127.50

14070C

140701074
ref: 14070C

BODY-BREATHER,ANTI-DI

€ 166.00

16016

160161067
ref: 16016

PLUNGER,ANTI-DIVE

€ 23.00

16126

161261052
ref: 16126

VALVE,AIR

€ 22.00

16131A

161311067
ref: 16131A

BODY-VALVE,FORK,ANTI-

€ 167.50

16165

161651051
ref: 16165

SEPARATOR,ANTI-DIVE

€ 6.00

32099

320991067
ref: 32099

CASE,PLUG,ANTI-DIVE

€ 29.00

43056

43056003
ref: 43056

BREATHER-BRAKE

€ 16.50

43057

43057003
ref: 43057

CAP-BREATHER

€ 3.00

43058

430581052
ref: 43058

RING,SEAL,14X18X2.5

€ 3.50

43058A

430581053
ref: 43058A

RING,SEAL,6.2X11X3.2

€ 2.50

44001A

440011698
ref: 44001A

FORK-FRONT

€ 1,181.50

44005A

440051281
ref: 44005A

PIPE-LEFT FORK OUTER

€ 246.00

44006A

440061278
ref: 44006A

PIPE-RIGHT FORK OUTER

€ 231.50

44013

440131231
ref: 44013

PIPE-FORK INNER

€ 134.00

44022

440221181
ref: 44022

CYLINDER-FORK

€ 77.00

44026

440261302
ref: 44026

SPRING-FRONT FORK,K=0

€ 56.00

44029

440291121
ref: 44029

SEAT-FORK SPRING

€ 24.00

44037A

440371239
ref: 44037A

HOLDER-FORK UNDER

€ 181.50

44039A

440391178
ref: 44039A

HOLDER-FORK UPPER

€ 134.00

44065

440651051
ref: 44065

BUSHING-FRONT FORK

€ 15.00

44065A

440651058
ref: 44065A

BUSHING-FRONT FORK,IN

€ 20.00

49116

491161058
ref: 49116

VALVE-ASSY,FORK

€ 80.00

51044

510441069
ref: 51044

TUBE-ASSY

€ 73.50

56030A

560301101
ref: 56030A

LABEL,AVDS MARK

€ 2.50

56040A

560401119
ref: 56040A

LABEL-WARNING,SHOCKAB

€ 2.50

92002

920021166
ref: 92002

BOLT,SOCKET,6X16

€ 4.50

130

130J0840
ref: 130

BOLT-FLANGED,8X40

€ 3.00

92002A

920021289
ref: 92002A

BOLT,SOCKET,5X12

€ 2.50

92002B

920021316
ref: 92002B

BOLT

€ 3.50

92002C

920021317
ref: 92002C

BOLT

€ 4.50

92002D

920021476
ref: 92002D

BOLT,FLANGED,8X40

€ 6.50

92009

920091324
ref: 92009

SCREW,4X8

€ 2.50

92022

920221455
ref: 92022

WASHER,FORK OUTER PIP

€ 4.50

92022A

920221524
ref: 92022A

WASHER,FORK OUTER PIP

€ 3.50

92022B

920221598
ref: 92022B

WASHER

€ 4.50

92022C

920221636
ref: 92022C

WASHER,6.5X18X1

€ 2.50

92033

920331047
ref: 92033

SNAP RING,FORK OUTER

€ 4.00

92033A

920331202
ref: 92033A

RING-SNAP

€ 4.50

92049

920491177
ref: 92049

SEAL-OIL,FORK

€ 15.00

92055

920551051
ref: 92055

ORING,FORK TOP CAP

€ 3.50

92055A

920551164
ref: 92055A

RING-O,TUBE ASSY

€ 5.50

92055B

920551201
ref: 92055B

RING-O,AND

€ 1.00

92093

920931160
ref: 92093

SEAL,FORK

€ 16.50

all assemblies
