CRANKSHAFT

ZX600A5 GPZ600A 1989 EUROPE UK FG IT SD ST

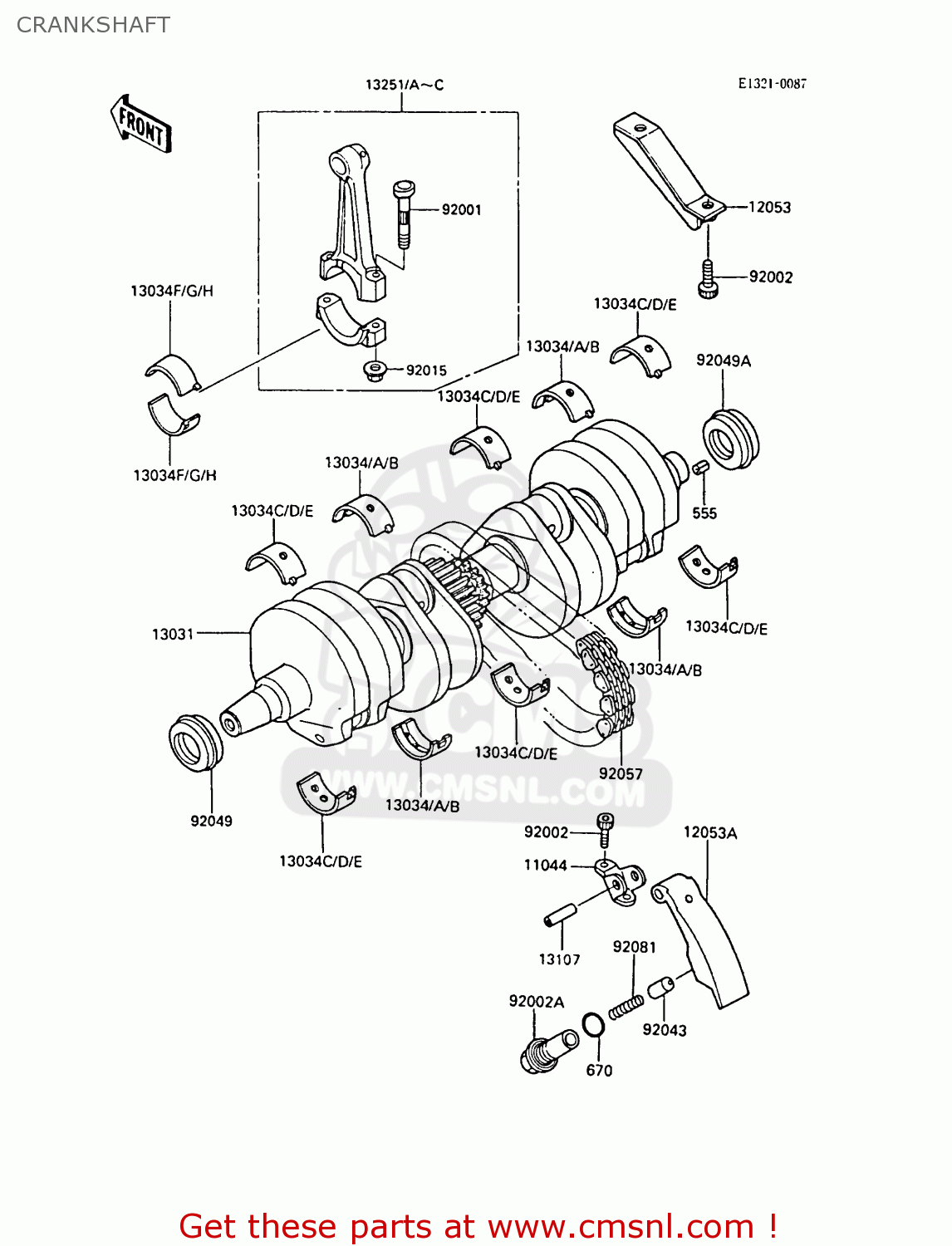

Crankshaft diagram ZX600A5 GPZ600A 1989 EUROPE UK FG IT SD ST

CRANKSHAFT ZX600A5 GPZ600A 1989 EUROPE UK FG IT SD ST
CRANKSHAFT ZX600A5 GPZ600A 1989 EUROPE UK FG IT SD ST
CRANKSHAFT ZX600A5 GPZ600A 1989 EUROPE UK FG IT SD ST
prices are in EUR
ref
part #
description
quantity
555
555A0408
ref: 555
PIN-SPRING,4X8
555A0408
€ 2.50
670
670B2016
ref: 670
O RING,16MM
670B2016
€ 1.00
11044
110441075
ref: 11044
BRACKET,CHAIN GUIDE
€ 4.00
12053
120531156
ref: 12053
GUIDE-CHAIN,UPP
120531156
€ 24.00
12053A
120531157
ref: 12053A
GUIDE-CHAIN,LWR
120531157
€ 31.50
13031
130311245
ref: 13031
CRANKSHAFT-COMP
130311245
€ 1,630.50
13034
130341016
ref: 13034
METAL,CRANKSHAFT,BROW
130341016
€ 13.00
13034A
130341017
ref: 13034A
METAL,CRANKSHAFT,BLAC
130341017
€ 13.00
13034B
130341018
ref: 13034B
METAL,CRANKSHAFT,BLUE
130341018
€ 13.00
13034C
130341064
ref: 13034C
BUSHING,CRANKSHAFT,BL
130341064
€ 13.00
13034D
130341065
ref: 13034D
BUSHING,CRANKSHAFT,BL
130341065
€ 13.00
13034E
130341066
ref: 13034E
BUSHING,CRANKSHAFT,BR
130341066
€ 13.00
13034F
130341067
ref: 13034F
BUSHING,CONNECTING RO
130341067
€ 13.00
13034G
130341068
ref: 13034G
BUSHING,CONNECTING RO
130341068
€ 13.00
13034H
130341069
ref: 13034H
BUSHING,CONNECTING RO
130341069
€ 13.00
13107
131071142
ref: 13107
SHAFT,L=24.5
131071142
€ 5.50
13251
132511081HH
ref: 13251
ROD-ASSY-CONNECTING,H
€ 139.00
13251A
132511081II
ref: 13251A
ROD-ASSY-CONNECTING,I
132511081II
€ 139.00
13251B
132511081JJ
ref: 13251B
ROD-ASSY-CONNECTING,J
132511081JJ
€ 139.00
13251C
132511081KK
ref: 13251C
ROD-ASSY-CONNECTING,K
132511081KK
€ 139.00
92001
920011887
ref: 92001
BOLT,CONNECTING ROD,8
920011887
€ 6.00
92002
920021192
ref: 92002
BOLT,SOCKET,6X14
920021192
€ 3.00
92002A
920021479
ref: 92002A
BOLT
€ 16.00
92015
920151311
ref: 92015
NUT,FLANGED,8MM
920151311
€ 4.50
92043
92043076
ref: 92043
PIN-NEUTRAL PISTON
92043076
€ 8.00
92049
920491013
ref: 92049
OIL SEAL,HSCY25X36X7
920491013
€ 8.00
92049A
92050081
ref: 92049A
OIL SEAL, HSCY 25397
92050081
€ 8.00
92057
920571011
ref: 92057
CHAIN,PRIMARY DRIVE
920571011
€ 46.50
92081
92081112
ref: 92081
SPRING
92081112
€ 4.00
