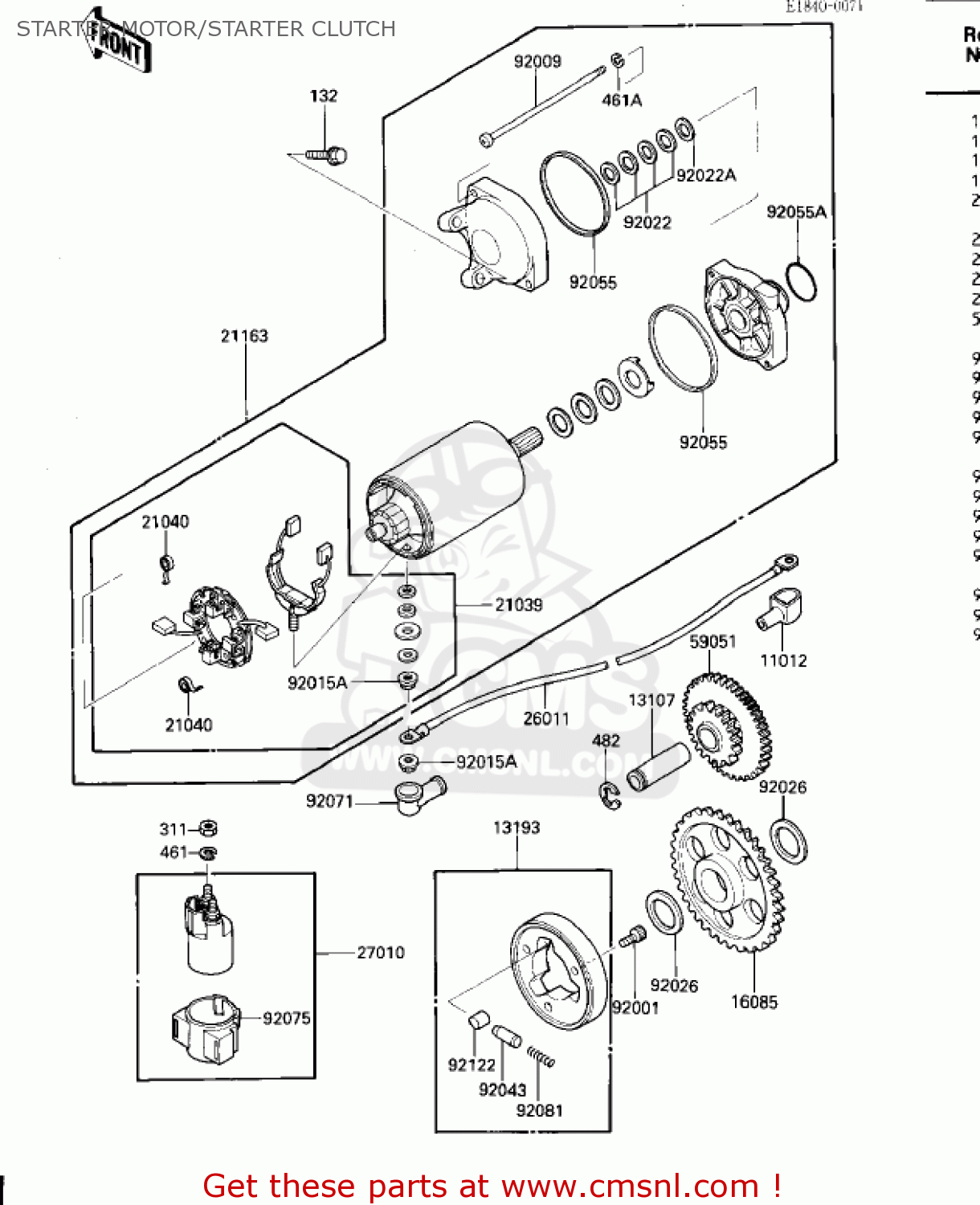

STARTER MOTOR/STARTER CLUTCH

ref

part #

description

quantity

11012

110121354
ref: 11012

CAP,TERMINAL

€ 7.00

13107

131071144
ref: 13107

SHAFT,IDLE GEAR

€ 10.00

13193

131931002
ref: 13193

CLUTCH-ASSY-ONEWAY

€ 96.00

16085

160851030
ref: 16085

GEAR,ONEWAY CLUTCH

€ 97.50

21039

210391053
ref: 21039

BRUSH,CARBON

€ 89.50

21040

210401003
ref: 21040

SPRING-BRUSH

€ 6.00

21163

211631072
ref: 21163

STARTER-ELECTRIC

€ 199.00

26011

260111251
ref: 26011

WIRE-LEAD,STARTER MOT

€ 55.50

27010

270101209
ref: 27010

SWITCH,MAGNETIC

€ 110.50

59051

590511138
ref: 59051

GEAR-SPUR,IDLE

€ 99.50

92001

920011424
ref: 92001

BOLT,SOCKET,8X10

€ 3.00

92009

920091397
ref: 92009

SCREW

€ 4.50

92015

920151476
ref: 92015

NUT,6MM

€ 2.50

92022

21025011
ref: 92022

WASHER, THRUST, 0.2T

€ 4.00

92022A

920221132
ref: 92022A

WASHER,9.1X18X0.8

€ 4.00

92026

920261025
ref: 92026

SPACER,25X36X3.2

€ 3.50

92043

92043132
ref: 92043

PIN

€ 4.00

92055

920551086
ref: 92055

O RING,64MM

€ 6.50

92055A

920551276
ref: 92055A

RING-O

€ 6.50

92071

21017017
ref: 92071

GROMMET-CORD

€ 6.50

92075

21064002
ref: 92075

DAMPER,MAGNETIC SWITC

€ 13.50

92081

92081159
ref: 92081

SPRING, COIL

€ 2.50

92122

92122006
ref: 92122

ROLLER

€ 4.00

132

132J0625
ref: 132

BOLT-FLANGED-SMALL

€ 2.50

311

311B0600
ref: 311

NUT,6MM

€ 0.50

461

461F0600
ref: 461

WASHER-SPRING,6MM

€ 0.50

461A

461K0500
ref: 461A

WASHER-SPRING,5MM,BLA

€ 0.50

482

482J0300
ref: 482

CIRCLIP-TYPE-E

€ 2.00
