CYLINDER/PISTON (-E/NO.037152)

ZX600A1 NINJA 600 1985 USA CALIFORNIA CANADA

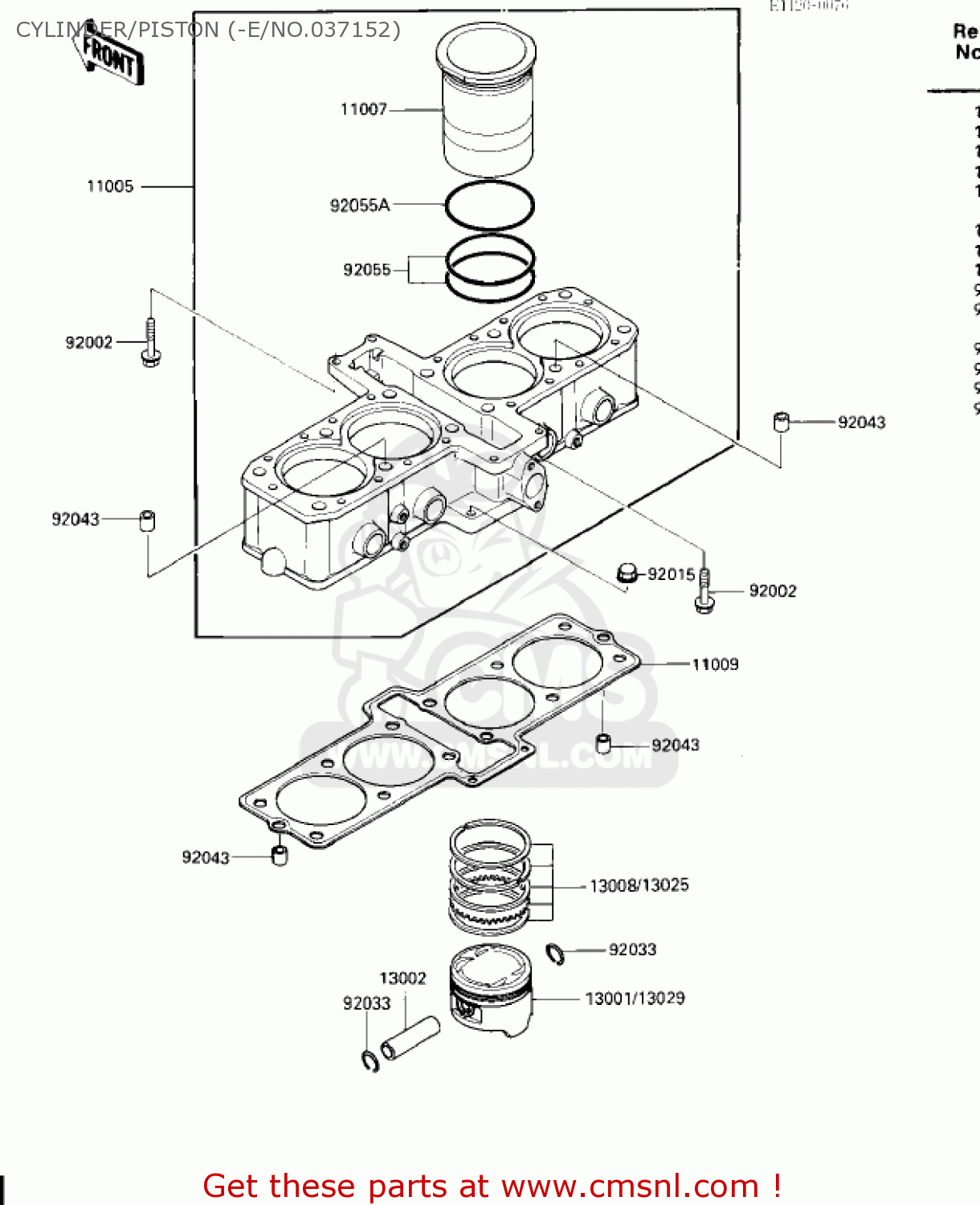

Cylinder/piston (-e/no.037152) diagram ZX600A1 NINJA 600 1985 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

11005

110051493
ref: 11005

CYLINDER-ENGINE

€ 972.50

11007

110071086
ref: 11007

LINER-CYLINDER

€ 92.50

11009

110091578
ref: 11009

GASKET,CYLINDER BASE (NAS)

€ 22.00

13001

130011233
ref: 13001

PISTON-ENGINE,STD

€ 46.50

13002

130021057
ref: 13002

PIN-PISTON

€ 13.00

13008

130081074
ref: 13008

RING-SET-PISTON,STD

€ 49.00

13025

130251072
ref: 13025

RING-SET-PISTON L,O/S

€ 58.00

13029

130291149
ref: 13029

PISTON-ENGINE L,O/S 0

€ 52.00

92002

920021104
ref: 92002

BOLT,6X28

€ 3.50

92015

920151170
ref: 92015

NUT,CAP 6MM,BLACK

€ 0.50

92033

920331151
ref: 92033

RING-SNAP,PISTON PIN

€ 2.50

92043

920431264
ref: 92043

PIN,DOWEL,8.2X10X14

€ 0.50

92055

920551287
ref: 92055

RING-O,66.5MM

€ 4.00

92055A

920551310
ref: 92055A

RING-O,65MM

€ 8.00

CYLINDER/PISTON (-E/NO.037152)

all assemblies
