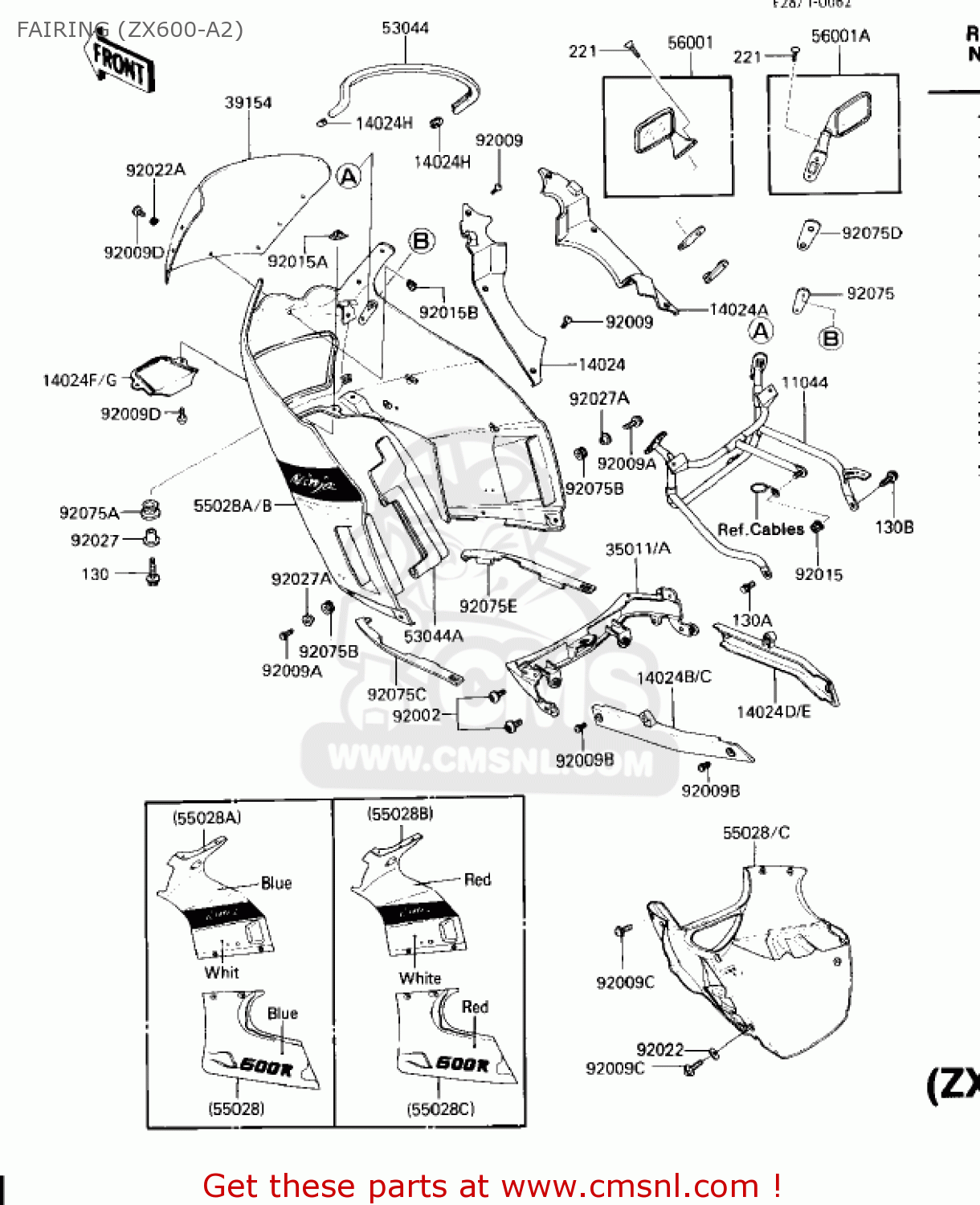

FAIRING (ZX600-A2)

ref

part #

description

quantity

11044

110441076
ref: 11044

BRACKET,COWLING,UPP

€ 189.00

14024

140251726
ref: 14024

COVER,UPP,INNER,LH

€ 48.00

14024A

140251727
ref: 14024A

COVER,UPP,INNER,RH

€ 34.00

14024B

140251732B1
ref: 14024B

COVER,SIDE PANEL,LH,F

€ 76.00

14024C

140251732R6
ref: 14024C

COVER,SIDE PANEL,LH,B

€ 47.50

14024D

140251733B1
ref: 14024D

COVER,SIDE PANEL,RH,F

€ 80.50

14024E

140251733R6
ref: 14024E

COVER,SIDE PANEL,RH,B

€ 93.00

14024F

140251735M4
ref: 14024F

COVER,HEAD LAMP BULB,

€ 31.50

14024G

1402517356L
ref: 14024G

COVER,HEAD LAMP BULB,

€ 33.50

14024H

140251756
ref: 14024H

COVER,TRIM END

€ 4.50

35011

350111246B1
ref: 35011

STAY,COWLING,LWR,F.RE

€ 133.50

35011A

350111246R6
ref: 35011A

STAY,COWLING,LWR,BLUE

€ 185.00

39154

391541105
ref: 39154

WINDSHIELD

€ 279.50

53044

530441120
ref: 53044

TRIM,WINDSHIELD

€ 20.50

53044A

530441135
ref: 53044A

TRIM,COWLING

€ 14.00

55028

550485283M4
ref: 55028

COWLING.,LWR,L.P.BLUE

€ 326.00

55028A

550485275S3
ref: 55028A

COWLING,UPPER,BLUE/WHITE

€ 522.00

55028B

550485276P9
ref: 55028B

COWLING,UPPER,FIRECRACKER RED/PEARL ALPINE WHITE

€ 658.50

55028C

550485286B1
ref: 55028C

COWLING.,LWR,F.RED

€ 326.00

56001

560011250
ref: 56001

MIRROR-ASSY,LH

€ 60.50

56001A

560011251
ref: 56001A

MIRROR-ASSY,RH

€ 62.50

92002

920021588
ref: 92002

BOLT

€ 4.50

92009

920091197
ref: 92009

SCREW

€ 2.50

92009A

920091251
ref: 92009A

SCREW,6X20,BLACK

€ 3.50

92009B

920091287
ref: 92009B

SCREW,6X14

€ 1.50

92009C

920091288
ref: 92009C

SCREW,6X14

€ 2.00

92009D

920091654
ref: 92009D

SCREW

€ 0.50

92015

920151408
ref: 92015

NUT,FLANGED,8MM

€ 1.00

92015A

920151710
ref: 92015A

NUT

€ 4.00

92015B

920151343
ref: 92015B

NUT,5MM,COWLING

€ 3.00

92022

920221346
ref: 92022

WASHER,6.5X20X1.6,BLA

€ 0.50

92022A

920221521
ref: 92022A

WASHER,NYLON,5.3X11.5

€ 2.50

92027

920271134
ref: 92027

COLLAR,FUEL TANK FITT

€ 7.00

92027A

920271935
ref: 92027A

COLLAR,L=9.1,BLACK

€ 4.00

92075

920751492
ref: 92075

DAMPER,MIRROR

€ 5.00

92075A

921601007
ref: 92075A

DAMPER

€ 3.50

92075B

920751634
ref: 92075B

DAMPER

€ 3.00

92075C

920751707
ref: 92075C

DAMPER,COWLING,LH

€ 10.00

92075D

920751745
ref: 92075D

DAMPER,MIRROR

€ 5.00

92075E

920751759
ref: 92075E

DAMPER,COWLING,RH

€ 11.50

130

130J0625
ref: 130

BOLT-FLANGED,6X25

€ 2.00

130A

130C0812
ref: 130A

BOLT-FLANGED,8X12,BLA

€ 0.50

130B

130C0816
ref: 130B

BOLT-FLANGED,8X16,BLA

€ 0.50

221

221C0630
ref: 221

SCREW-CSK-CROS,6X30

€ 1.00
