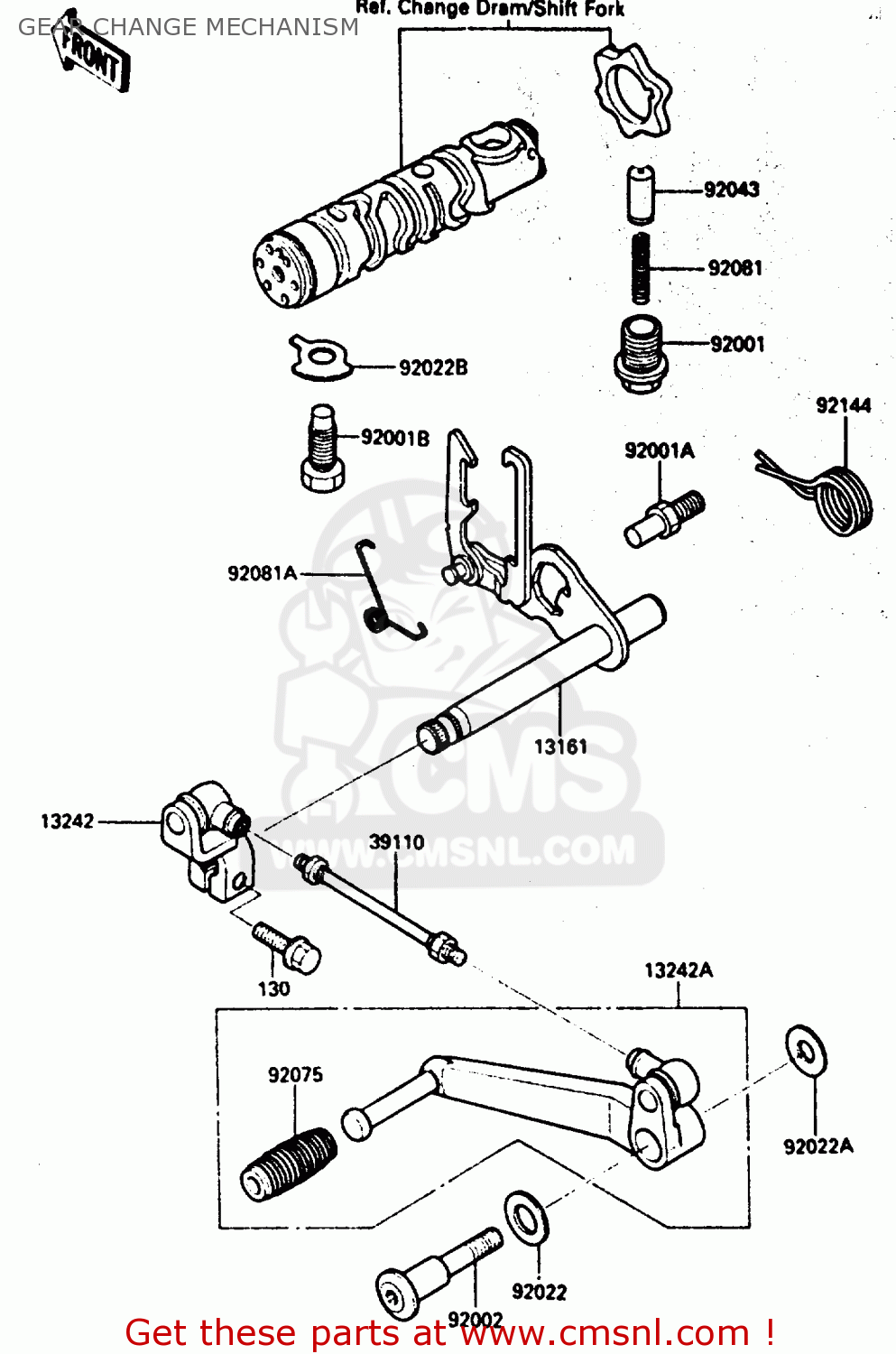

GEAR CHANGE MECHANISM

ref

part #

description

quantity

13161

13161042
ref: 13161

LEVER-COMP-CHANGE SHA

€ 102.50

13242

132421190
ref: 13242

LEVER-ASSY-CHANGE,BOS

€ 21.00

13242A

132421191
ref: 13242A

LEVER-ASSY-CHANGE,PED

€ 42.00

39110

391101010
ref: 39110

ROD-ASSY-TIE,CHANGE L

€ 9.00

92001

920011037
ref: 92001

BOLT,NEUTAL POSITION

€ 9.50

92001A

920011401
ref: 92001A

BOLT,RETURN SPRING

€ 3.00

92001B

92001174
ref: 92001B

BOLT, HEX HEAD, 10X26

€ 4.50

92002

920021773
ref: 92002

BOLT,CHANE PEDAL

€ 15.50

92022

92022072
ref: 92022

WASHER,12.5X22X1.2

€ 2.50

92022A

920221741
ref: 92022A

WASHER,8.3X21X5.0

€ 2.00

92022B

92024074
ref: 92022B

WASHER,LOCK,10MM

€ 2.50

92043

92043076
ref: 92043

PIN-NEUTRAL PISTON

€ 8.00

92075

13157007
ref: 92075

RUBBER, SHIFT PEDAL

€ 3.50

92081

92081112
ref: 92081

SPRING

€ 4.00

92081A

92083018
ref: 92081A

SPRING-KICK PAWL

€ 6.00

92144

921441074
ref: 92144

SPRING,CHANGE PEDAL R

€ 6.50

130

130S0620
ref: 130

BOLT-FLANGED,6X20,BLA

€ 2.50
