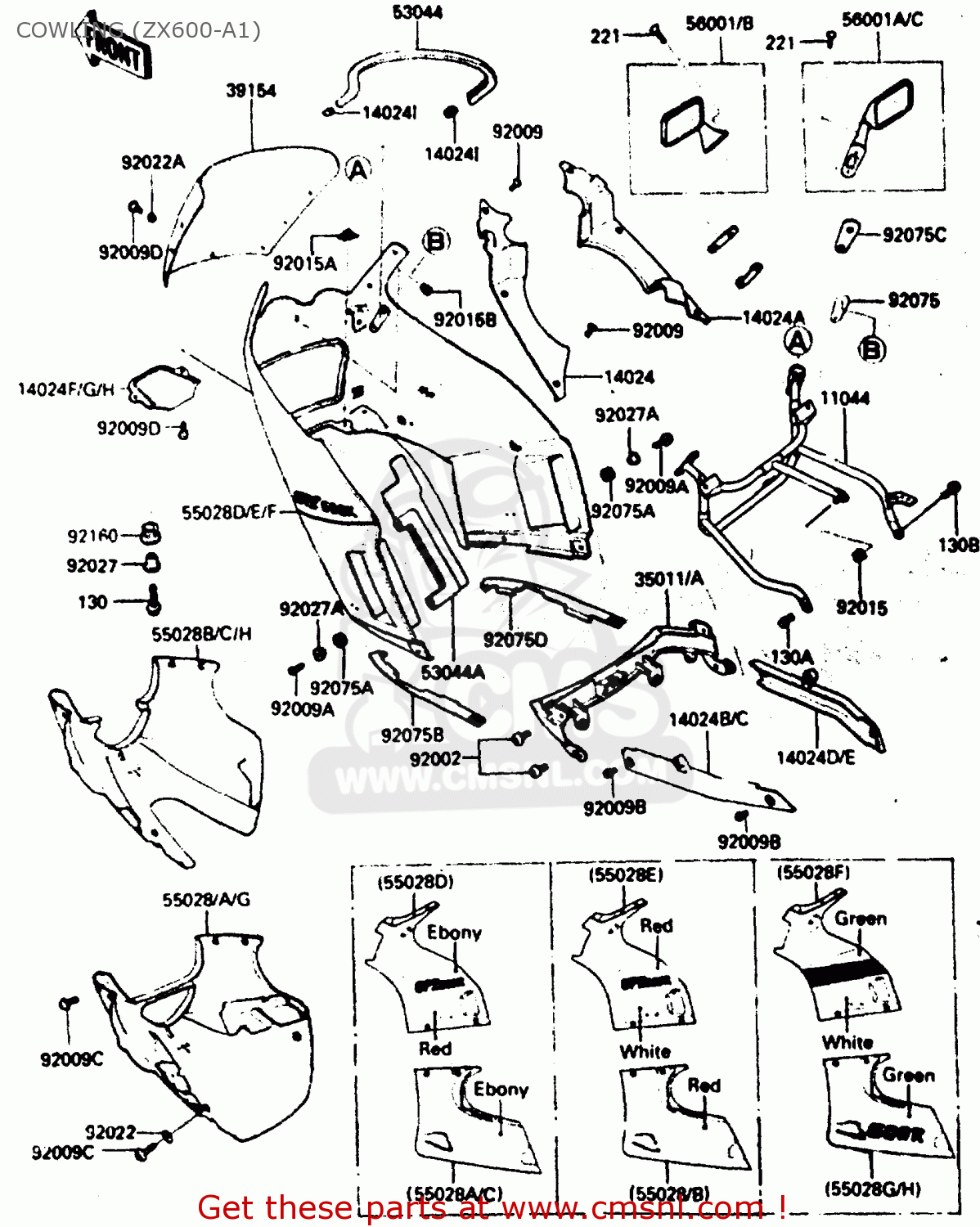

COWLING (ZX600-A1)

ref

part #

description

quantity

11044

110441076
ref: 11044

BRACKET,COWLING,UPP

€ 189.00

14024

140251726
ref: 14024

COVER,UPP,INNER,LH

€ 48.00

14024A

140251727
ref: 14024A

COVER,UPP,INNER,RH

€ 34.00

14024B

140251732J5
ref: 14024B
EU, FR, IT, WG

COVER,SIDE PANEL,LH,B

€ 93.00

14024C

140251732P1
ref: 14024C

COVER,SIDE PANEL,LH,S

€ 66.50

14024D

140251733J5
ref: 14024D
EU, FR, IT, WG

COVER,SIDE PANEL,RH,B

€ 93.00

14024E

140251733P1
ref: 14024E

COVER,SIDE PANEL,RH,S

€ 66.50

14024F

1402517356C
ref: 14024F

COVER,HEAD LAMP BULB,

€ 36.50

14024G

1402517356L
ref: 14024G

COVER,HEAD LAMP BULB,

€ 33.50

14024H

1402517356W
ref: 14024H
EU, FR, IT, WG

COVER,HEAD LAMP BLUB,

€ 23.00

14024I

140251756
ref: 14024I

COVER,TRIM END

€ 4.50

35011

350111246J5
ref: 35011
EU, FR, IT, WG

STAY,COWLING,LWR,BLUE

€ 204.00

35011A

350111246P1
ref: 35011A

STAY,COWLING,LWR,SILV

€ 180.50

39154

391541063
ref: 39154

WINDSHIELD

€ 279.50

53044

530441120
ref: 53044

TRIM,WINDSHIELD

€ 20.50

53044A

530441133
ref: 53044A

TRIM,WINDSHIELD

€ 19.50

55028

550281087B1
ref: 55028
EU, FR, GR, NR, SD,

COWLING,LWR,F.RED

€ 267.50

55028A

550281087H8
ref: 55028A
E, FR, GR, NR, SD, S

COWLING,LWR,EBONY

€ 288.50

55028B

550281137B1
ref: 55028B
IT

COWLING,LWR,F.RED

€ 237.00

55028C

550281137H8
ref: 55028C
IT

COWLING,LWR,EBONY

€ 259.50

55028D

550285123J3
ref: 55028D

COWLING,UPP,EBONY/F.R

€ 682.00

55028E

550285124P9
ref: 55028E

COWLING,UPP,F.RED/P.A

€ 489.50

55028F

550285137M9
ref: 55028F
EU, FR, IT, WG

COWLING,UPP,L.GREEN/P

€ 476.50

55028G

5502851387F
ref: 55028G
EU, FR, WG

COWLING,LWR,L.GREEN

€ 193.00

55028H

5502852657F
ref: 55028H
IT

COWLING,LWR,L.GREEN

€ 259.50

56001

560011248
ref: 56001
FR, UK

MIRROR-ASSY,LH

€ 71.50

56001A

560011249
ref: 56001A
FR, UK

MIRROR-ASSY,RH

€ 71.50

56001B

560011252
ref: 56001B
EU, GR, IT, NR, SD,

MIRROR-ASSY,LH

€ 61.50

56001C

560011253
ref: 56001C
EU, GR, IT, NR, SD,

MIRROR-ASSY,RH

€ 61.50

92002

920021588
ref: 92002

BOLT

€ 4.50

92009

920091197
ref: 92009

SCREW

€ 2.50

92009A

920091251
ref: 92009A

SCREW,6X20,BLACK

€ 3.50

92009B

920091287
ref: 92009B

SCREW,6X14

€ 1.50

92009C

920091288
ref: 92009C

SCREW,6X14

€ 2.00

92009D

920091301
ref: 92009D

SCREW,5X16

€ 0.50

92015

920151183
ref: 92015

NUT,FLANGED,8MM,BLACK

€ 1.00

92015A

920151310
ref: 92015A

NUT

€ 4.00

92015B

920151343
ref: 92015B

NUT,5MM,COWLING

€ 3.00

92022

920221346
ref: 92022

WASHER,6.5X20X1.6,BLA

€ 0.50

92022A

920221521
ref: 92022A

WASHER,NYLON,5.3X11.5

€ 2.50

92027

920271134
ref: 92027

COLLAR,FUEL TANK FITT

€ 7.00

92027A

920271935
ref: 92027A

COLLAR,L=9.1,BLACK

€ 4.00

92075

920751492
ref: 92075

DAMPER,MIRROR

€ 5.00

92075A

920751634
ref: 92075A

DAMPER

€ 3.00

92075B

920751707
ref: 92075B

DAMPER,COWLING,LH

€ 10.00

92075C

920751745
ref: 92075C

DAMPER,MIRROR

€ 5.00

92075D

920751759
ref: 92075D

DAMPER,COWLING,RH

€ 11.50

92160

921601007
ref: 92160

DAMPER

€ 3.50

130

130C0625
ref: 130

BOLT-FLANGED,FLANGED,

€ 2.00

130A

130C0812
ref: 130A

BOLT-FLANGED,8X12,BLA

€ 0.50

130B

130C0816
ref: 130B

BOLT-FLANGED,8X16,BLA

€ 0.50

221

221C0630
ref: 221

SCREW-CSK-CROS,6X30

€ 1.00
