FRONT FORK
ZX600A1 1985 EUROPE UK FR GR IT NR SD

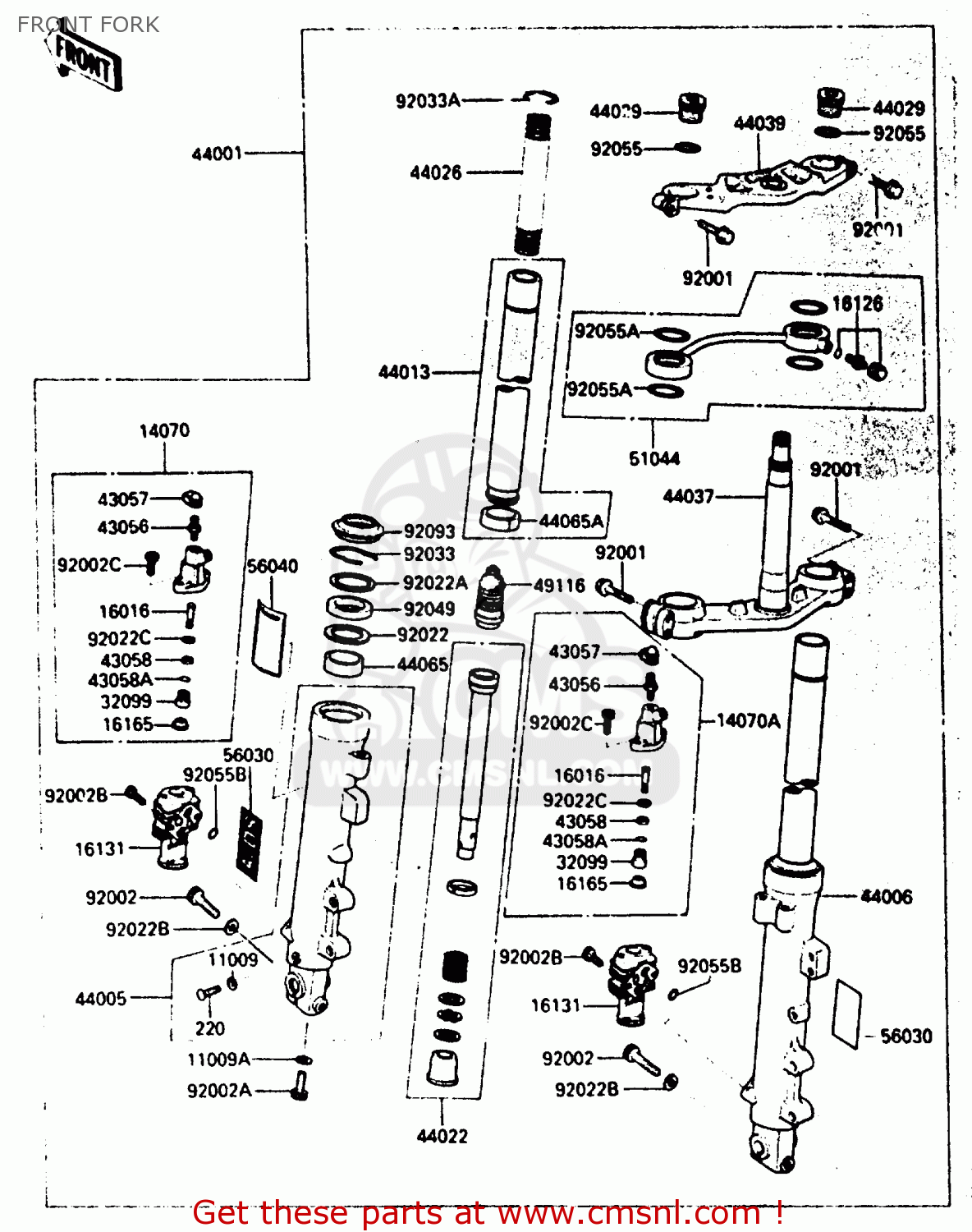

Front fork diagram ZX600A1 1985 EUROPE UK FR GR IT NR SD
FRONT FORK ZX600A1 1985 EUROPE UK FR GR IT NR SD
×
prices are in EUR
ref
part #
description
quantity
11009
44045002
ref: 11009
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
11009A
44045057
ref: 11009A
GASKET (NAS)
€ 3.00
14070
140701059
ref: 14070
BODY-BREATHER,ANTI-DI
€ 174.50
14070A
140701060
ref: 14070A
BODY-BREATHER,ANTI-DI
€ 174.50
16016
160161067
ref: 16016
PLUNGER,ANTI-DIVE
€ 23.00
16126
161261052
ref: 16126
VALVE,AIR
€ 22.00
16131
161311058
ref: 16131
BODY-VALVE,FORK,ANTI-
€ 133.00
16165
161651051
ref: 16165
SEPARATOR,ANTI-DIVE
€ 6.00
32099
320991067
ref: 32099
CASE,PLUG,ANTI-DIVE
€ 29.00
43056
43056003
ref: 43056
BREATHER-BRAKE
€ 16.50
43057
43057003
ref: 43057
CAP-BREATHER
€ 3.00
43058
430581052
ref: 43058
RING,SEAL,14X18X2.5
€ 3.50
43058A
430581053
ref: 43058A
RING,SEAL,6.2X11X3.2
€ 2.50
44001
440011580
ref: 44001
FORK-FRONT
€ 2,440.00
44005
440051232
ref: 44005
PIPE-LEFT FORK OUTER
€ 285.00
44006
440061232
ref: 44006
PIPE-RIGHT FORK OUTER
€ 243.50
44013
440131231
ref: 44013
PIPE-FORK INNER
€ 134.00
44022
440221181
ref: 44022
CYLINDER-FORK
€ 77.00
44026
440261302
ref: 44026
SPRING-FRONT FORK,K=0
€ 56.00
44029
440291121
ref: 44029
SEAT-FORK SPRING
€ 24.00
44037
440371180
ref: 44037
HOLDER-FORK UNDER
€ 195.00
44039
440391122
ref: 44039
HOLDER-FORK UPPER
€ 102.00
44085
440651051
ref: 44085
BUSHING-FRONT FORK
€ 15.00
44065A
440651058
ref: 44065A
BUSHING-FRONT FORK,IN
€ 20.00
49116
491161058
ref: 49116
VALVE-ASSY,FORK
€ 80.00
51044
510441069
ref: 51044
TUBE-ASSY
€ 73.50
56030
560301057
ref: 56030
LABEL,AVDS MARK
€ 2.50
56040
560401117
ref: 56040
LABEL-WARNING,SHOCKAB
€ 2.50
92001
920011188
ref: 92001
BOLT,8X40
€ 5.50
92002
920021316
ref: 92002
BOLT
€ 3.50
92002A
920021317
ref: 92002A
BOLT
€ 4.50
92002B
920021564
ref: 92002B
BOLT
€ 5.50
92002C
920021565
ref: 92002C
BOLT
€ 6.00
92022
920221455
ref: 92022
WASHER,FORK OUTER PIP
€ 4.50
92022A
920221524
ref: 92022A
WASHER,FORK OUTER PIP
€ 3.50
92022B
920221598
ref: 92022B
WASHER
€ 4.50
92022C
920221636
ref: 92022C
WASHER,6.5X18X1
€ 2.50
92033
920331047
ref: 92033
SNAP RING,FORK OUTER
€ 4.00
92033A
920331202
ref: 92033A
RING-SNAP
€ 4.50
92049
920491177
ref: 92049
SEAL-OIL,FORK
€ 15.00
92055
920551051
ref: 92055
ORING,FORK TOP CAP
€ 3.50
92055A
920551164
ref: 92055A
RING-O,TUBE ASSY
€ 5.50
92055B
920551201
ref: 92055B
RING-O,AND
€ 1.00
92093
920931160
ref: 92093
SEAL,FORK
€ 16.50
220
220E0408
ref: 220
SCREW-PAN HEAD,4X8
€ 2.50
