TRANSMISSION
ZX550A4 GPZ550 1987 UNITED KINGDOM FG

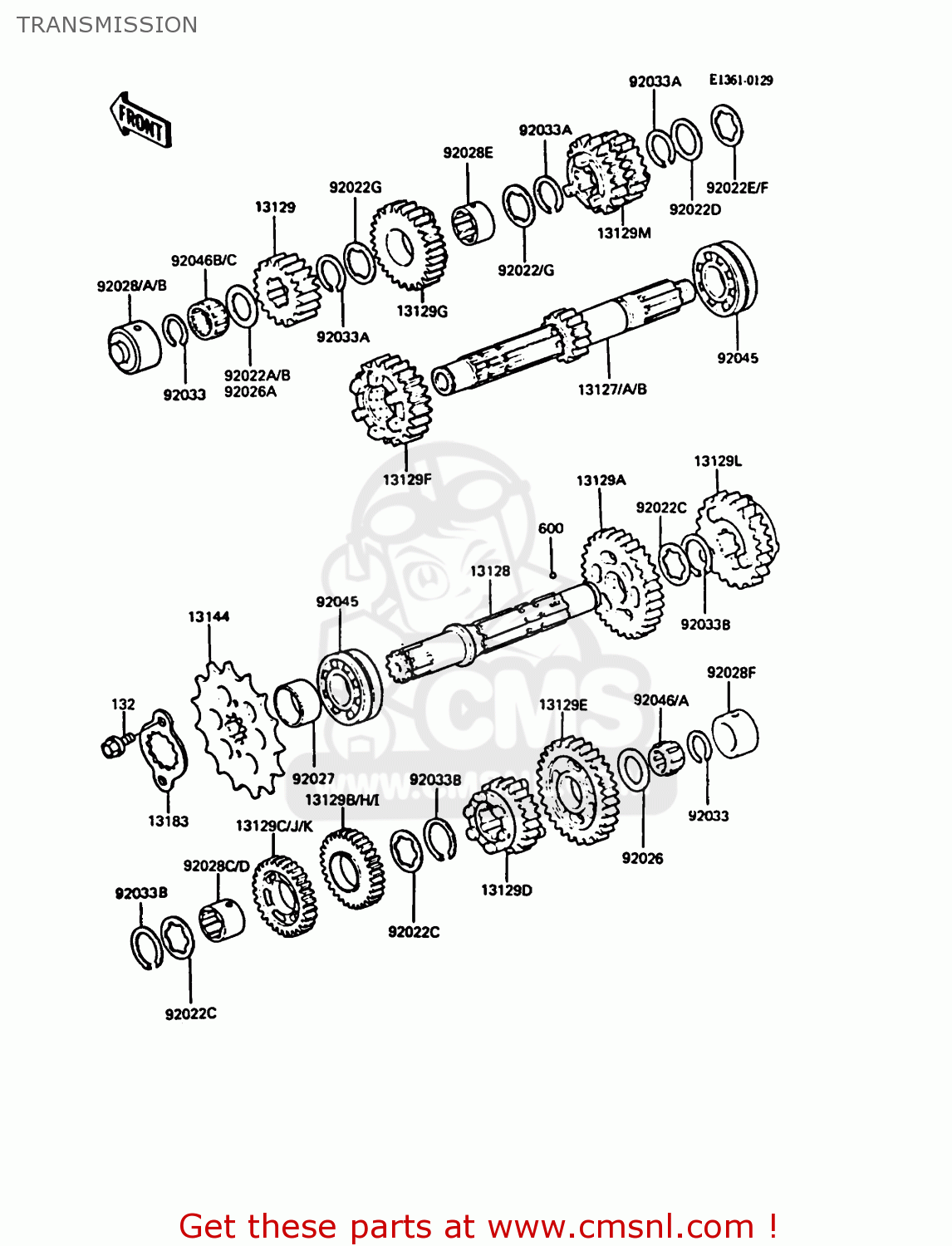

Transmission diagram ZX550A4 GPZ550 1987 UNITED KINGDOM FG
TRANSMISSION ZX550A4 GPZ550 1987 UNITED KINGDOM FG
×
prices are in EUR
ref
part #
description
quantity
13127
131271008
ref: 13127
SHAFT,DRIVE,14T
€ 265.00
13127B
131271151
ref: 13127B
SHAFT-TRANSMISSION IN
€ 190.00
13128
131281009
ref: 13128
SHAFT-TRANSMISSION OU
€ 163.00
13129
131291077
ref: 13129
2ND GEAR,DRIVE,18T
€ 79.50
13129A
131291078
ref: 13129A
2ND GEAR,OUTPUT,32T
€ 75.50
13129B
131291080
ref: 13129B
GEAR,OUTPUT 3RD,29T
€ 111.50
13129C
131291081
ref: 13129C
4TH GEAR,OUTPUT,27T
€ 101.00
13129D
131291083
ref: 13129D
GEAR,OUTPUT 5TH,25T
€ 114.50
13129E
131291564
ref: 13129E
GEAR,OUTPUT LOW,36T
€ 120.50
13129F
131291657
ref: 13129F
GEAR,INPUT 5TH,26T
€ 134.50
13129G
131291658
ref: 13129G
GEAR,INPUT TOP,27T
€ 107.00
13129I
131291659
ref: 13129I
GEAR,OUTPUT 3RD,29T
€ 44.00
13129K
131291660
ref: 13129K
GEAR,OUTPUT 4TH,27T
€ 113.50
13129L
131291662
ref: 13129L
GEAR,OUTPUT TOP,23T
€ 45.00
13129M
131291846
ref: 13129M
GEAR,INPUT 3RD&4TH,21
€ 103.00
13144
131441085
ref: 13144
SPROCKET-OUTPUT,16T
€ 25.00
13183
131691658
ref: 13183
PLATE,SPROCKET
€ 5.50
92022
920221072
ref: 92022
WASHER,TOOTHED,25.3X3
€ 2.00
92022B
92022112
ref: 92022B
WASHER,20.5X30X1,STEE
€ 6.00
92022C
920221139
ref: 92022C
WASHER,TOOTHED,28.3X3
€ 4.00
92022D
92022161
ref: 92022D
WASHER-THRUST,25MM
€ 7.00
92022F
920221861
ref: 92022F
WASHER,TOOTHED,25.3X3
€ 4.00
92022G
92024033
ref: 92022G
WASHER,TOOTHED,25.5X3
€ 4.50
92026
920261022
ref: 92026
SPACER,20.3X30X2.0
€ 3.00
92026A
920261022
ref: 92026A
SPACER,20.3X30X2.0
€ 3.00
132
132G0608
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
600
600A0500
ref: 600
BALL-STEEL,5/32
€ 0.50
92027
920271106
ref: 92027
COLLAR,25X32X23.5
€ 8.00
92028
920281186
ref: 92028
BUSHING,INPUT SHAFT
€ 27.50
92028B
920281199
ref: 92028B
BUSHING,INPUT SHAFT
€ 52.00
92028D
920281364
ref: 92028D
BUSHING,OUTPUT 3RD&4T
€ 22.00
92028E
920281552
ref: 92028E
BUSHING,INPUT TOP GEA
€ 17.50
92028F
92028180
ref: 92028F
BUSHING,OUTPUT SFT
€ 21.50
92033
92033015
ref: 92033
CIRCLIP
€ 2.50
92033A
92033026
ref: 92033A
CIRCLIP
€ 6.00
92033B
920331037
ref: 92033B
SNAP RING,25.9X1.2T
€ 3.00
92045
92045035
ref: 92045
BEARING-BALL,83993SH2
€ 66.50
92046
920461030
ref: 92046
BEARING-NEEDLE,VS20/1
€ 23.00
92046A
920461030
ref: 92046A
BEARING-NEEDLE,VS20/1
€ 23.00
92046C
920461045
ref: 92046C
BEARING-NEEDLE,20V271
€ 25.00
