BRAKE PEDAL

ZX550A4 GPZ550 1987 UNITED KINGDOM FG

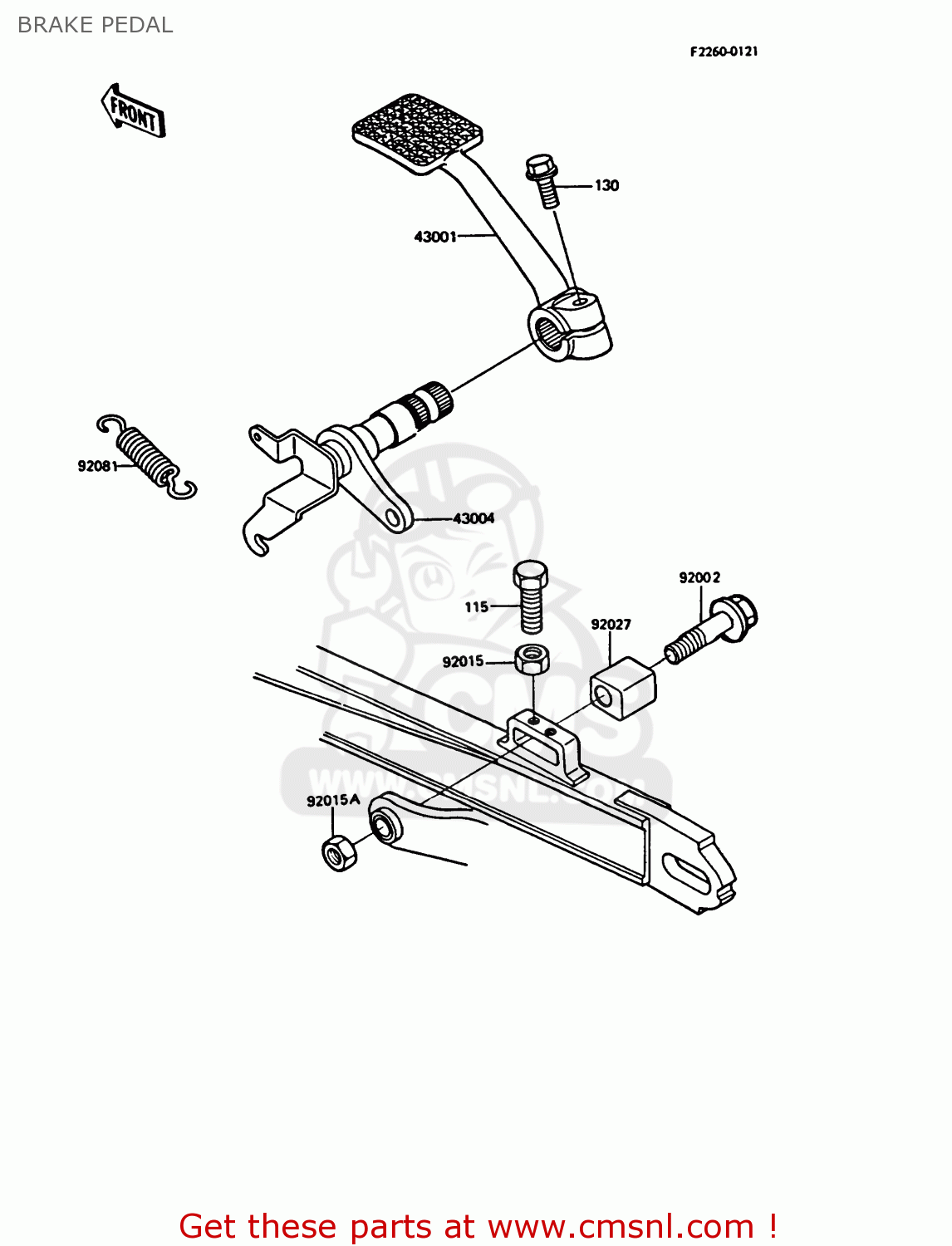

Brake pedal diagram ZX550A4 GPZ550 1987 UNITED KINGDOM FG

prices are in EUR

ref

part #

description

quantity

115

115X0816
ref: 115

BOLT-SMALL-UPSET,8X16

€ 2.00

130

130Y0825
ref: 130

BOLT-FLANGED

€ 2.50

43001

430011113
ref: 43001

LEVER-BRAKE,PEDAL

€ 52.50

43004

430041050
ref: 43004

SHAFT-BRAKE

€ 31.50

92002

920021066
ref: 92002

BOLT,FLANGED,10X41

€ 3.50

92015

920151364
ref: 92015

NUT,8MM

€ 2.50

92015A

920151376
ref: 92015A

NUT,LOCK,10MM

€ 4.50

92027

920271572
ref: 92027

COLLAR,REAR CALIPER,L

€ 10.00

92081

920811604
ref: 92081

SPRING,BRAKE PEDAL

€ 6.50
