FRONT FORK
ZX550A4 GPZ550 1987 UNITED KINGDOM FG

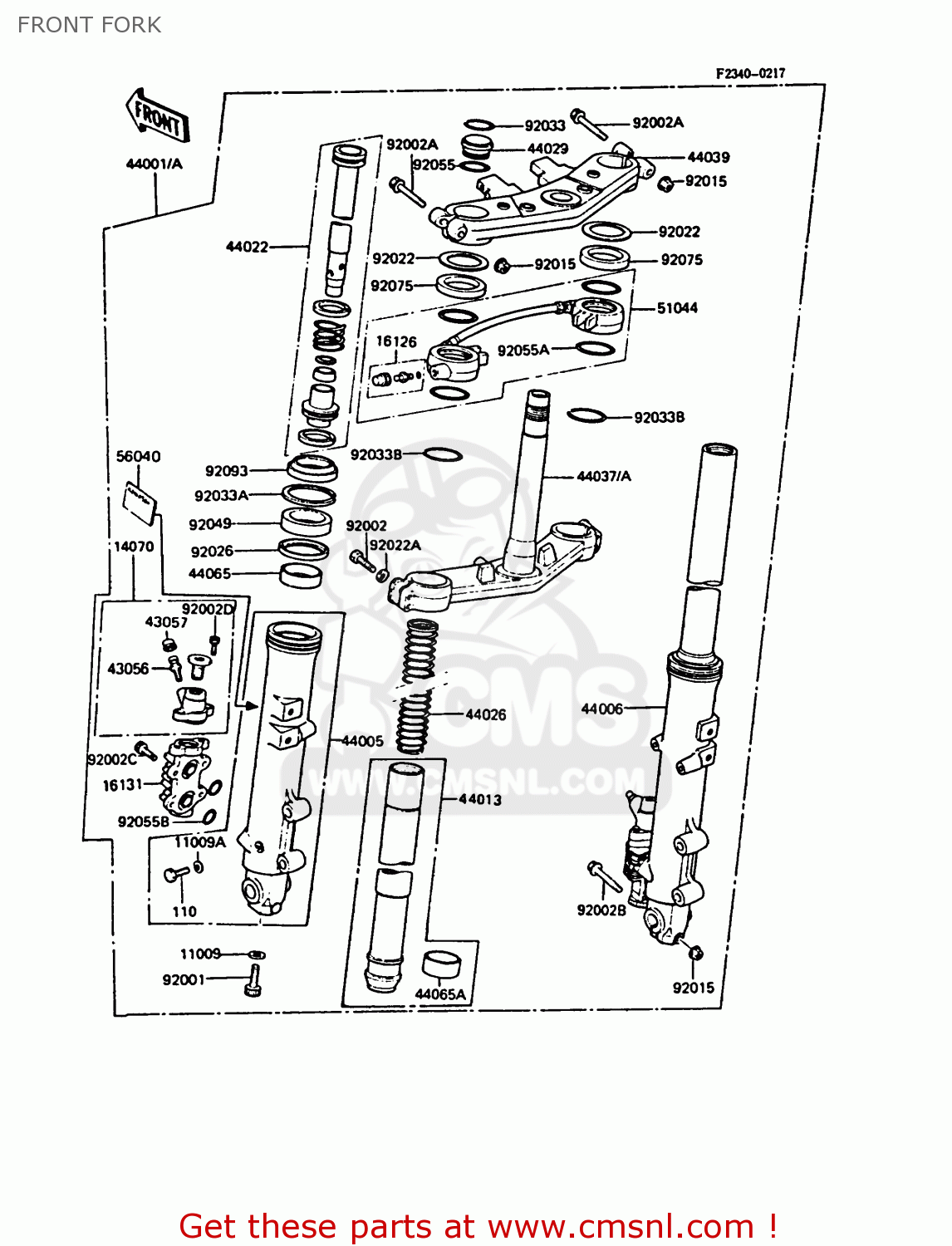

Front fork diagram ZX550A4 GPZ550 1987 UNITED KINGDOM FG
FRONT FORK ZX550A4 GPZ550 1987 UNITED KINGDOM FG
×
prices are in EUR
ref
part #
description
quantity
11009
44045051
ref: 11009
GASKET,FORK CYLINDER (NAS)
€ 4.00
11009A
44045052
ref: 11009A
GASKET,DRAIN PLUG (NAS)
€ 6.00
14070
140701053
ref: 14070
BODY-BREATHER,ANTI-DI
€ 103.50
16126
161261043
ref: 16126
VALVE,AIR
€ 24.50
16131
161311056
ref: 16131
BODY-VALVE,FORK,ANTI-
€ 66.50
43056
430561053
ref: 43056
BREATHER-BRAKE
€ 9.00
43057
430571051
ref: 43057
CAP-BREATHER
€ 3.50
44001
440011514
ref: 44001
UK
FORK-FRONT
€ 2,405.50
44001A
440011515
ref: 44001A
FG
FORK-FRONT
€ 2,405.50
44005
440051214
ref: 44005
PIPE-LEFT FORK OUTER
€ 176.00
44006
440061213
ref: 44006
PIPE-RIGHT FORK OUTER
€ 223.50
44013
440131217
ref: 44013
PIPE-FORK INNER
€ 124.00
44022
440221165
ref: 44022
CYLINDER-FORK
€ 81.00
44026
440261274
ref: 44026
SPRING-FRONT FORK
€ 51.00
44029
440291006
ref: 44029
SEAT-FORK SPRING
€ 9.50
44037
440371114
ref: 44037
UK
HOLDER-FORK UNDER
€ 202.00
44037A
440371161
ref: 44037A
FG
HOLDER-FORK UNDER
€ 202.00
44039
440391107
ref: 44039
HOLDER-FORK UPPER
€ 96.00
44065
440651020
ref: 44065
BUSHING-FRONT FORK
€ 13.00
44065A
440651054
ref: 44065A
BUSHING-FRONT FORK,IN
€ 13.00
51044
510441055
ref: 51044
TUBE-ASSY,FRONT FORK
€ 117.50
56040
560401033
ref: 56040
LABEL-WARNING
€ 2.50
92001
44041078
ref: 92001
BOLT, FORK CYLINDER
€ 6.50
92002
920021156
ref: 92002
BOLT,8X40
€ 4.00
92002A
920021158
ref: 92002A
BOLT,FLANGED,8X55
€ 6.00
92002B
920021159
ref: 92002B
BOLT,FLANGED,8X50
€ 4.00
92002C
920021189
ref: 92002C
BOLT,SOCKET,6X15
€ 3.50
92002D
920021190
ref: 92002D
BOLT,SOCKET,5X10
€ 2.50
110
110C0608
ref: 110
BOLT
€ 0.50
92015
920151408
ref: 92015
NUT,FLANGED,8MM
€ 1.00
92022
920221486
ref: 92022
WASHER
€ 5.50
92022A
920221552
ref: 92022A
WASHER,SPRING,8MM
€ 2.50
92026
920261108
ref: 92026
SPACER
€ 13.50
92033
920331023
ref: 92033
CIRCLIP
€ 3.00
92033A
920331055
ref: 92033A
RING,SNAP
€ 4.00
92033B
920331155
ref: 92033B
RING-SNAP
€ 3.50
92049
920491089
ref: 92049
SEAL-OIL
€ 25.50
92055
920551034
ref: 92055
RING-O
€ 5.00
92055A
920551129
ref: 92055A
RING-O
€ 3.00
92055B
920551219
ref: 92055B
RING-O
€ 1.00
92075
920751623
ref: 92075
DAMPER,FORK
€ 3.00
92093
920931154
ref: 92093
SEAL
€ 19.50
