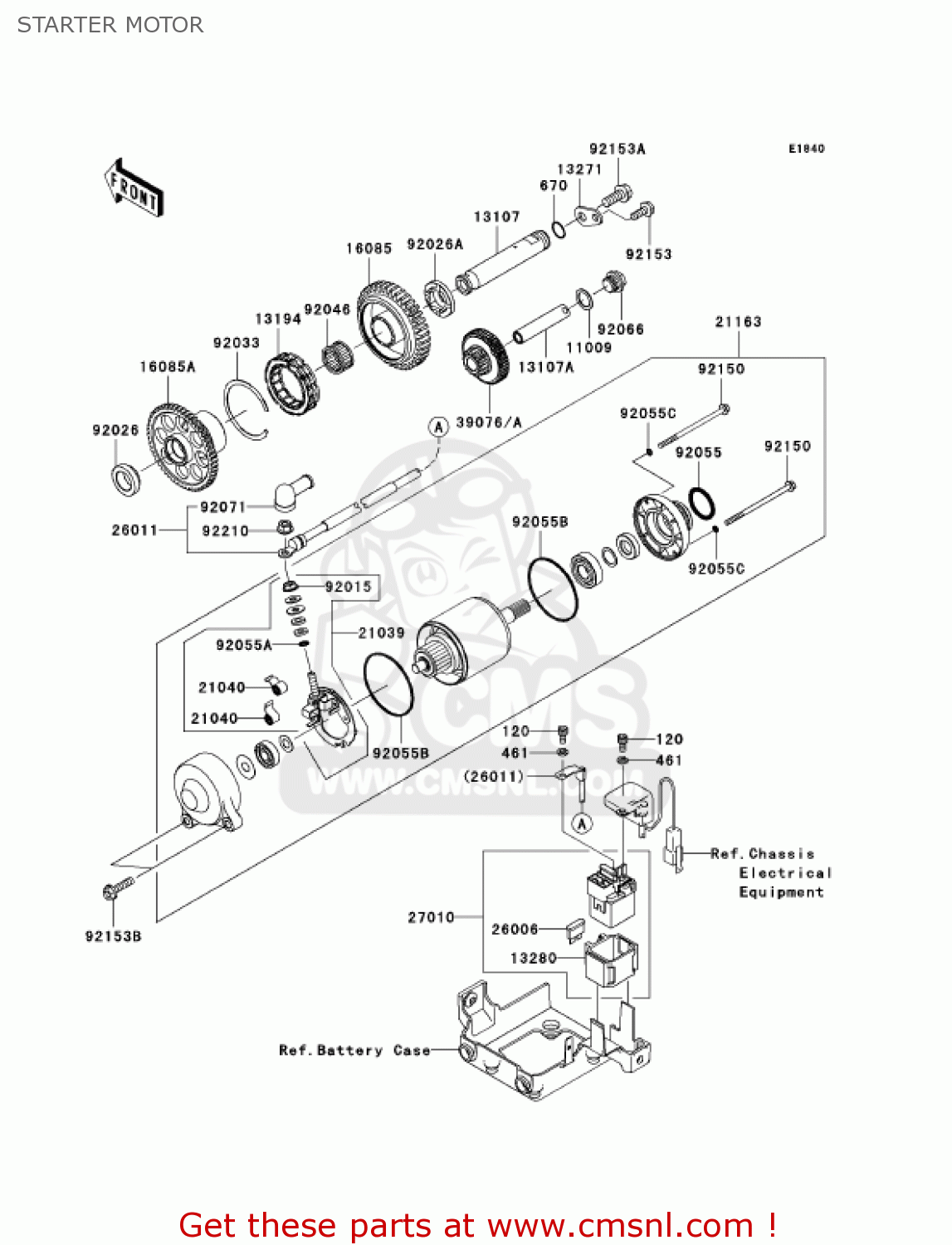

STARTER MOTOR

ref

part #

description

quantity

120

120CA0510
ref: 120

BOLT-SOCKET,5X10

€ 1.00

461

461DA0500
ref: 461

WASHER-SPRING

€ 0.50

670

670D2014
ref: 670

O RING,14MM

€ 3.50

11009

110091238
ref: 11009

GASKET,TENSIONER (NAS)

€ 2.50

13107

131070110
ref: 13107

SHAFT

€ 55.00

13107A

131070136
ref: 13107A

SHAFT

€ 19.00

13194

131943704
ref: 13194

CLUTCH-ONEWAY

€ 81.50

13271

132710845
ref: 13271

PLATE

€ 3.50

13280

132801263
ref: 13280

HOLDER

€ 9.00

16085

160850080
ref: 16085

GEAR

€ 114.50

16085A

160850081
ref: 16085A

GEAR

€ 134.00

21039

210391066
ref: 21039

BRUSH

€ 27.50

21040

210401057
ref: 21040

SPRING-BRUSH

€ 5.50

21163

211630031
ref: 21163

STARTER-ELECTRIC

€ 639.00

26006

260061006
ref: 26006

FUSE,30A-G

€ 3.00

26011

260110122
ref: 26011

WIRE-LEAD

€ 36.50

27010

270101446
ref: 27010

SWITCH,MAGNETIC

€ 116.50

39076

390760007
ref: 39076

LIMITER

€ 119.50

92015

920151476
ref: 92015

NUT,6MM

€ 2.50

92026

920260080
ref: 92026

SPACER,LH

€ 7.50

92026A

920260081
ref: 92026A

SPACER,RH

€ 24.50

92033

920333731
ref: 92033

RING-SNAP

€ 4.00

92046

920461288
ref: 92046

BEARING-NEEDLE

€ 16.00

92055

920551276
ref: 92055

RING-O

€ 6.50

92055A

920551370
ref: 92055A

RING-O,4.5X2.0

€ 3.00

92055B

920551550
ref: 92055B

RING-O

€ 6.00

92055C

920551551
ref: 92055C

RING-O

€ 2.50

92066

920661273
ref: 92066

PLUG,14X8

€ 5.50

92071

920710024
ref: 92071

GROMMET

€ 7.50

92150

921501969
ref: 92150

BOLT

€ 4.00

92153

921531551
ref: 92153

BOLT,FLANGED,6X16

€ 1.50

92153A

921531554
ref: 92153A

BOLT,FLANGED,8X20

€ 1.50

92153B

921531592
ref: 92153B

BOLT,FLANGED,6X25

€ 1.50

92210

922100241
ref: 92210

NUT,6X1.0

€ 1.50
