CRANKSHAFT/PISTON(S)

ZX1400A6F NINJA ZX14 2006 USA CALIFORNIA CANADA

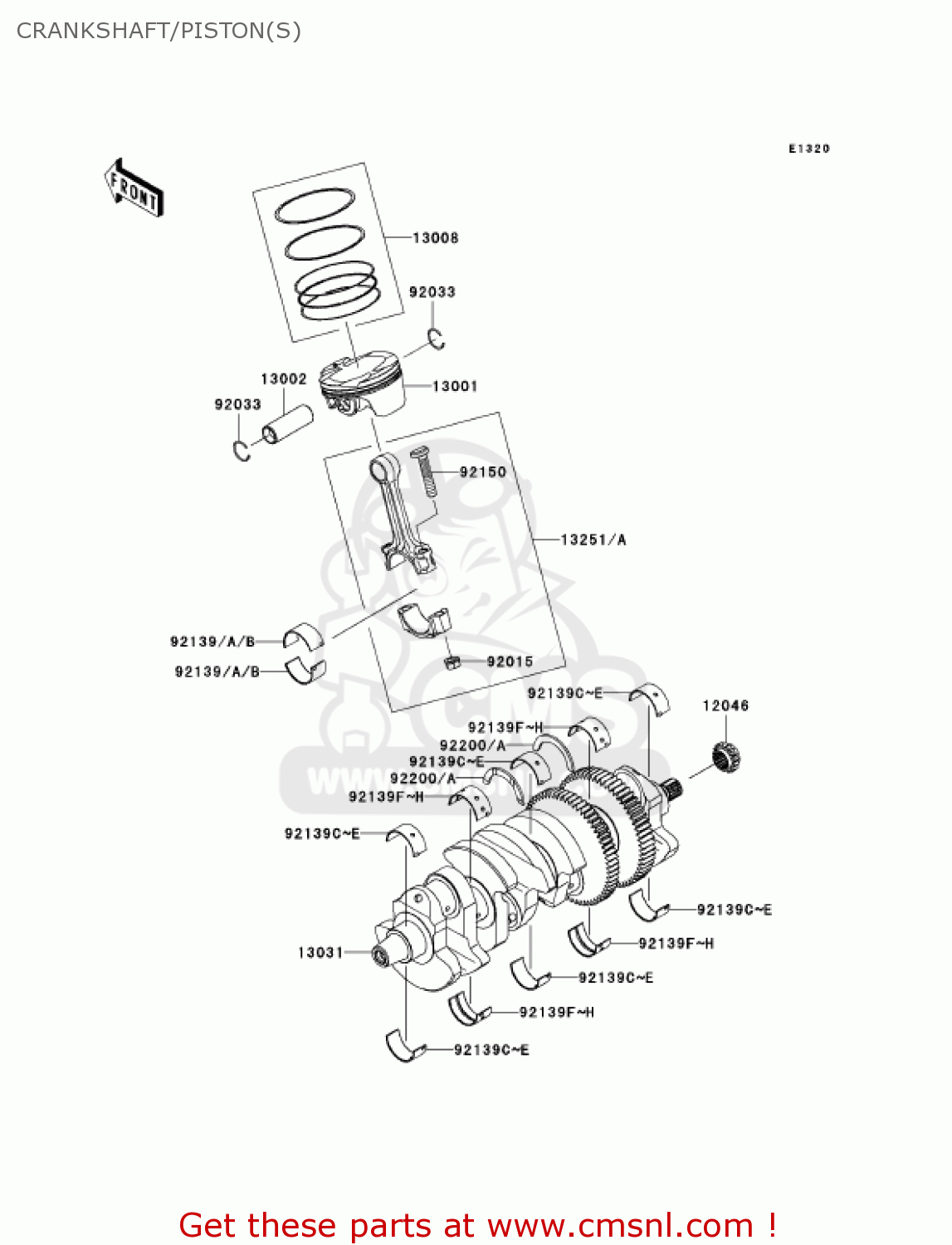

Crankshaft/piston(s) diagram ZX1400A6F NINJA ZX14 2006 USA CALIFORNIA CANADA

CRANKSHAFT/PISTON(S) ZX1400A6F NINJA ZX14 2006 USA CALIFORNIA CANADA
CRANKSHAFT/PISTON(S) ZX1400A6F NINJA ZX14 2006 USA CALIFORNIA CANADA
CRANKSHAFT/PISTON(S) ZX1400A6F NINJA ZX14 2006 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
12046
120460052
ref: 12046
SPROCKET,17T
120460052
€ 40.50
13001
130010084
ref: 13001
PISTON-ENGINE
130010084
€ 139.50
13002
130020010
ref: 13002
PIN-PISTON
€ 25.50
13008
130080027
ref: 13008
RING-SET-PISTON
130080027
€ 50.50
13031
130310056
ref: 13031
CRANKSHAFT-COMP
€ 1,495.50
13251
132510022JJ
ref: 13251
ROD-ASSY-CONNECTING,J
132510022JJ
€ 204.50
13251A
132510022KK
ref: 13251A
ROD-ASSY-CONNECTING,K
132510022KK
€ 204.50
92015
920151559
ref: 92015
NUT,CONNECTING ROD
920151559
€ 4.00
92033
920331207
ref: 92033
RING-SNAP
920331207
€ 1.50
92139
921390129
ref: 92139
BUSHING,CON-ROD,BLUE
921390129
€ 17.00
92139A
921390130
ref: 92139A
BUSHING,CON-ROD,BLACK
921390130
€ 17.00
92139B
921390131
ref: 92139B
BUSHING,CON-ROD,BROWN
921390131
€ 17.00
92139C
921390132
ref: 92139C
BUSHING,CRANK #1&#3&#
921390132
€ 18.00
92139D
921390133
ref: 92139D
BUSHING,CRANK #1&#3&#
921390133
€ 16.50
92139E
921390134
ref: 92139E
BUSHING,CRANK #1&#3&#
921390134
€ 18.00
92139F
921390135
ref: 92139F
BUSHING,CRANK #2&#4,B
921390135
€ 18.00
92139G
921390136
ref: 92139G
BUSHING,CRANK #2&#4,B
921390136
€ 18.00
92139H
921390137
ref: 92139H
BUSHING,CRANK #2&#4,B
921390137
€ 18.00
92150
921501362
ref: 92150
BOLT,CONNECTING ROD,9
921501362
€ 12.00
92200
922000331
ref: 92200
WASHER
922000331
€ 24.50
92200A
922000332
ref: 92200A
WASHER,T=4.0
922000332
€ 27.00
