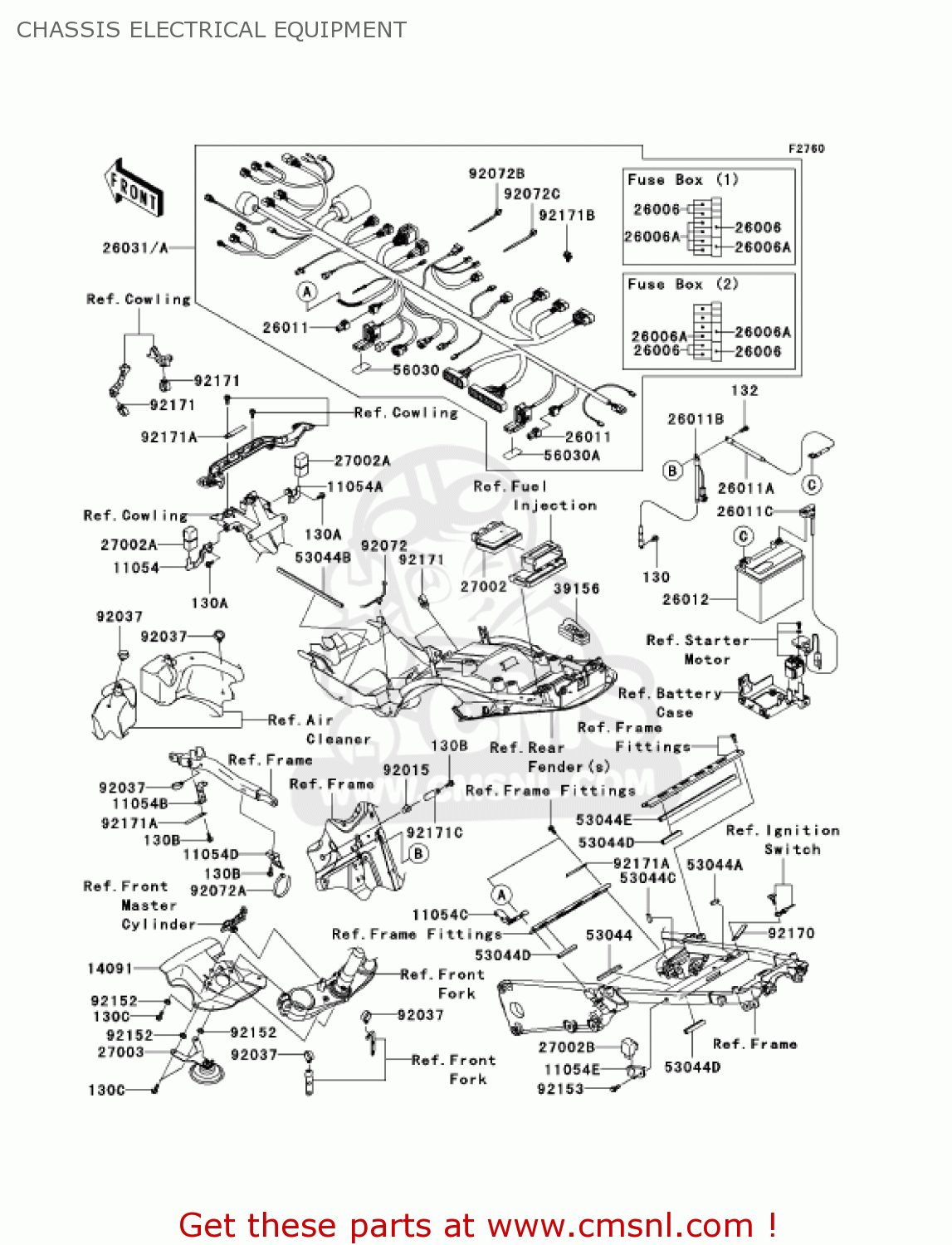

CHASSIS ELECTRICAL EQUIPMENT

ref

part #

description

quantity

11054

110540497
ref: 11054

BRACKET,RELAY,LH

€ 11.00

11054A

110540498
ref: 11054A

BRACKET,RELAY,RH

€ 11.00

11054B

110540551
ref: 11054B

BRACKET,HARNESS

€ 6.50

11054C

110540676
ref: 11054C

BRACKET,HARNESS

€ 5.00

11054D

110540687
ref: 11054D

BRACKET,HARNESS

€ 7.50

11054E

110540811
ref: 11054E

BRACKET,SIGNAL LAMP R

€ 6.50

14091

140910624
ref: 14091

COVER,RADIATOR

€ 32.00

26006

260060001
ref: 26006

FUSE,15A

€ 4.00

26006A

260061078
ref: 26006A

FUSE,10A

€ 3.50

26011

260110037
ref: 26011

WIRE-LEAD

€ 9.50

26011A

260110087
ref: 26011A

WIRE-LEAD,BATTERY(-)

€ 21.00

26011B

260110093
ref: 26011B

WIRE-LEAD,BATTERY(-)

€ 22.00

26011C

260110120
ref: 26011C

WIRE-LEAD,BATTERY(+)

€ 45.00

26012

260121409
ref: 26012

BATTERY,FTZ14-BS,12V

€ 154.00

26031

260310483
ref: 26031

HARNESS,MAIN

€ 524.00

27002

270020007
ref: 27002

RELAY-ASSY

€ 112.50

27002A

270021086
ref: 27002A

RELAY-ASSY

€ 23.00

27002B

270021101
ref: 27002B

RELAY-ASSY,TURN SIGNA

€ 49.50

27003

270030036
ref: 27003

HORN

€ 61.50

39156

391560179
ref: 39156

PAD,HARNESS CLAMP

€ 5.50

53044

530440018
ref: 53044

TRIM

€ 3.00

53044A

530440021
ref: 53044A

TRIM,L=20

€ 2.00

53044B

530440022
ref: 53044B

TRIM,L=220

€ 10.00

53044C

530440025
ref: 53044C

TRIM,L=15

€ 2.00

53044D

530441249
ref: 53044D

TRIM,L=60

€ 4.50

53044E

530441265
ref: 53044E

TRIM,AIR DUCT COVER

€ 8.00

56030

560300110
ref: 56030

LABEL,FUSE BOX

€ 2.50

56030A

560300112
ref: 56030A

LABEL,FUSE BOX

€ 3.00

92015

920151700A
ref: 92015

NUT

€ 5.50

92037

920371827
ref: 92037

CLAMP,HOSE

€ 5.00

92072

920720066
ref: 92072

BAND

€ 2.00

92072A

920721293
ref: 92072A

BAND

€ 6.50

92072B

920721392
ref: 92072B

BAND

€ 2.00

92072C

920721414
ref: 92072C

BAND

€ 2.00

92152

921520445
ref: 92152

COLLAR,6.5X10X5.6

€ 3.50

92153

921531672
ref: 92153

BOLT,6X20

€ 2.50

92170

921701925
ref: 92170

CLAMP

€ 2.00

92171

921710068
ref: 92171

CLAMP,CLIP,DIA=20

€ 2.00

92171A

921710652
ref: 92171A

CLAMP,L=60

€ 1.50

130

130BA0610
ref: 130

BOLT-FLANGED,6X10

€ 0.50

130A

130BA0614
ref: 130A

BOLT-FLANGED,6X14

€ 0.50

130B

130BA0616
ref: 130B

BOLT-FLANGED,6X16

€ 0.50

130C

130BA0618
ref: 130C

BOLT-FLANGED,6X18

€ 1.00

132

132BA0616
ref: 132

BOLT-FLANGED-SMALL,6X

€ 1.00

92171B

921710741
ref: 92171B

CLAMP

€ 8.00

92171C

921710779
ref: 92171C

CLAMP

€ 4.50

all assemblies
