SWINGARM

ZX1200C2 ZZR1200 2003 USA CALIFORNIA CANADA

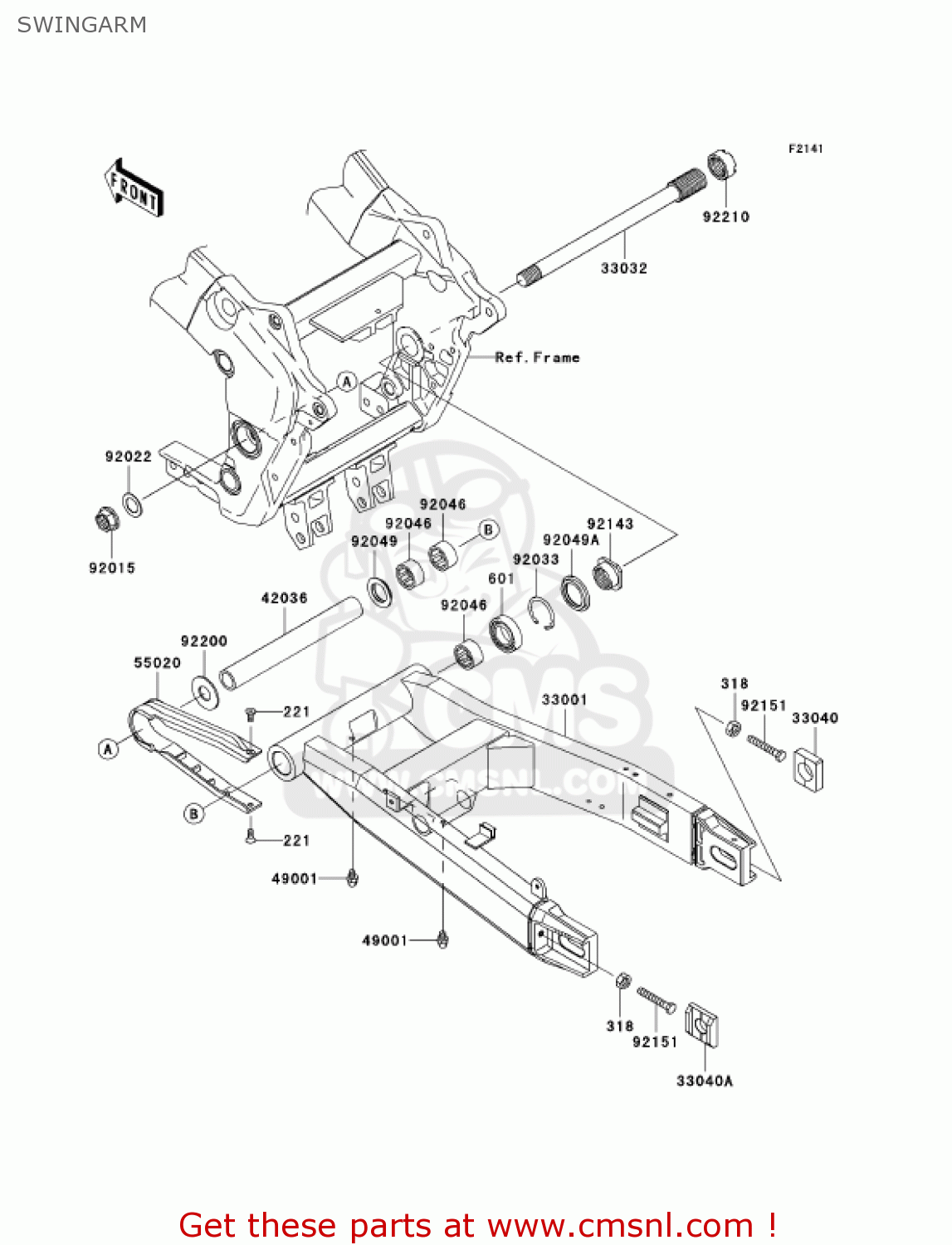

Swingarm diagram ZX1200C2 ZZR1200 2003 USA CALIFORNIA CANADA

SWINGARM ZX1200C2 ZZR1200 2003 USA CALIFORNIA CANADA
SWINGARM ZX1200C2 ZZR1200 2003 USA CALIFORNIA CANADA
SWINGARM ZX1200C2 ZZR1200 2003 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
221
221C0508
ref: 221
SCREW-CSK-CROS,5X8
221C0508
€ 2.50
318
318G0800
ref: 318
NUT-HEX-SMALL,8MM
318G0800
€ 1.00
601
601A6004
ref: 601
BEARING-BALL,#6004
601A6004
€ 13.00
33001
330011624458
ref: 33001
ARM-COMP-SWING,P.SILV
€ 1,257.00
33032
330321201
ref: 33032
SHAFT-SWING ARM
€ 132.50
33040
330401109
ref: 33040
ADJUSTER-CHAIN
330401109
€ 13.00
33040A
330401191
ref: 33040A
ADJUSTER-CHAIN
€ 22.50
42036
420361372
ref: 42036
SLEEVE,SWING ARM,L=23
€ 56.00
49001
490010001
ref: 49001
NIPPLE-GREASE
490010001
€ 2.00
55020
550201786
ref: 55020
GUARD,CHAIN
550201786
€ 50.50
92015
920151724
ref: 92015
NUT,FLANGED,20MM
920151724
€ 10.50
92022
920221280
ref: 92022
WASHER,THRUST,20.5MM
920221280
€ 2.50
92033
920331041
ref: 92033
CIRCLIP,42MM
920331041
€ 4.00
92046
920461111
ref: 92046
BEARING-NEEDLE,BM2817
920461111
€ 21.50
92049
920491181
ref: 92049
SEAL-OIL
920491181
€ 7.50
92049A
920491380
ref: 92049A
SEAL-OIL,MHA 35 42 5.
920491380
€ 8.50
92143
921431973
ref: 92143
COLLAR,SWING ARM PIVO
€ 22.50
92151
921511578
ref: 92151
BOLT,8X55
€ 1.50
92200
922001167
ref: 92200
WASHER,20.3X48X2.3
922001167
€ 8.00
92210
922101347
ref: 92210
NUT,28X1.0
922101347
€ 15.00
