REAR WHEEL/CHAIN

ZX1200C2 ZZR1200 2003 USA CALIFORNIA CANADA

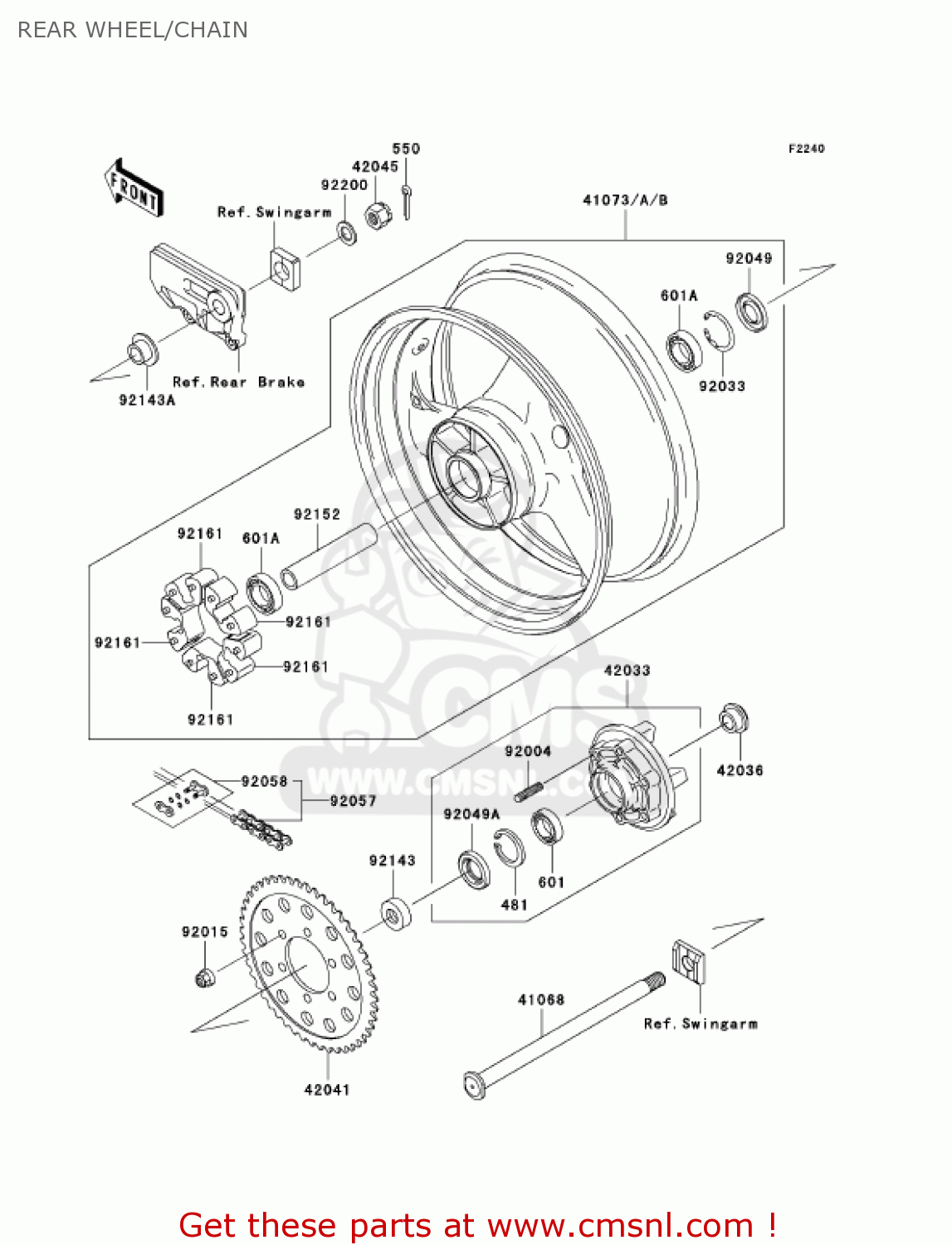

Rear wheel/chain diagram ZX1200C2 ZZR1200 2003 USA CALIFORNIA CANADA

REAR WHEEL/CHAIN ZX1200C2 ZZR1200 2003 USA CALIFORNIA CANADA
REAR WHEEL/CHAIN ZX1200C2 ZZR1200 2003 USA CALIFORNIA CANADA
REAR WHEEL/CHAIN ZX1200C2 ZZR1200 2003 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
481
481J5500
ref: 481
CIRCLIP
€ 6.50
550
550D4035
ref: 550
PIN-COTTER,4.0X35
550D4035
€ 1.00
601
601B6006G
ref: 601
BEARING-BALL,#6006G
601B6006G
€ 27.50
601A
601B6304UU
ref: 601A
BEARING-BALL,#6304UUC
601B6304UU
€ 34.50
41068
410681447
ref: 41068
AXLE,FR
€ 92.50
41073
410731669R2
ref: 41073
[CA,US
WHEEL-ASSY,RR,BLACK
€ 936.50
41073A
410731669V5
ref: 41073A
[CN]
WHEEL-ASSY,RR,SILVER
€ 979.00
41073B
410731669457
ref: 41073B
[CN]
WHEEL-ASSY,RR,C.GOLD
€ 979.00
42033
420331203
ref: 42033
COUPLING-ASSY,RR HUB
€ 282.00
42036
420361366
ref: 42036
SLEEVE,RR HUB COUPLIN
420361366
€ 16.50
42041
420411417
ref: 42041
SPROCKET-HUB,44T
420411417
€ 56.00
42045
42045018
ref: 42045
NUT,18MM
42045018
€ 7.50
92004
920041275
ref: 92004
STUD
920041275
€ 6.50
92015
920151335
ref: 92015
NUT,FLANGED,10MM
920151335
€ 1.50
92033
920331043
ref: 92033
RING,SNAP,56.2M/M
920331043
€ 6.00
92049
920491061
ref: 92049
SEAL-OIL,28X52X5
920491061
€ 13.00
92049A
920491263
ref: 92049A
SEAL-OIL,PJN40556
920491263
€ 12.50
92057
920570005
ref: 92057
CHAIN,DRIVE,EK50ZVX2X
€ 129.50
92058
920581104
ref: 92058
JOINT-CHAIN,DRIVE
€ 9.00
92143
921431094
ref: 92143
COLLAR,REAR AXLE,L=14
921431094
€ 20.00
92143A
921431915
ref: 92143A
COLLAR,RR AXLE,RH,L=1
921431915
€ 21.50
92152
921521319
ref: 92152
COLLAR,RR HUB,L=146
€ 28.00
92161
921611069
ref: 92161
DAMPER,SHOCK,RR HUB
921611069
€ 19.50
92200
922001489
ref: 92200
WASHER
922001489
€ 1.50
