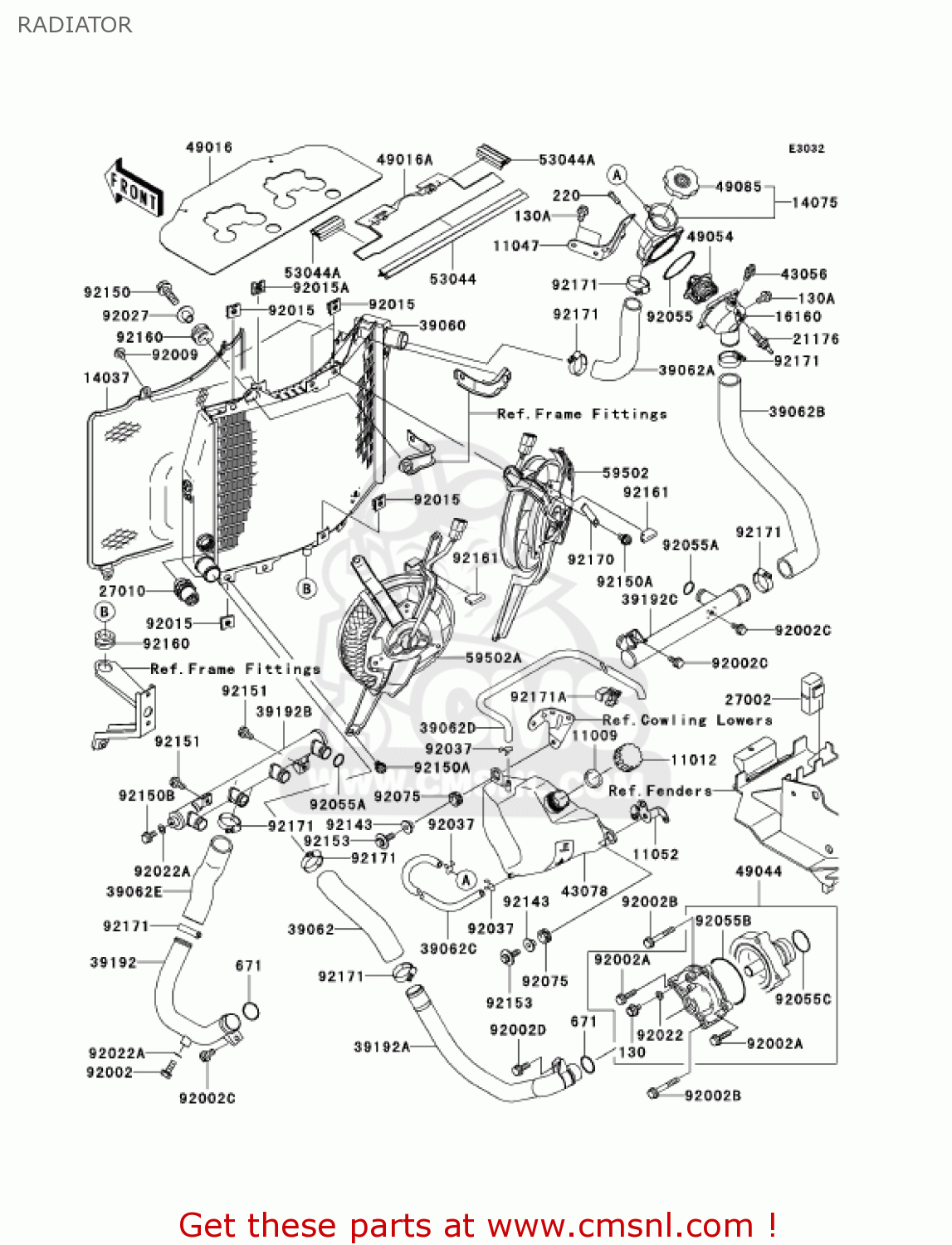

RADIATOR

ref

part #

description

quantity

11009

110091145
ref: 11009

GASKET,RESERVOIR TANK (NAS)

€ 1.00

11012

110121084
ref: 11012

CAP

€ 1.50

11047

110471887
ref: 11047

BRACKET,THERMOSTAT BO

€ 10.00

11052

110521718
ref: 11052

BRACKET,RESERVOIR

€ 5.50

14037

140371172
ref: 14037

SCREEN,RADIATOR

€ 58.50

14075

140751068
ref: 14075

CAP-ASSY

€ 134.00

16160

161601117
ref: 16160

BODY,THERMOSTAT

€ 59.00

21176

211761054
ref: 21176

SENSOR,WATER

€ 49.50

27002

270021086
ref: 27002

RELAY-ASSY

€ 23.00

27010

270101443
ref: 27010

SWITCH

€ 115.50

39060

390601181
ref: 39060

RADIATOR

€ 846.50

39062

390621377
ref: 39062

HOSE-COOLING,RADIATOR

€ 27.00

39062A

390621531
ref: 39062A

HOSE-COOLING,THERMO-R

€ 27.00

39062B

390621542
ref: 39062B

HOSE-COOLING,HEAD-THE

€ 39.50

39062C

390621894
ref: 39062C

HOSE-COOLING,THERMOST

€ 29.00

39062D

390621895
ref: 39062D

HOSE-COOLING,OVERFLOW

€ 15.00

39062E

390621897
ref: 39062E

HOSE-COOLING,PUMP-CYL

€ 24.00

39192

391921011
ref: 39192

PIPE-WATER,PUMP-CYLIN

€ 56.00

39192A

391921145
ref: 39192A

PIPE-WATER,INLET

€ 60.00

39192B

391921146
ref: 39192B

PIPE-WATER,INLET

€ 85.00

39192C

391921147
ref: 39192C

PIPE-WATER,OUTLET

€ 109.00

43056

43056003
ref: 43056

BREATHER-BRAKE

€ 16.50

43078

430781183
ref: 43078

RESERVOIR

€ 56.00

49016

490161166
ref: 49016

COVER-SEAL

€ 38.50

49016A

490161215
ref: 49016A

COVER-SEAL,HEAD COVER

€ 31.00

49044

490441080
ref: 49044

PUMP-WATER

€ 252.50

49054

490541051
ref: 49054

THERMOSTAT

€ 44.50

49085

490851067
ref: 49085

CAP-ASSY-PRESSURE

€ 39.50

53044

530441331
ref: 53044

TRIM,L=403

€ 24.50

53044A

530441332
ref: 53044A

TRIM,L=70

€ 5.00

59502

595021145
ref: 59502

FAN-ASSY,RH

€ 592.50

59502A

595021146
ref: 59502A

FAN-ASSY,LH

€ 660.00

92002

920021099
ref: 92002

BOLT,6X16

€ 1.50

92002A

920021392
ref: 92002A

BOLT,6X22

€ 3.00

92002B

920021566
ref: 92002B

BOLT,6X40

€ 3.00

92002C

920021569
ref: 92002C

BOLT,6X12

€ 2.50

92002D

920021571
ref: 92002D

BOLT,6X16

€ 4.00

92009

920091261
ref: 92009

SCREW,TAPPING,6MM

€ 2.00

92015

920151487
ref: 92015

NUT

€ 3.00

92015A

920151758
ref: 92015A

NUT

€ 4.50

130

130C0610
ref: 130

BOLT-FLANGED,6X10,BLA

€ 1.50

130A

130H0612
ref: 130A

BOLT-FLANGED,6X12

€ 0.50

220

220D0514
ref: 220

SCREW-PAN-CROS

€ 2.50

671

671B2525
ref: 671

O RING,25MM

€ 3.00

92022

920221976
ref: 92022

WASHER,6.2X6.2X1.0

€ 4.00

92022A

92022304
ref: 92022A

WASHER,PLAIN

€ 2.50

92027

920271134
ref: 92027

COLLAR,FUEL TANK FITT

€ 7.00

92037

92037147
ref: 92037

CLAMP,CHAIN OILER

€ 4.50

92055

92055112
ref: 92055

O RING, 53.5 M/M

€ 4.00

92055A

920551282
ref: 92055A

RING-O

€ 3.00

92055B

920551423
ref: 92055B

RING-O,WATER PUMP INS

€ 6.00

92055C

920551424
ref: 92055C

RING-O,33.2X2.4

€ 4.00

92075

920751634
ref: 92075

DAMPER

€ 3.00

92143

921431962
ref: 92143

COLLAR

€ 4.00

92150

921501007
ref: 92150

BOLT

€ 2.50

92150A

921501186
ref: 92150A

BOLT

€ 3.00

92150B

921501826
ref: 92150B

BOLT,6X12

€ 2.50

92151

921511997
ref: 92151

BOLT,6X12

€ 1.00

92153

921531170
ref: 92153

BOLT,M6

€ 1.00

92160

921601007
ref: 92160

DAMPER

€ 3.50

92161

921611277
ref: 92161

DAMPER,HEAT GUARD

€ 2.00

92170

921701937
ref: 92170

CLAMP

€ 1.50

92171

921710179
ref: 92171

CLAMP

€ 7.50

92171A

921711512
ref: 92171A

CLAMP,TUBE

€ 2.50
