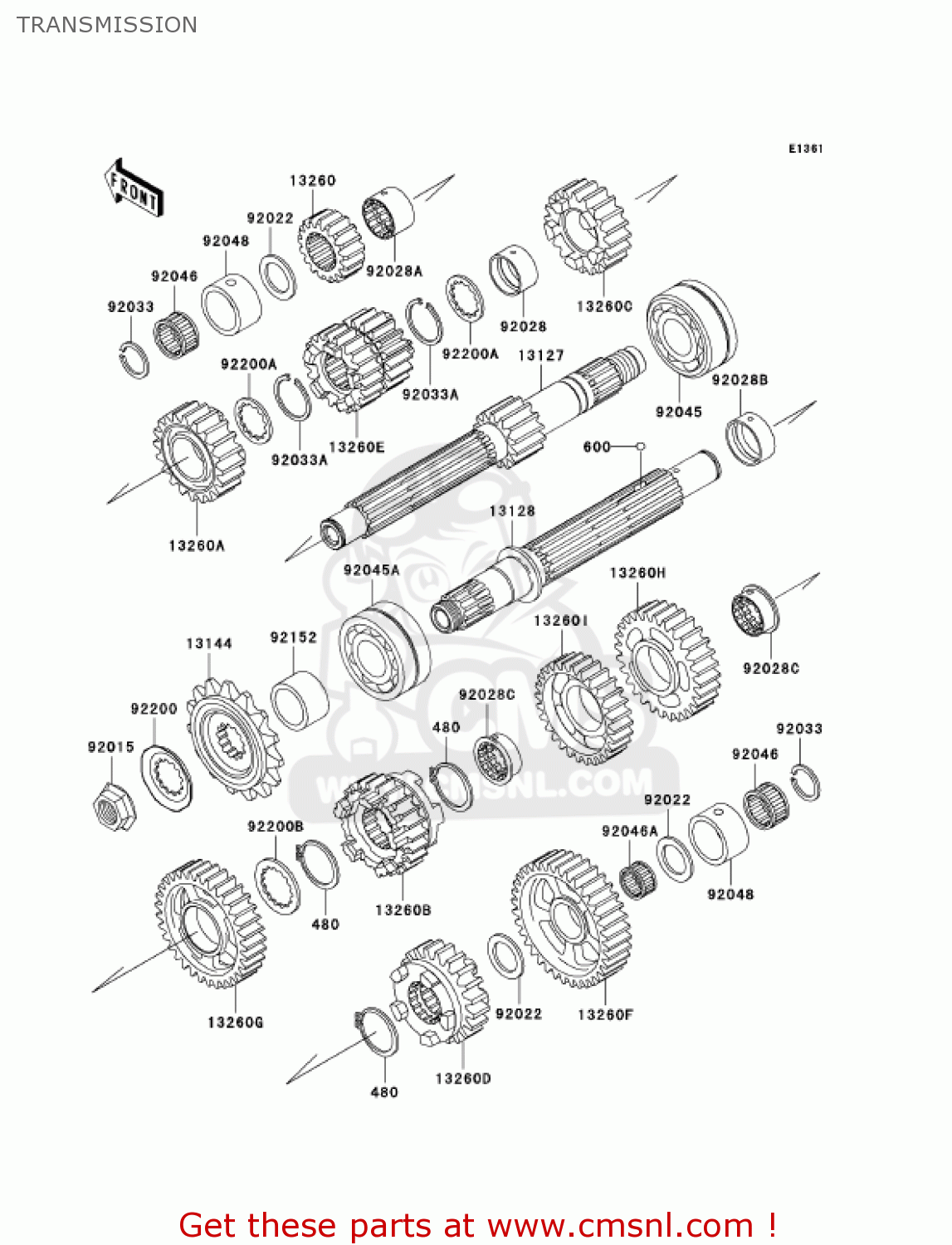

TRANSMISSION

ref

part #

description

quantity

480

480J2900
ref: 480

CIRCLIP

€ 3.50

600

600A0500
ref: 600

BALL-STEEL,5/32

€ 0.50

13127

131271274
ref: 13127

SHAFT-TRANSMISSION IN

€ 268.00

13128

131281237
ref: 13128

SHAFT-TRANSMISSION OU

€ 234.00

13144

131441308
ref: 13144

SPROCKET-OUTPUT,18T

€ 41.50

13260

132601828
ref: 13260

GEAR,INPUT 2ND,17T

€ 130.00

13260A

132601831
ref: 13260A

GEAR,INPUT TOP,30T

€ 94.00

13260B

132601837
ref: 13260B

GEAR,OUTPUT TOP,31T

€ 160.50

13260C

132601938
ref: 13260C

GEAR,INPUT 5TH,23T

€ 187.00

13260D

132601940
ref: 13260D

GEAR,OUTPUT 5TH,26T

€ 197.50

13260E

132601943
ref: 13260E

GEAR,INPUT 3RD&4TH,25

€ 210.00

13260F

132601944
ref: 13260F

GEAR,OUTPUT LOW,34T

€ 157.50

13260G

132601945
ref: 13260G

GEAR,OUTPUT 2ND,31T

€ 199.00

13260H

132601946
ref: 13260H

GEAR,OUTPUT 3RD,36T

€ 199.00

13260I

132601947
ref: 13260I

GEAR,OUTPUT 4TH,30T

€ 157.50

92015

920151210
ref: 92015

NUT,20MM

€ 12.00

92022

92022212
ref: 92022

WASHER-PLAIN,22MM

€ 6.50

92028

920281935
ref: 92028

BUSHING

€ 15.50

92028A

920281936
ref: 92028A

BUSHING

€ 17.00

92028B

920281937
ref: 92028B

BUSHING

€ 11.00

92028C

920281938
ref: 92028C

BUSHING

€ 27.00

92033

92033025
ref: 92033

CIRCLIP,25MM

€ 3.00

92033A

920331037
ref: 92033A

SNAP RING,25.9X1.2T

€ 3.00

92045

920451224
ref: 92045

BEARING-BALL,6305N2SH

€ 40.00

92045A

920451377
ref: 92045A

BEARING-BALL,TM-5206N

€ 94.50

92046

920461268
ref: 92046

BEARING-NEEDLE,K22X30

€ 20.00

92046A

920461269
ref: 92046A

BEARING-NEEDLE

€ 12.00

92048

920481105
ref: 92048

RACE

€ 25.50

92152

921521168
ref: 92152

COLLAR

€ 26.00

92200

922001234
ref: 92200

WASHER,TOOTHED,23.9X4

€ 4.00

92200A

922001240
ref: 92200A

WASHER,2ND,3RD,4TH

€ 7.00

92200B

922001277
ref: 92200B

WASHER,TOOTHED,28X30X

€ 8.00

all assemblies
